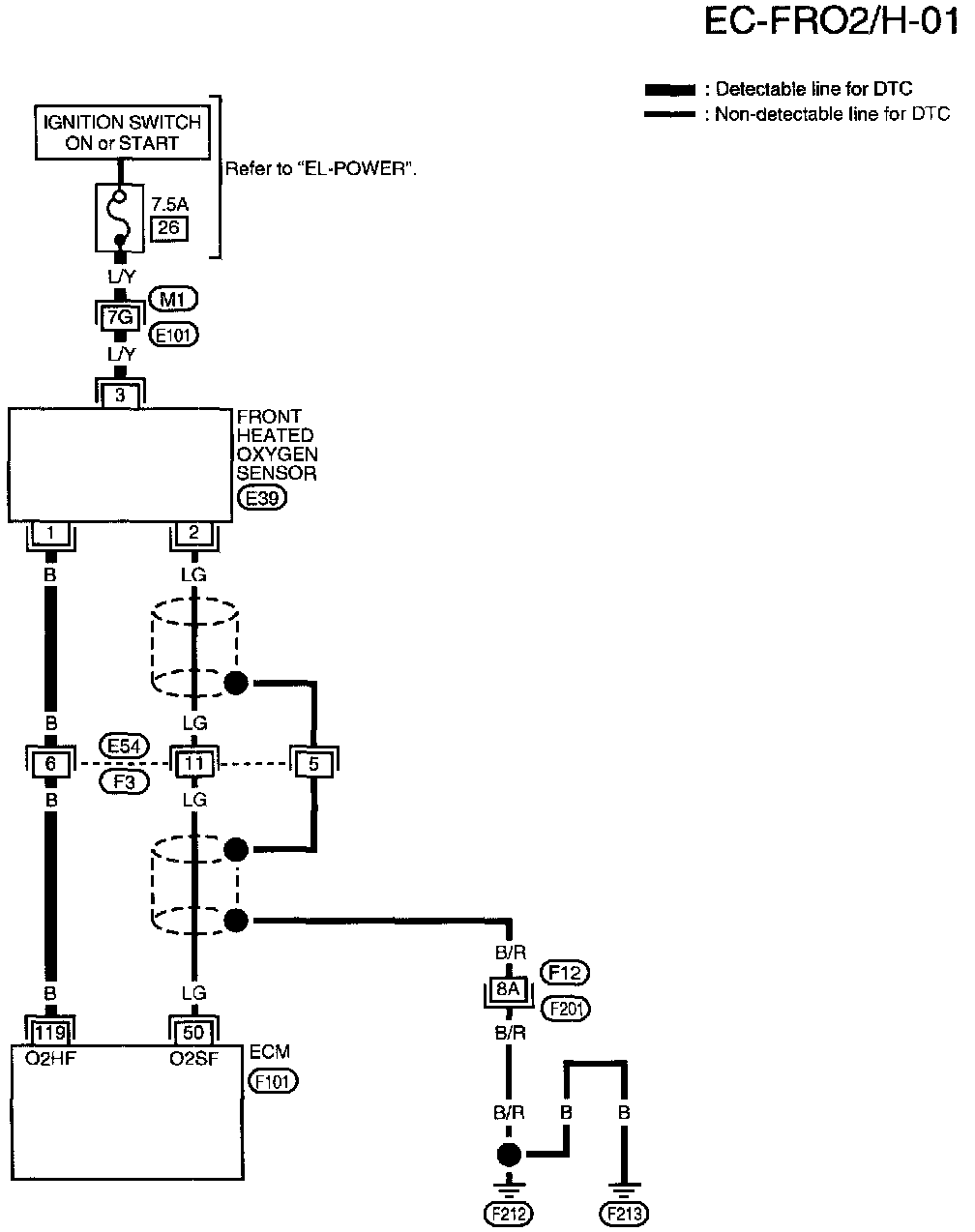

EC-FRO2/H-01

EC-FRO2/H-01

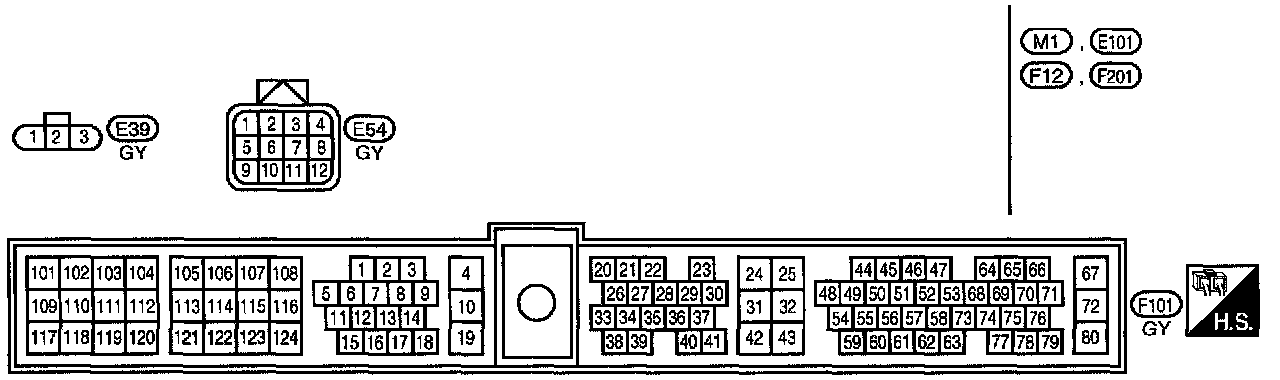

Front Heated Oxygen Sensor (Heater) Circuit Connectors

M1, M101, F12, F201 Super Multiple Junction Terminal Arrangement
