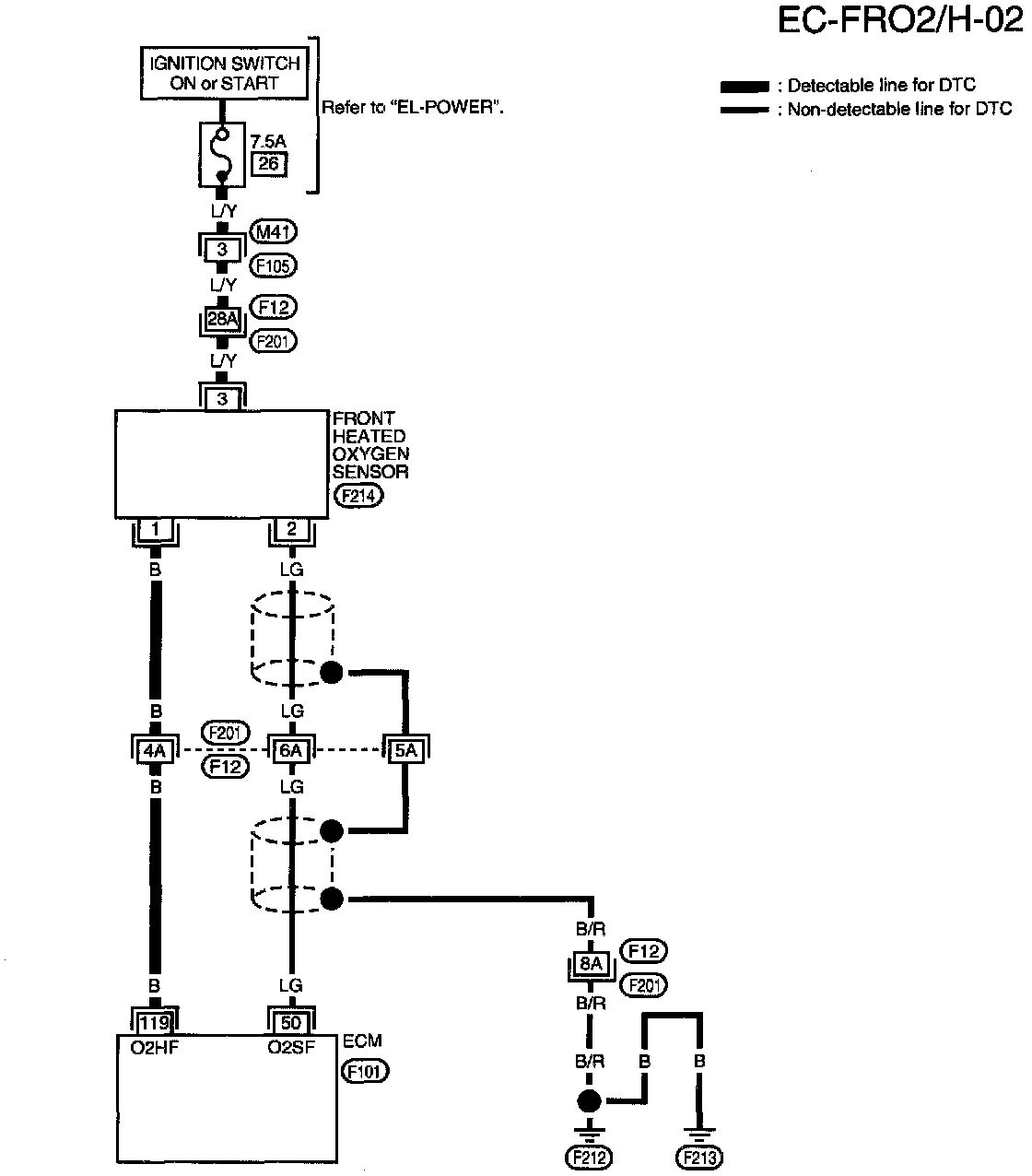

EC-FRO2/H-02





EC-FRO2/H-02

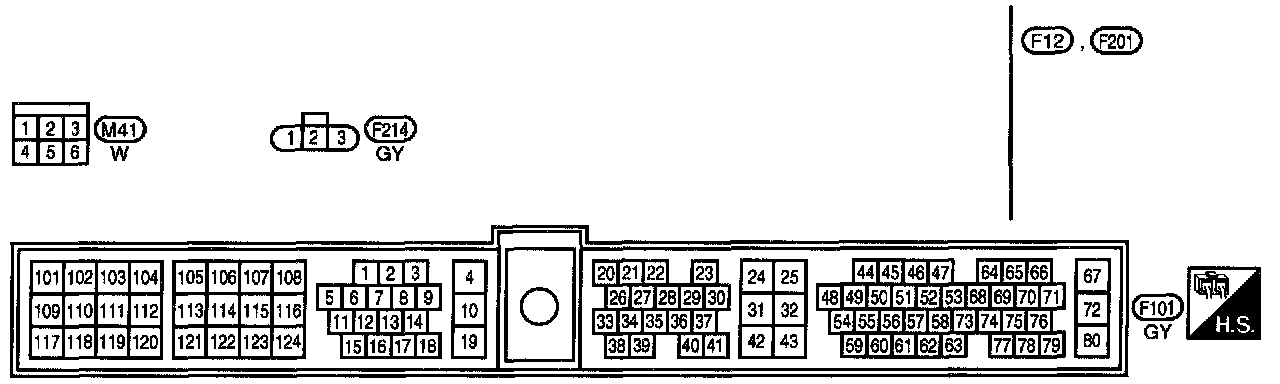

Front Heated Oxygen Sensor (Heater) Circuit Connectors





F12, F201 Super Multiple Junction Terminal Arrangement
