EC-FRO2-01

EC-FRO2-01

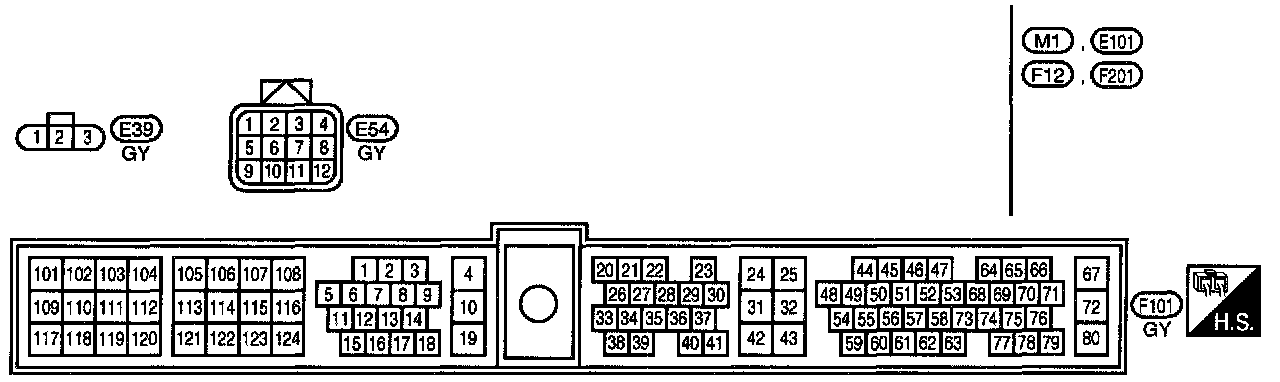

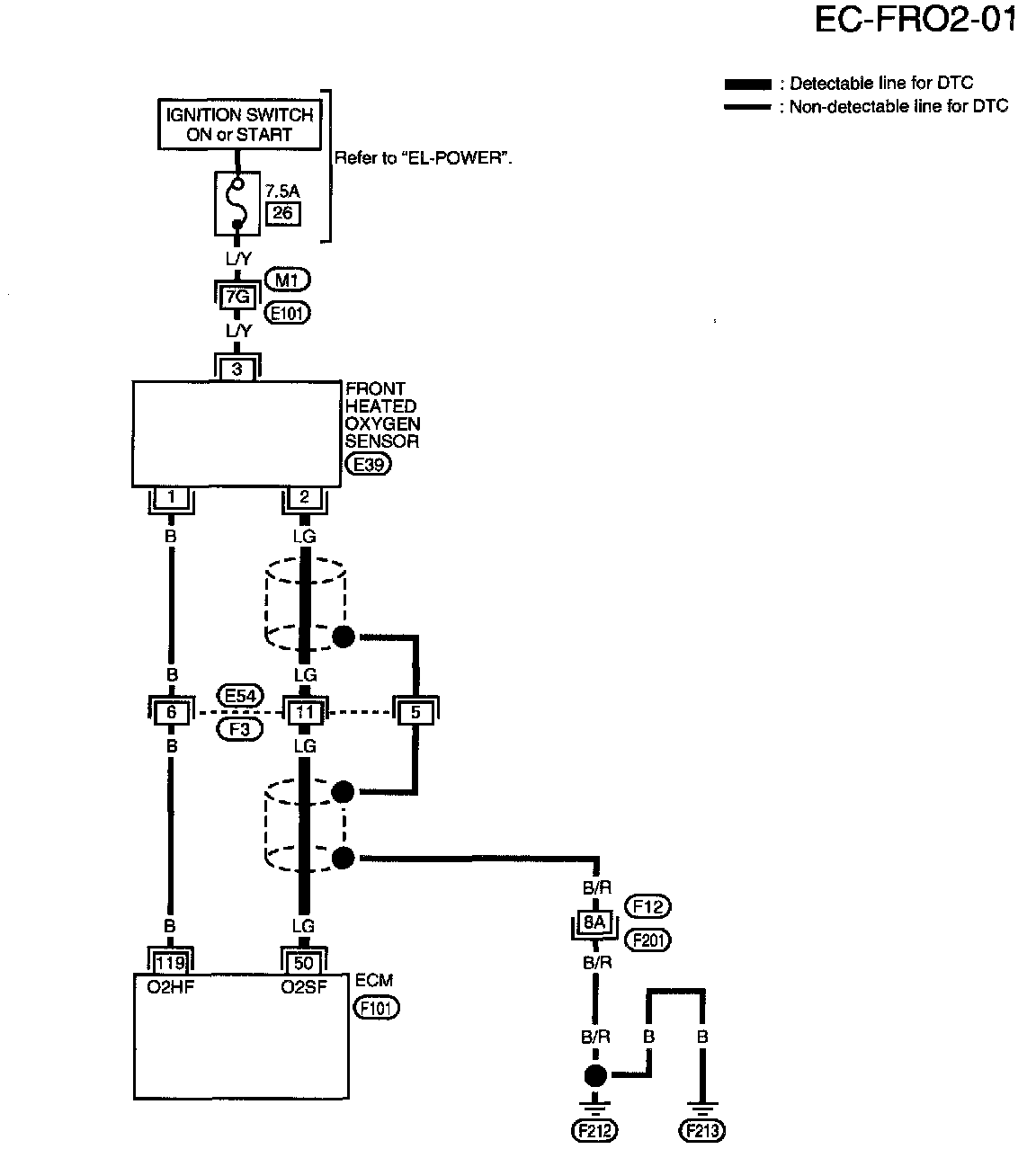

Front Heated Oxygen Sensor (Circuit) Sensor Circuit Connectors

M1, E101, F12, F201 Super Multiple Junction Terminal Arrangement
