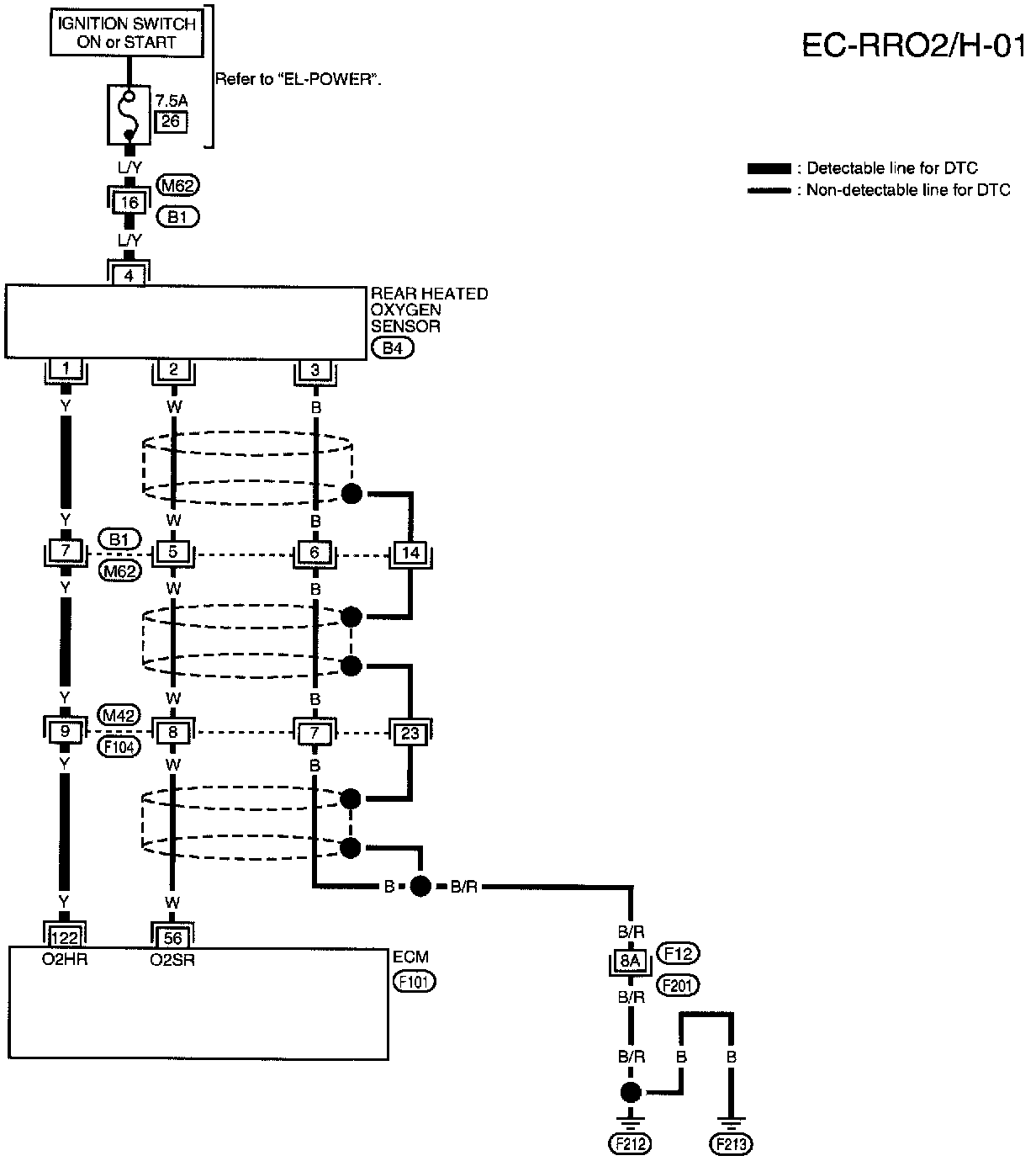

EC-RRO2/H-01





EC-RRO2/H-01

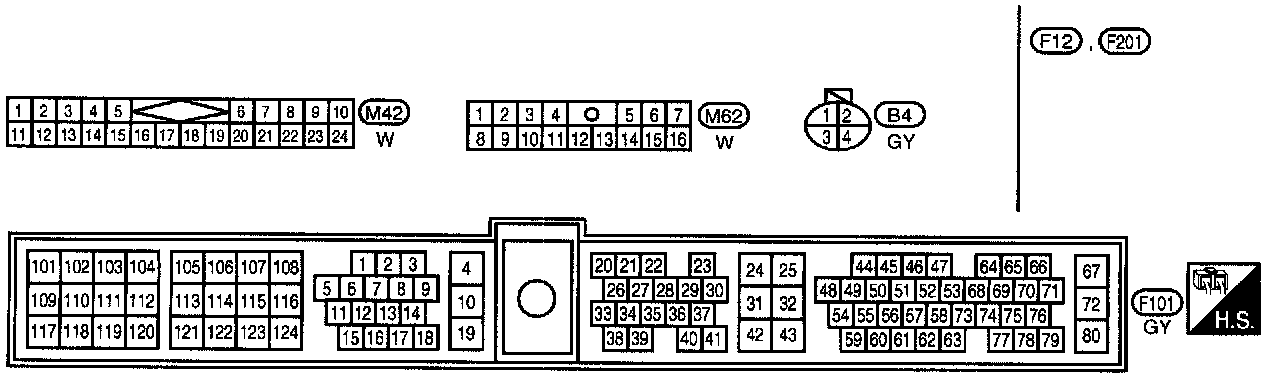

Rear Heated Oxygen Sensor (Heater) Circuit Connectors

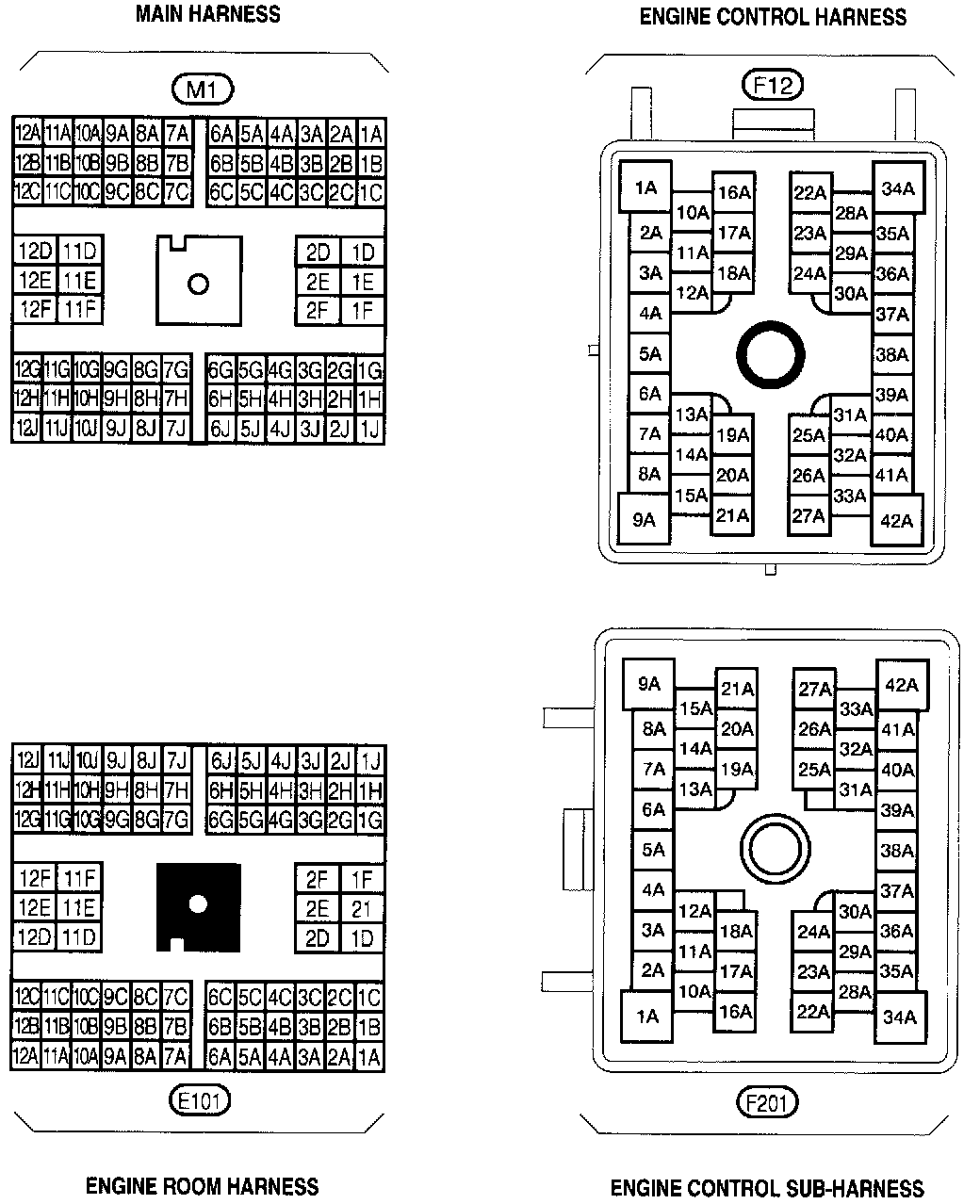

F12, F201 Super Multiple Junction Terminal Arrangement
