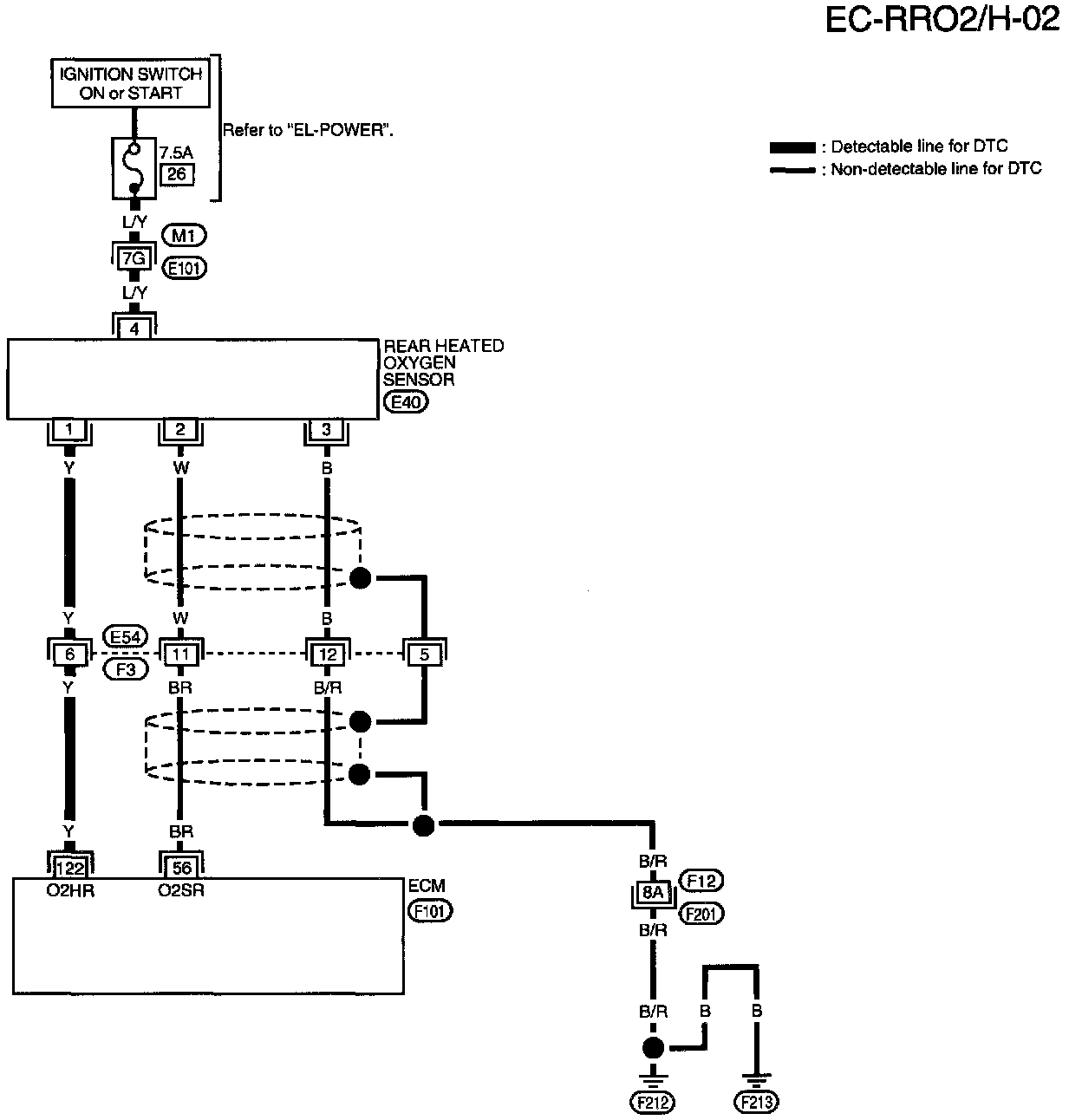

EC-RRO2/H-02





EC-RRO2/H-02

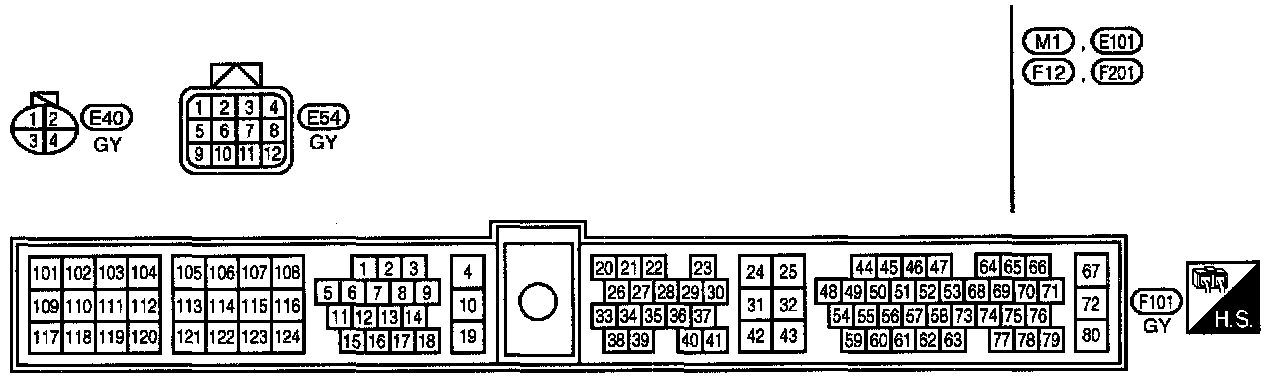

Rear Heated Oxygen Sensor (Heater) Circuit Connectors





M1, E101, F12, F201 Super Multiple Junction Terminal Arrangement
