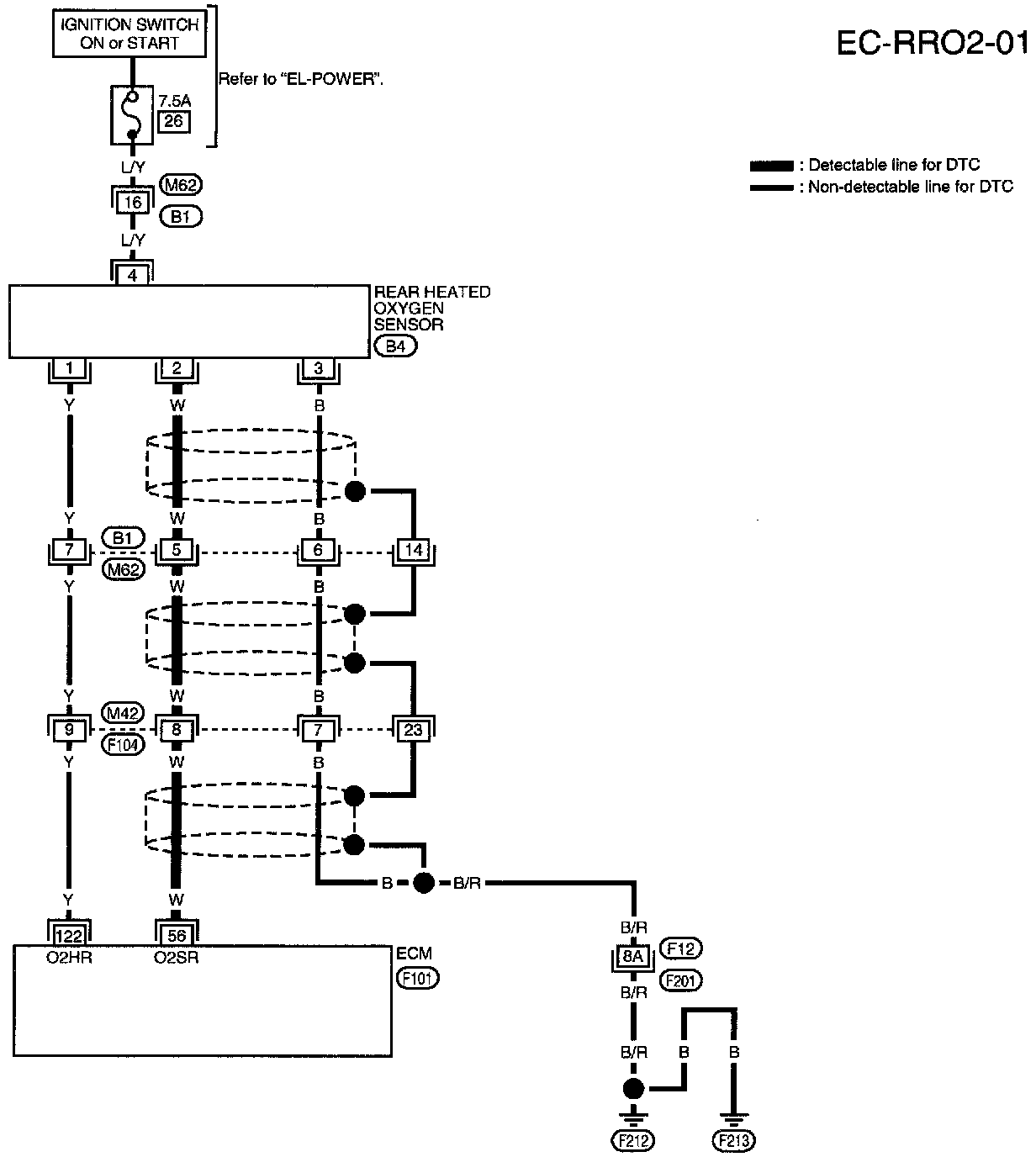

EC-RRO2-01

EC-RRO2-01

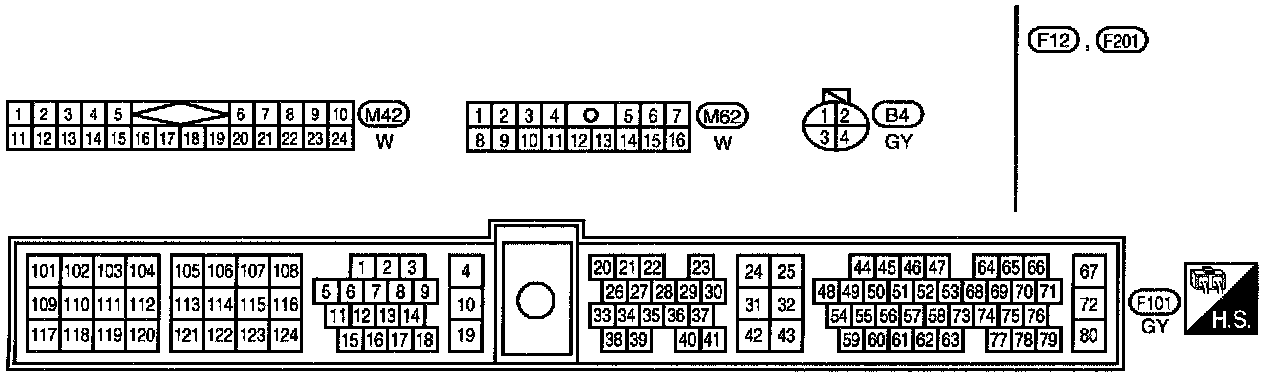

Rear Heated Oxygen Sensor (Min. Voltage Monitoring) Circuit Connectors

F12, F201 Super Multiple Junction Terminal Arrangement
