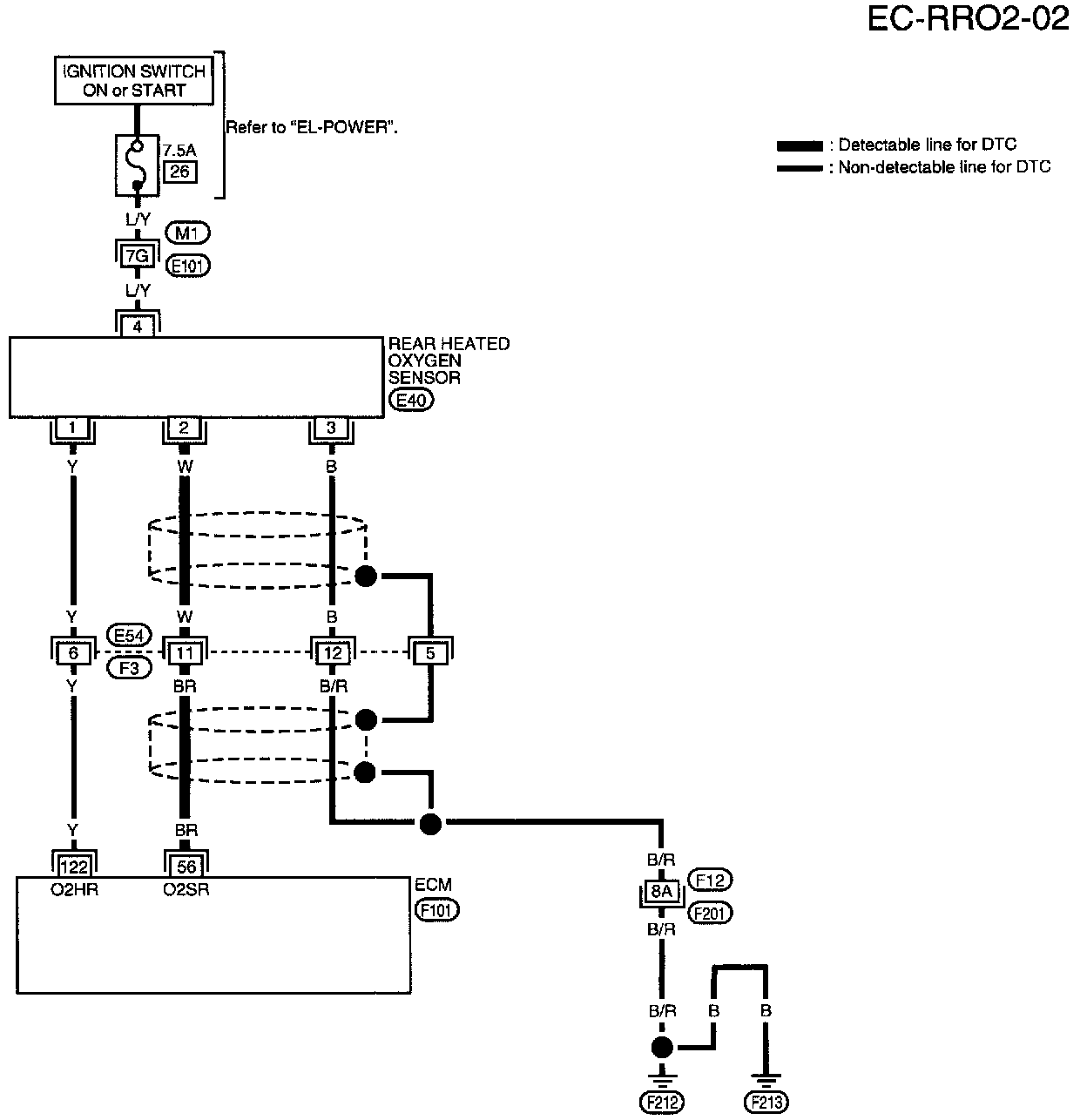

EC-RRO2-02

EC-RRO2-02

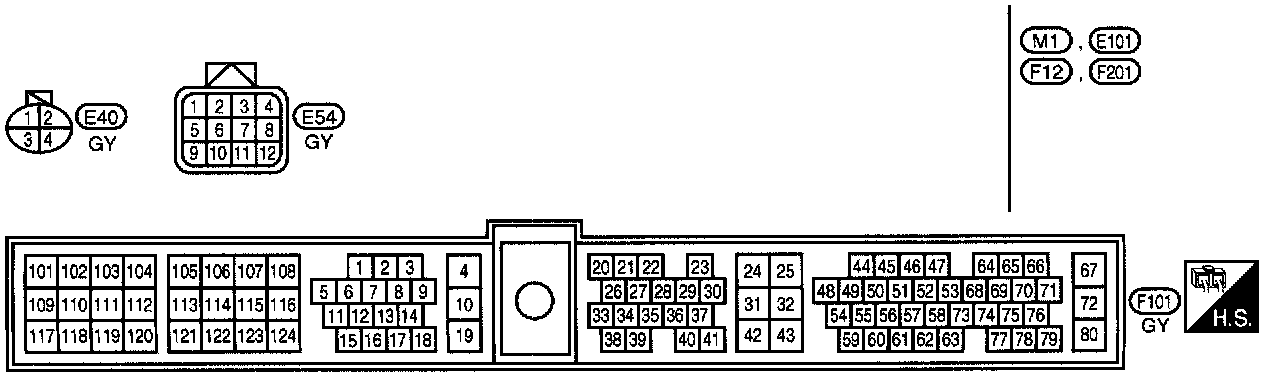

Rear Heated Oxygen Sensor (Min. Voltage Monitoring) Circuit Connectors

M1, E101, F12, F201 Super Multiple Junction Terminal Arrangement
