Operation CHARM
: Car repair manuals for everyone.
Home
>>
Nissan-Datsun
>>
1999
>>
Quest Minivan GLE V6-3.3L (VG33E)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
Computers and Control Systems
>>
Air Flow Meter/Sensor
Air Flow Meter/Sensor
Circuit Diagrams

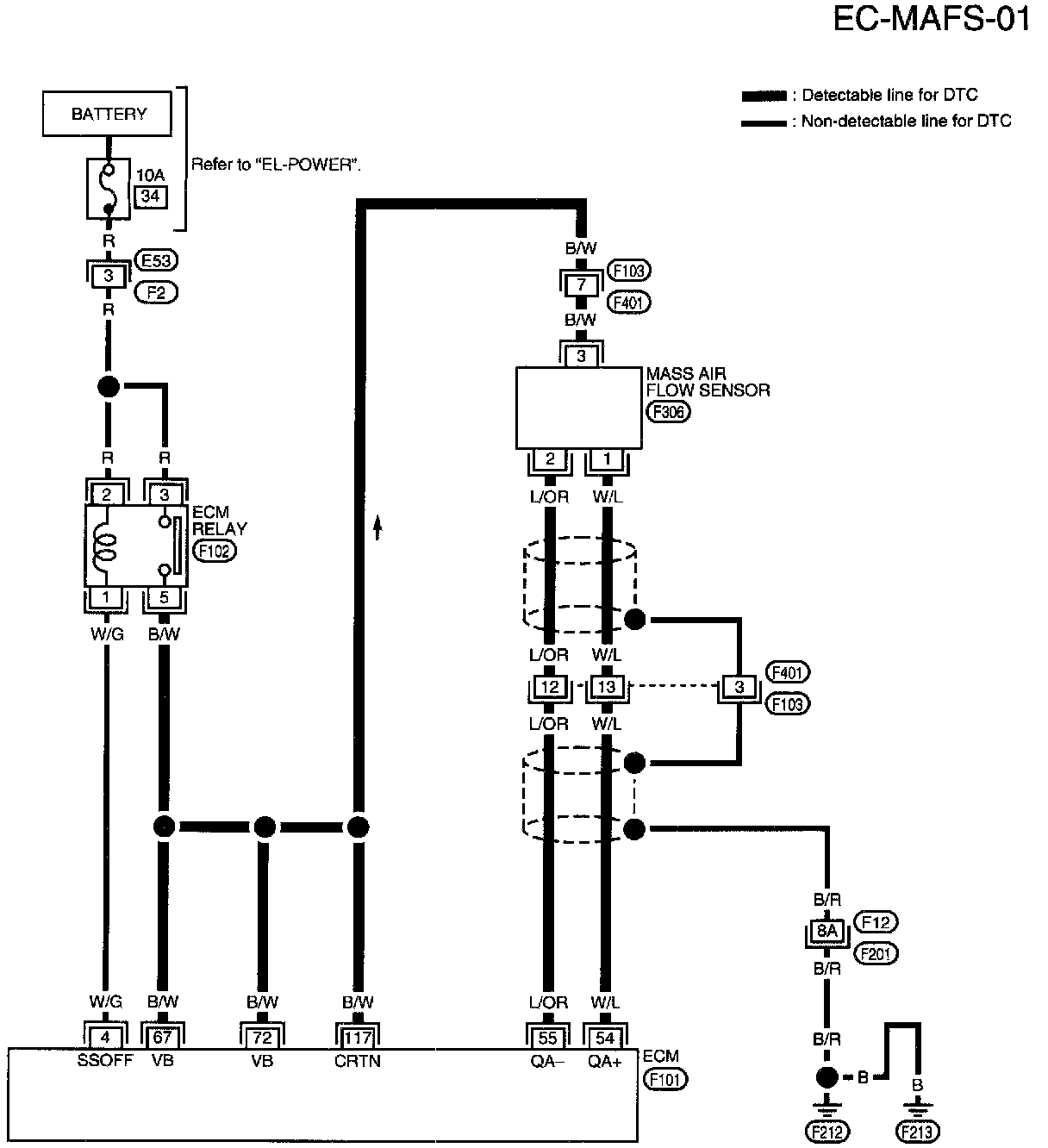

Mass Air Flow Sensor
Circuit Connectors
F12, F201 Super Multiple Junction Terminal Arrangement
