Quest Minivan GLE V6-3.3L (VG33E)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Exploded Views
Exploded Views

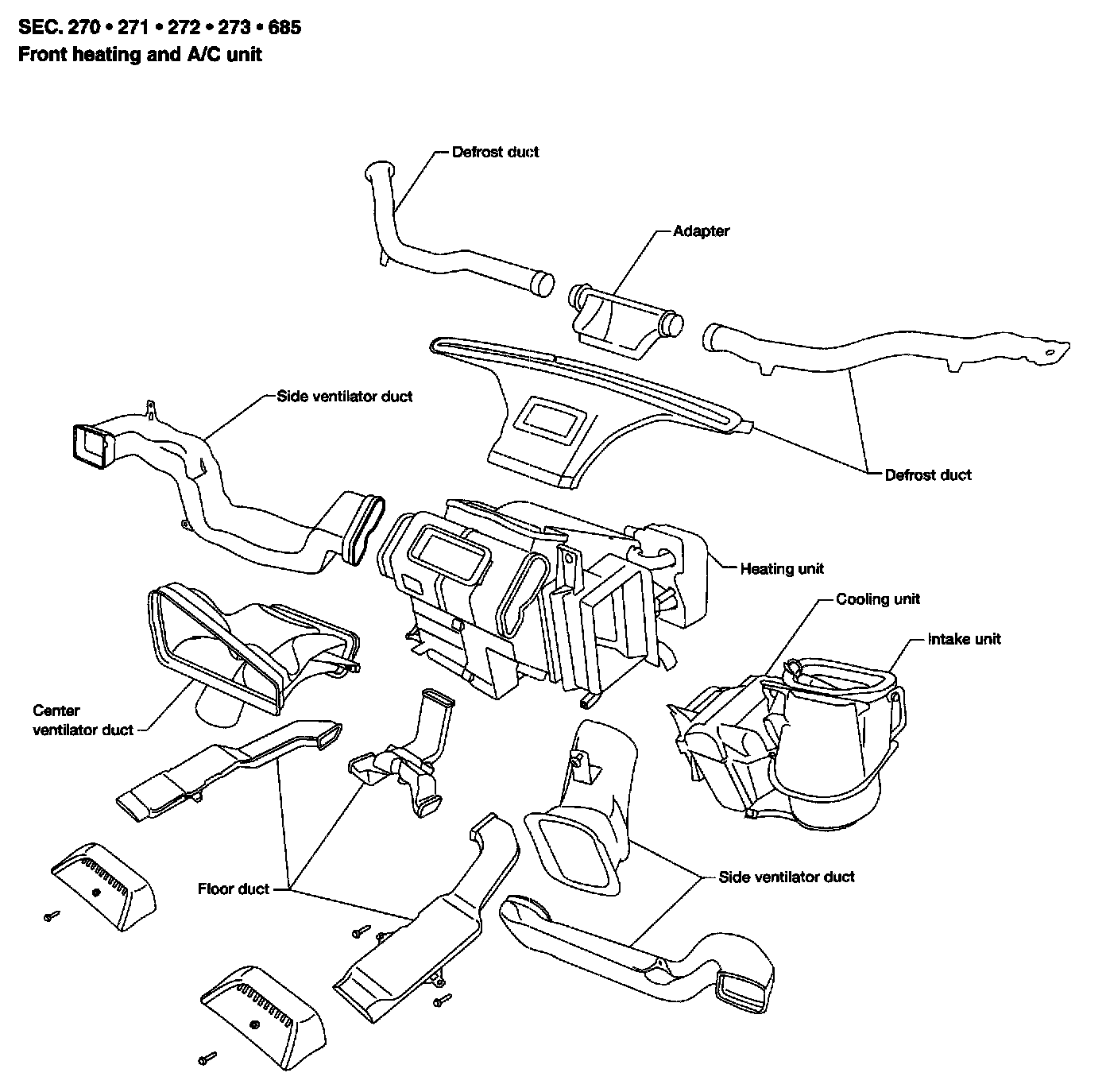

Front Heating and A/C Unit:

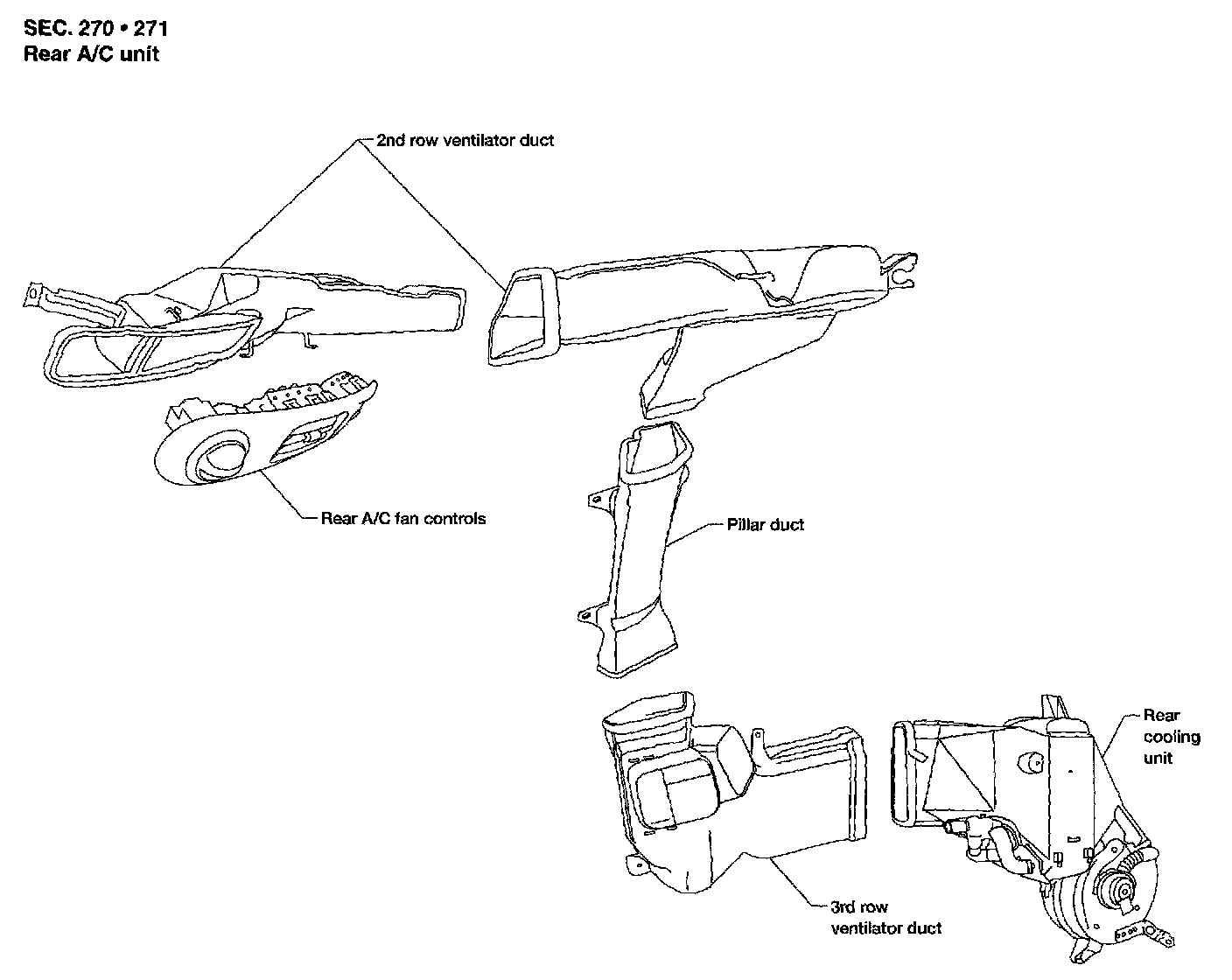

Rear A/C Unit (if so equipped):
