Electrical Diagrams

Circuit Diagrams

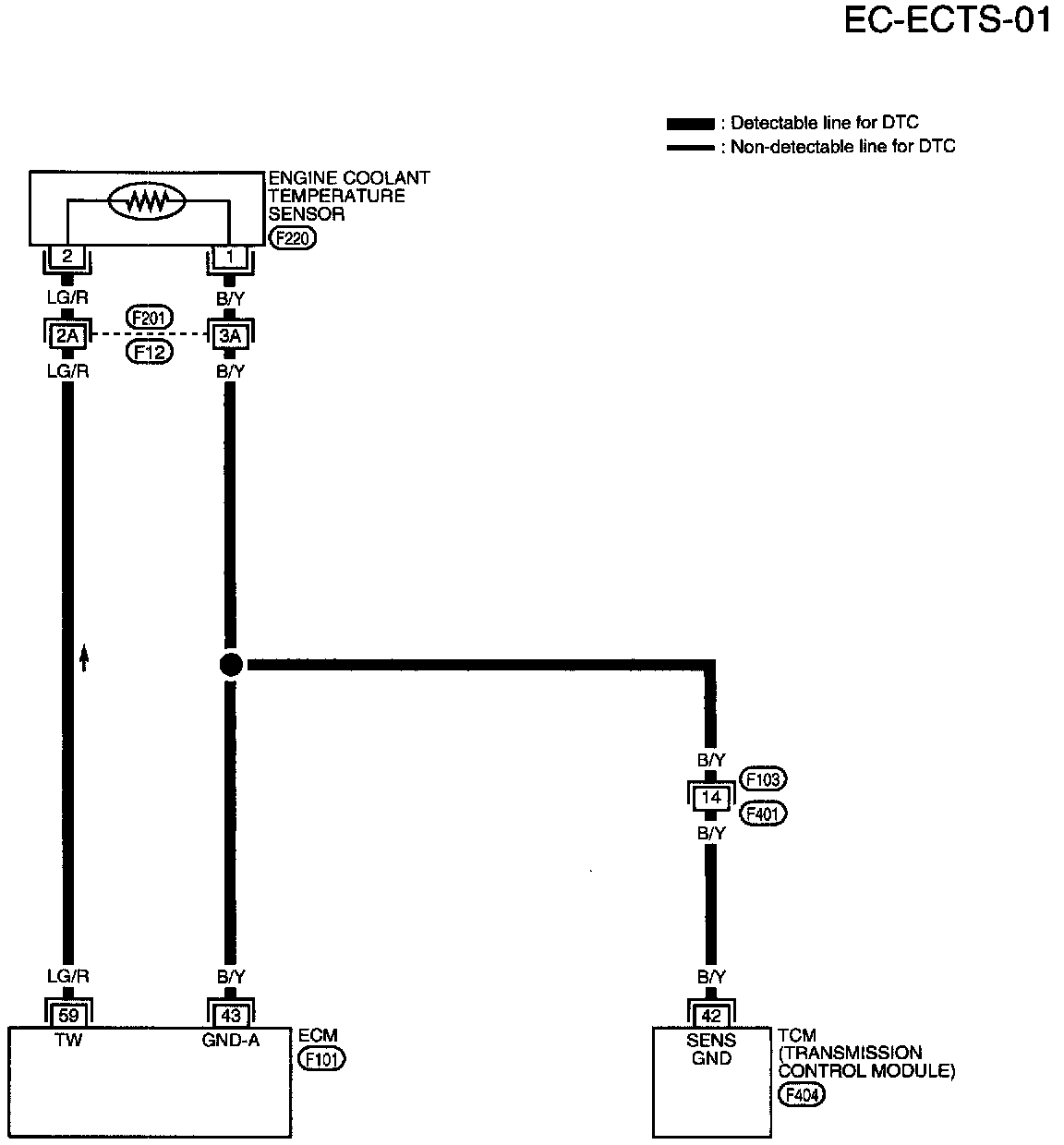

Engine Coolant Temperature Sensor (ECTS) (Circuit) Circuit Connectors

F12, F201 Super Multiple Junction Terminal Arrangement
