Throttle Position Sensor: Adjustments
Precaution: Perform Basic Inspection without electrical or mechanical loads applied;- Headlamp switch is OFF,
- Air conditioner switch is OFF,
- Rear window defogger switch is OFF,
- Steering wheel is in the straight-ahead position, etc.

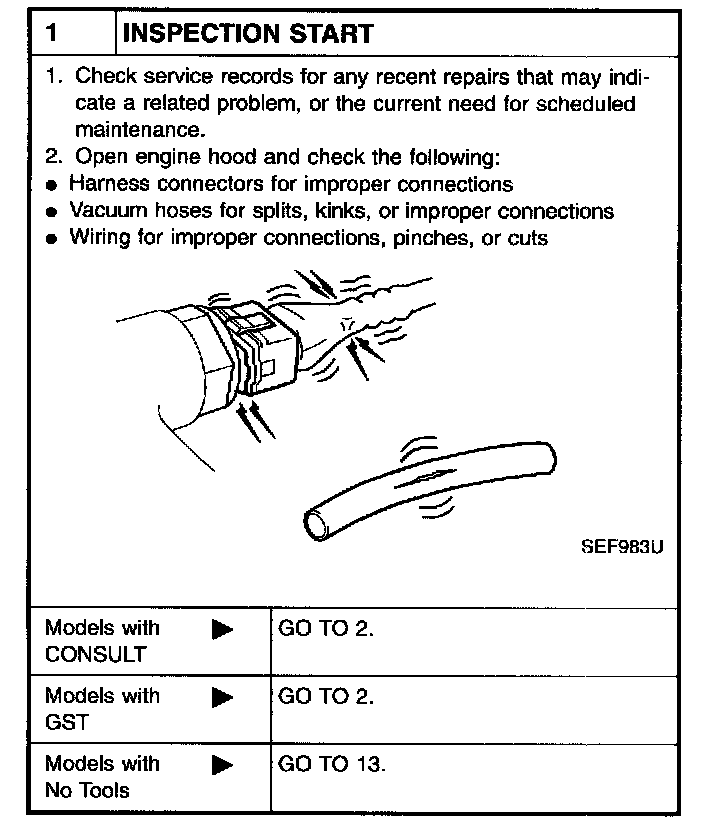

1 Of 23 /INSPECTION START:

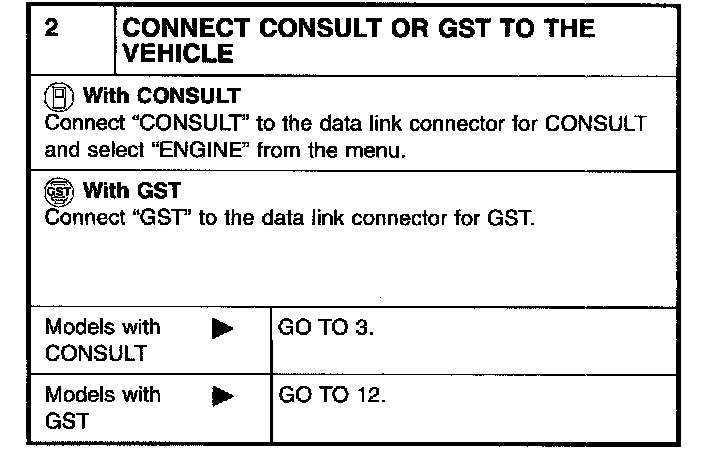

2 Of 23 /CONNECT CONSULT OR GST TO THE VEHICLE:

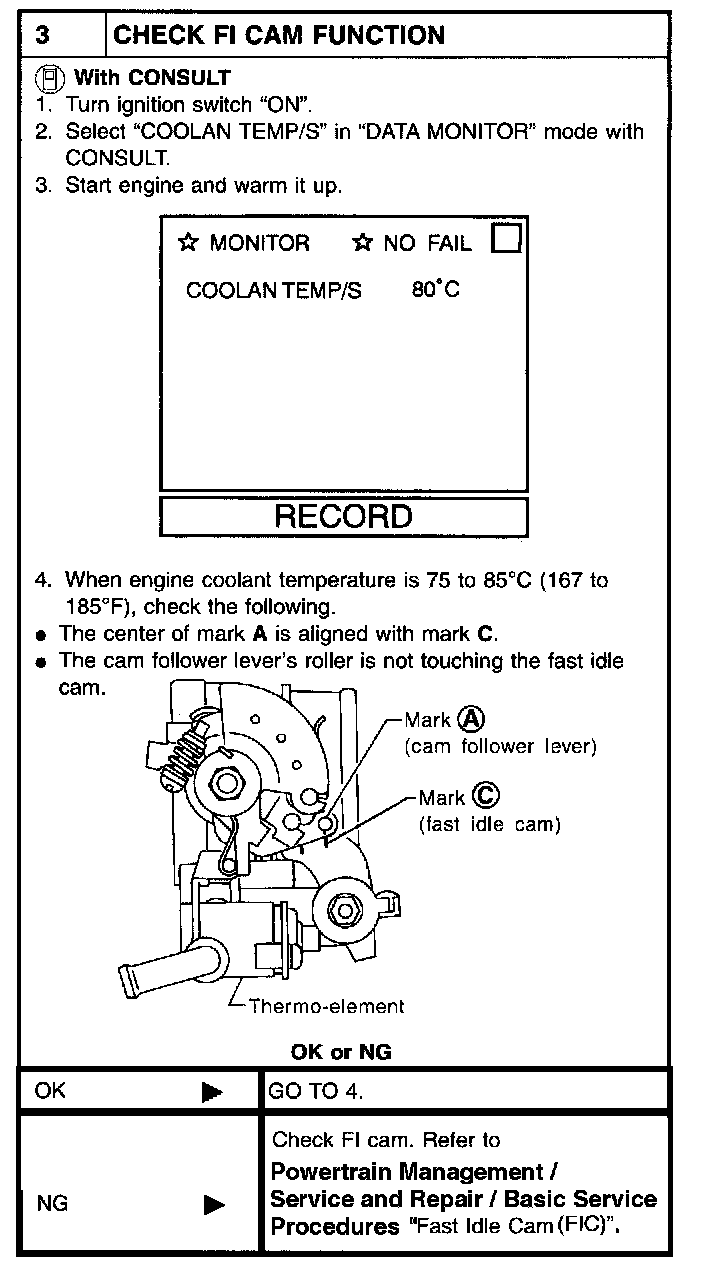

3 Of 23 /CHECK FI CAM FUNCTION:

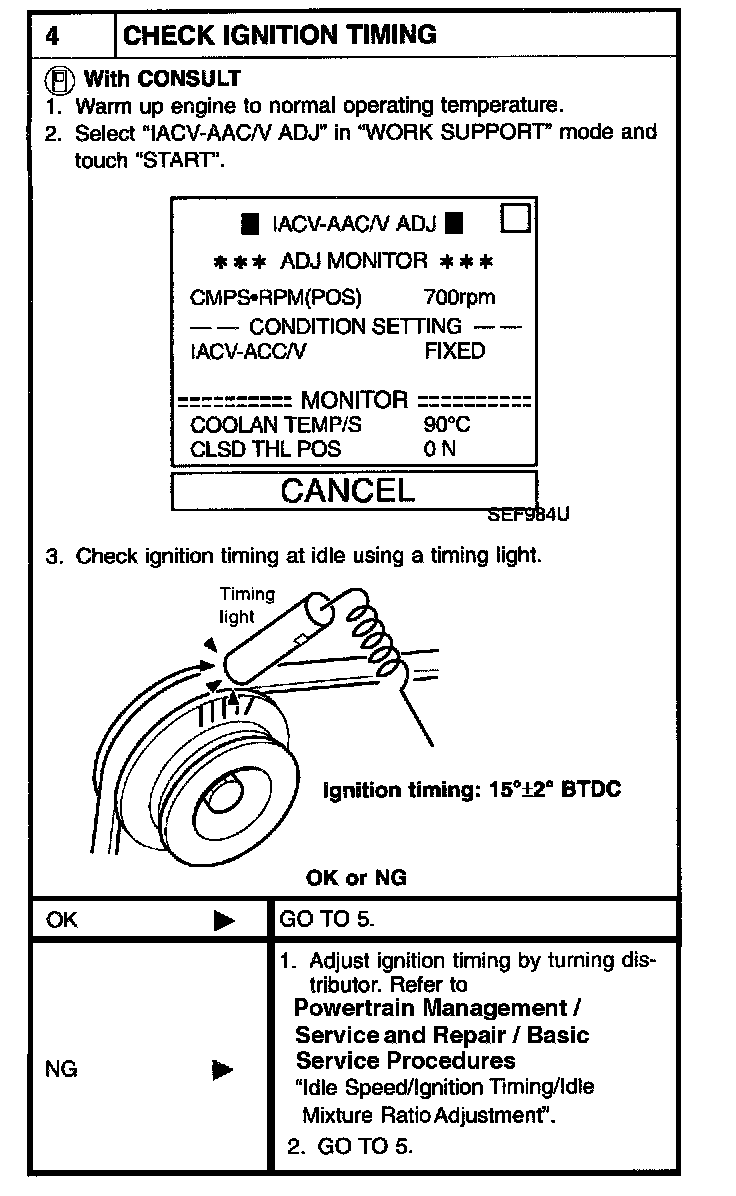

4 Of 23 /CHECK IGNITION TIMING:
5 Of 23 /CHECK BASE IDLE SPEED:

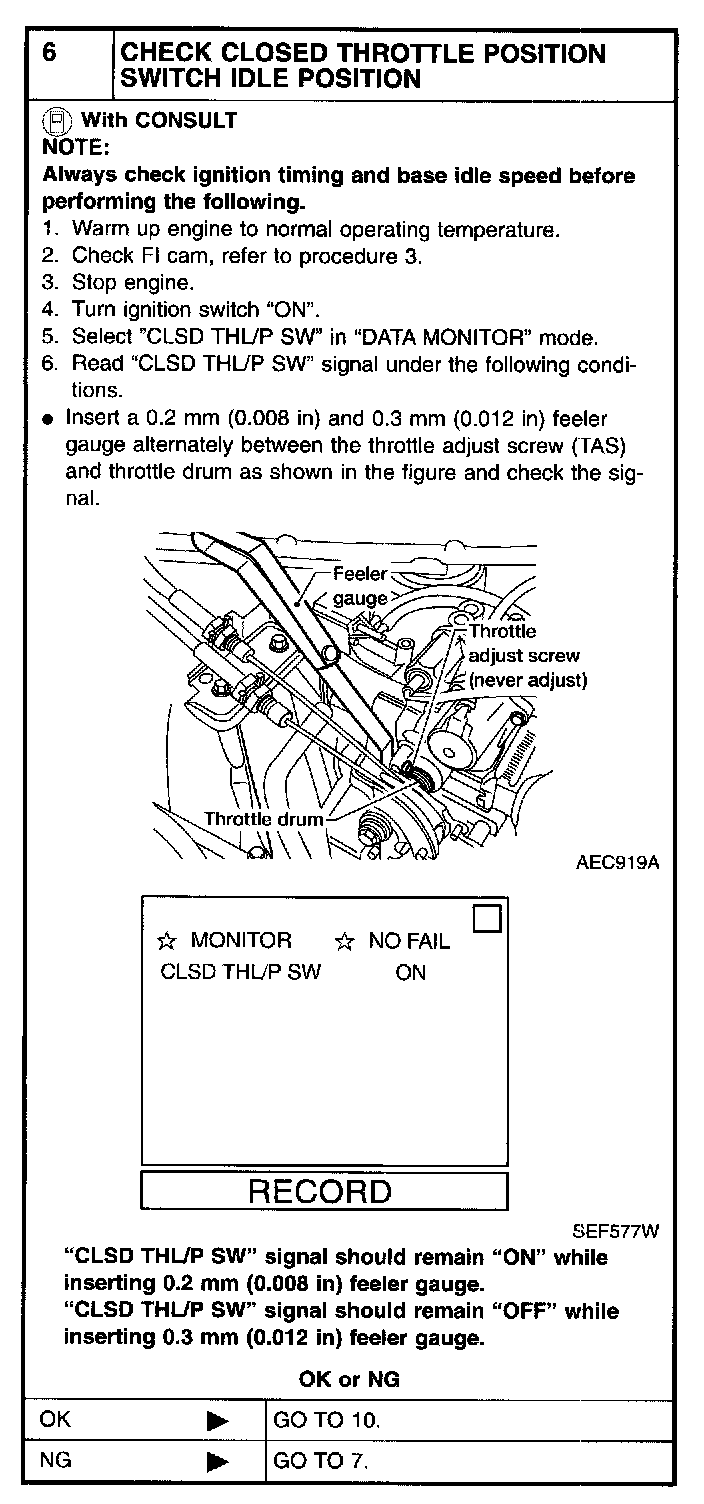

6 Of 23 /CHECK CLOSED THROTTLE POSITION SWITCH IDLE POSITION:

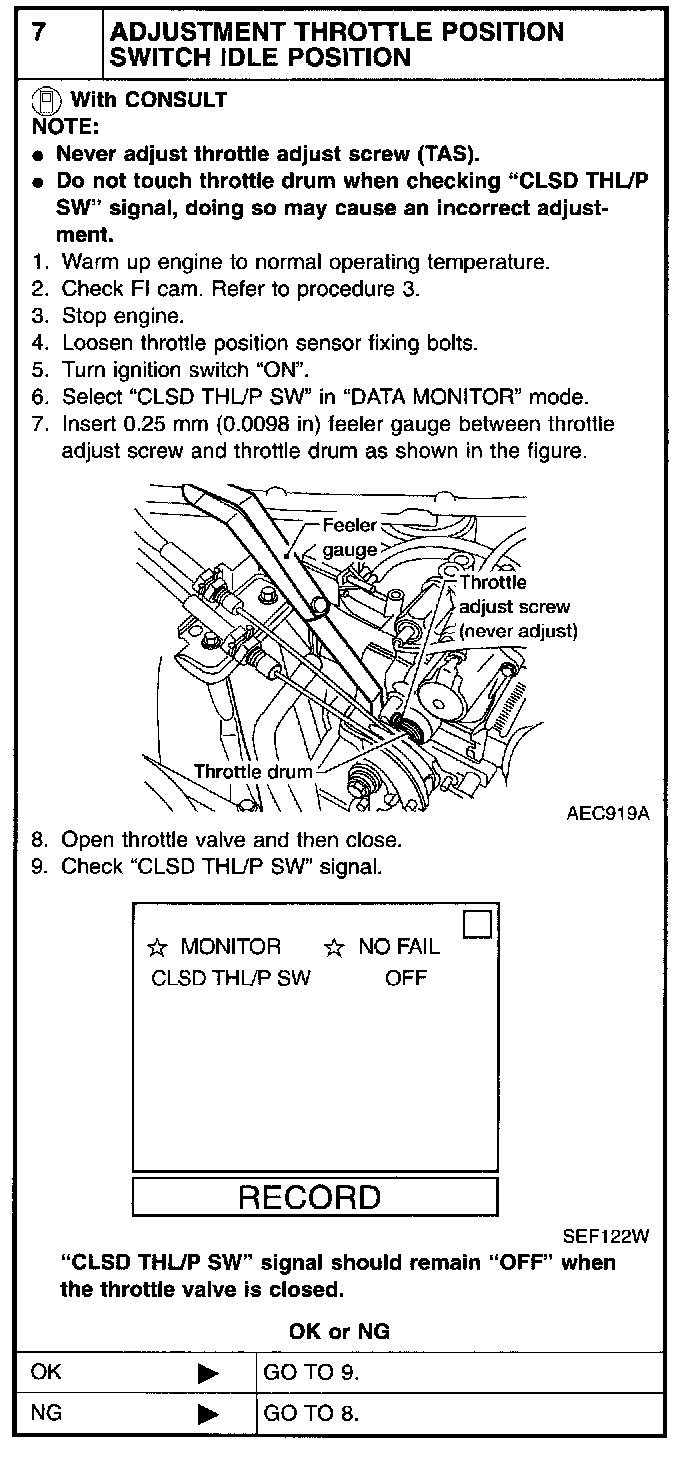

7 Of 23 /ADJUSTMENT THROTTLE POSITION SWITCH IDLE POSITION:

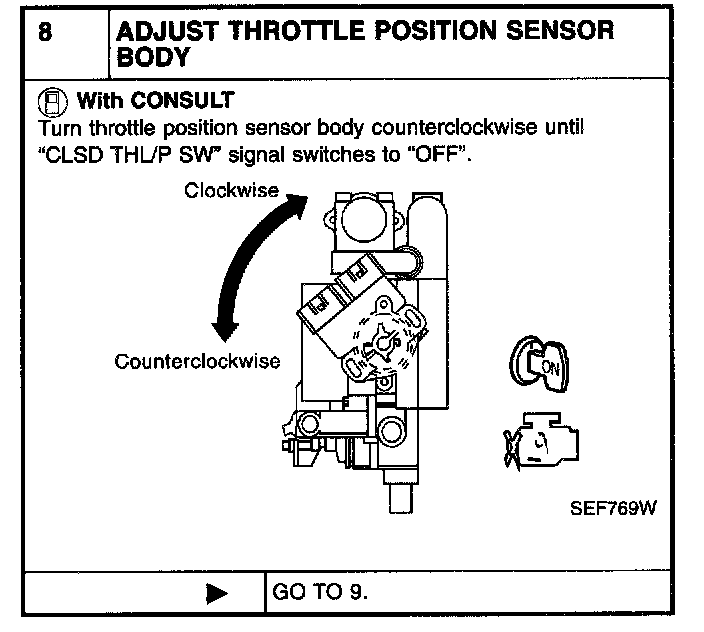

8 Of 23 /ADJUST THROTTLE POSITION SENSOR BODY:

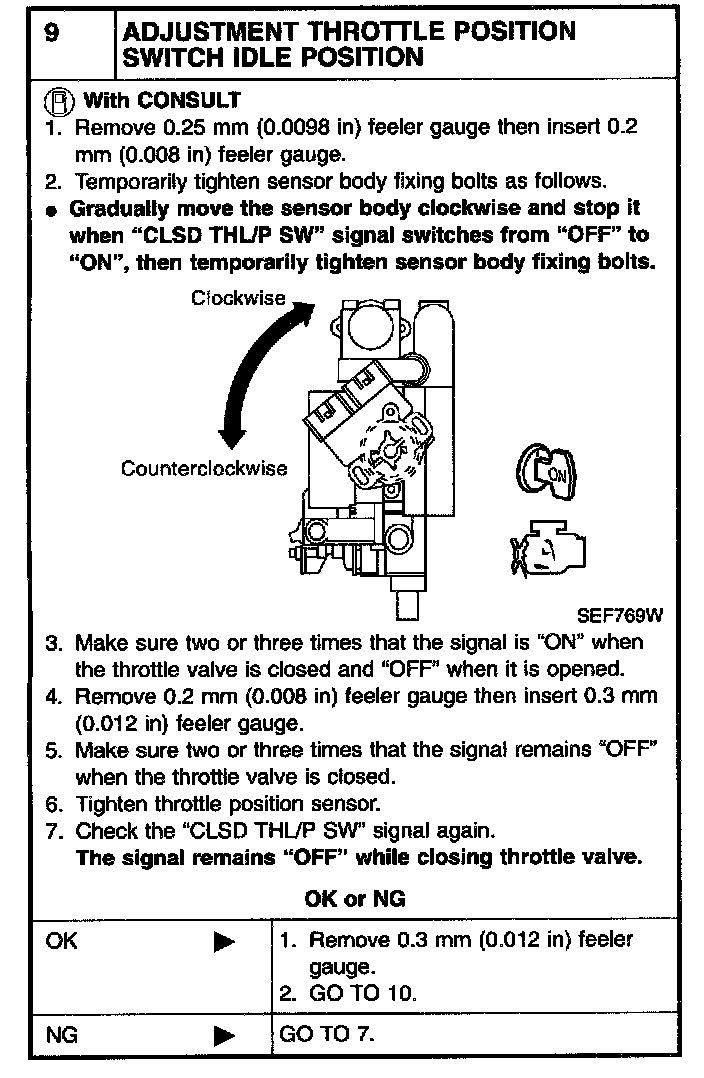

9 Of 23 /ADJUSTMENT THROTTLE POSITION SWITCH IDLE POSITION:

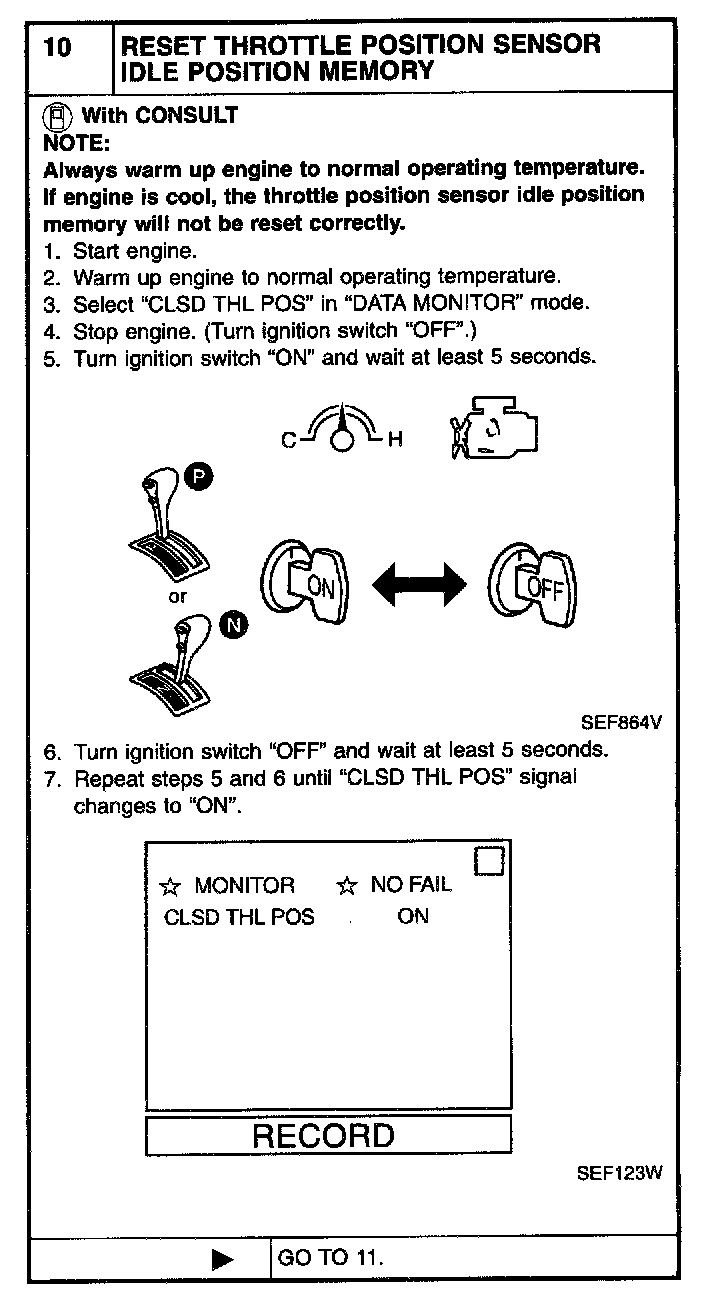

10 Of 23 /RESET THROTTLE POSITION SENSOR IDLE POSITION MEMORY:

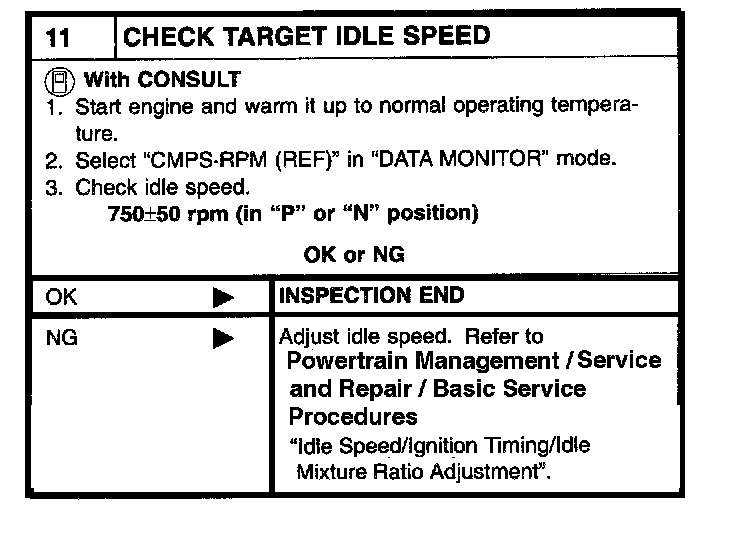

11 Of 23 / CHECK TARGET IDLE SPEED:

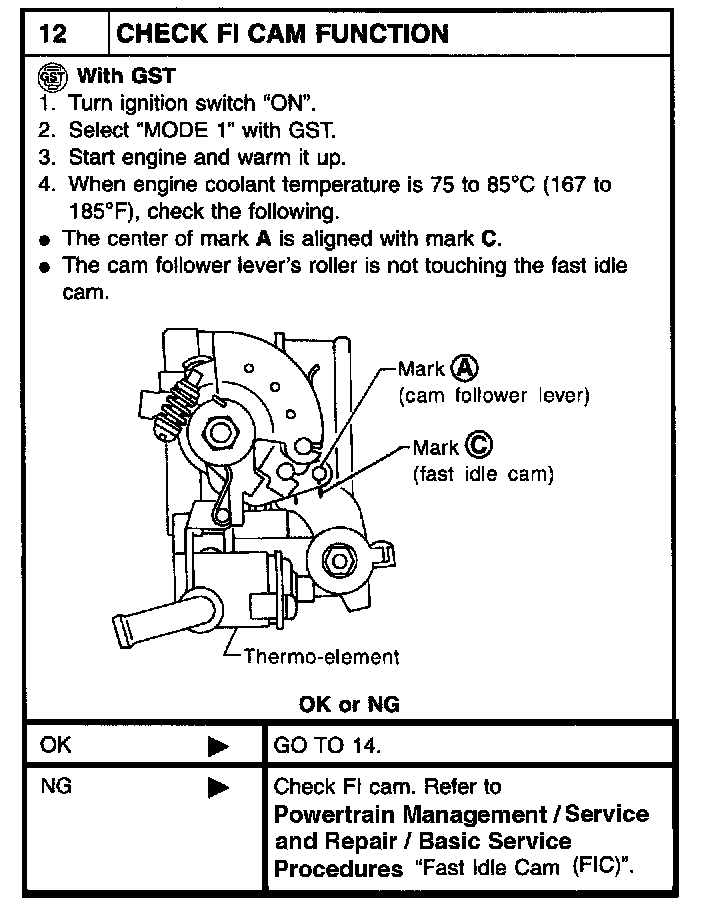

12 Of 23 / CHECK FI CAM FUNCTION:

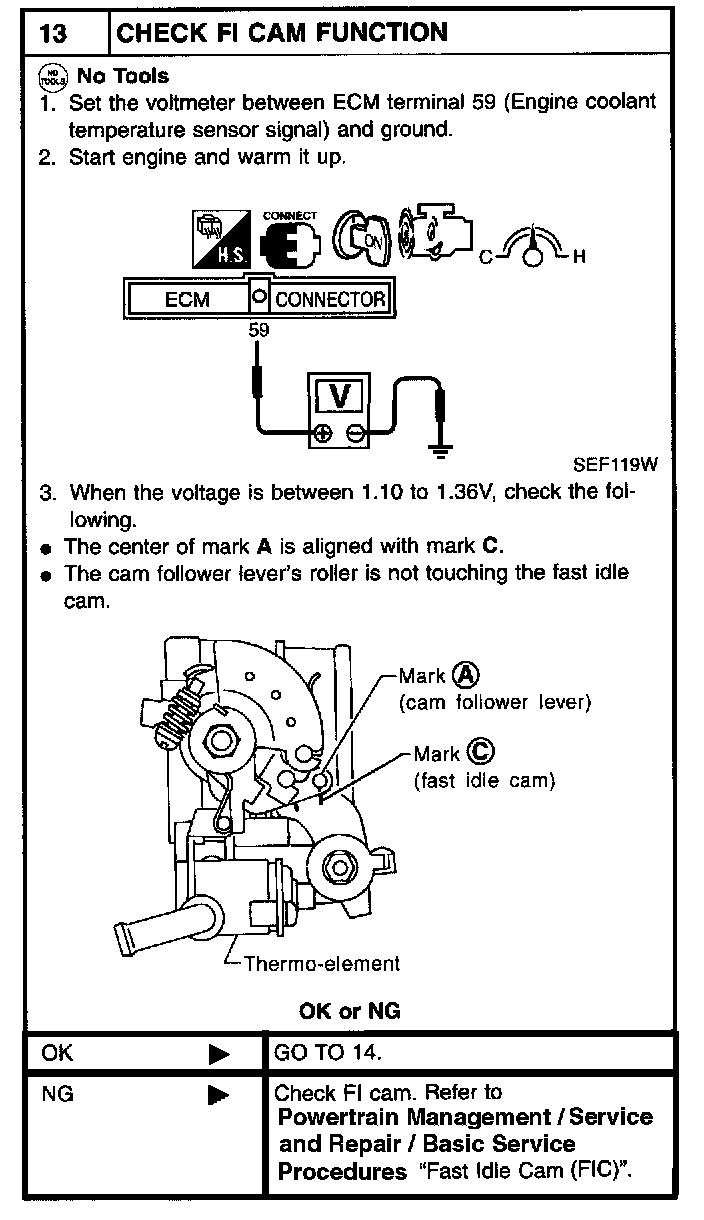

13 Of 23 / CHECK FI CAM FUNCTION:

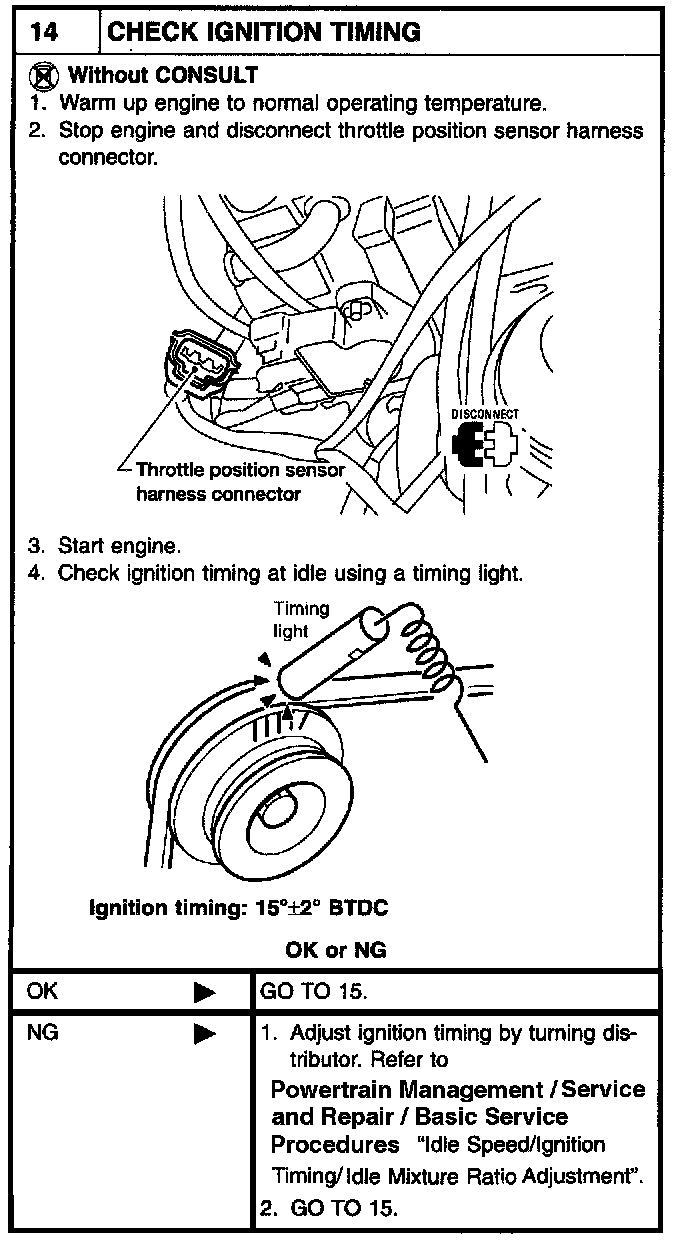

14 Of 23 /Check Ignition Timing:

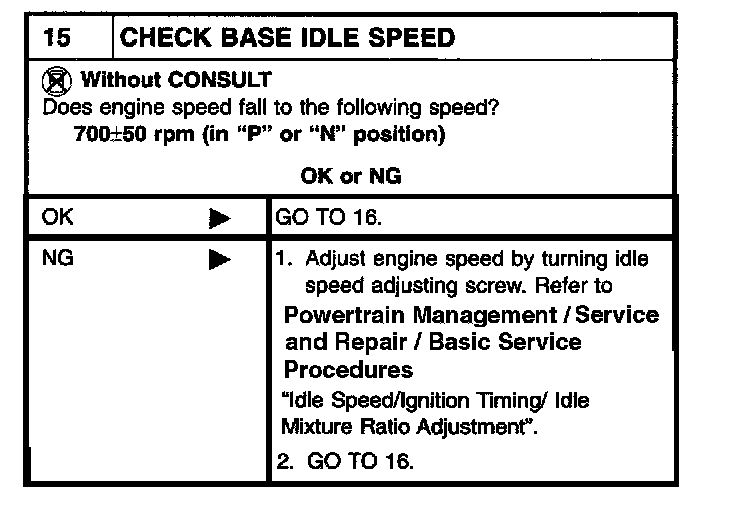

15 Of 23 /CHECK BASE IDLE SPEED:

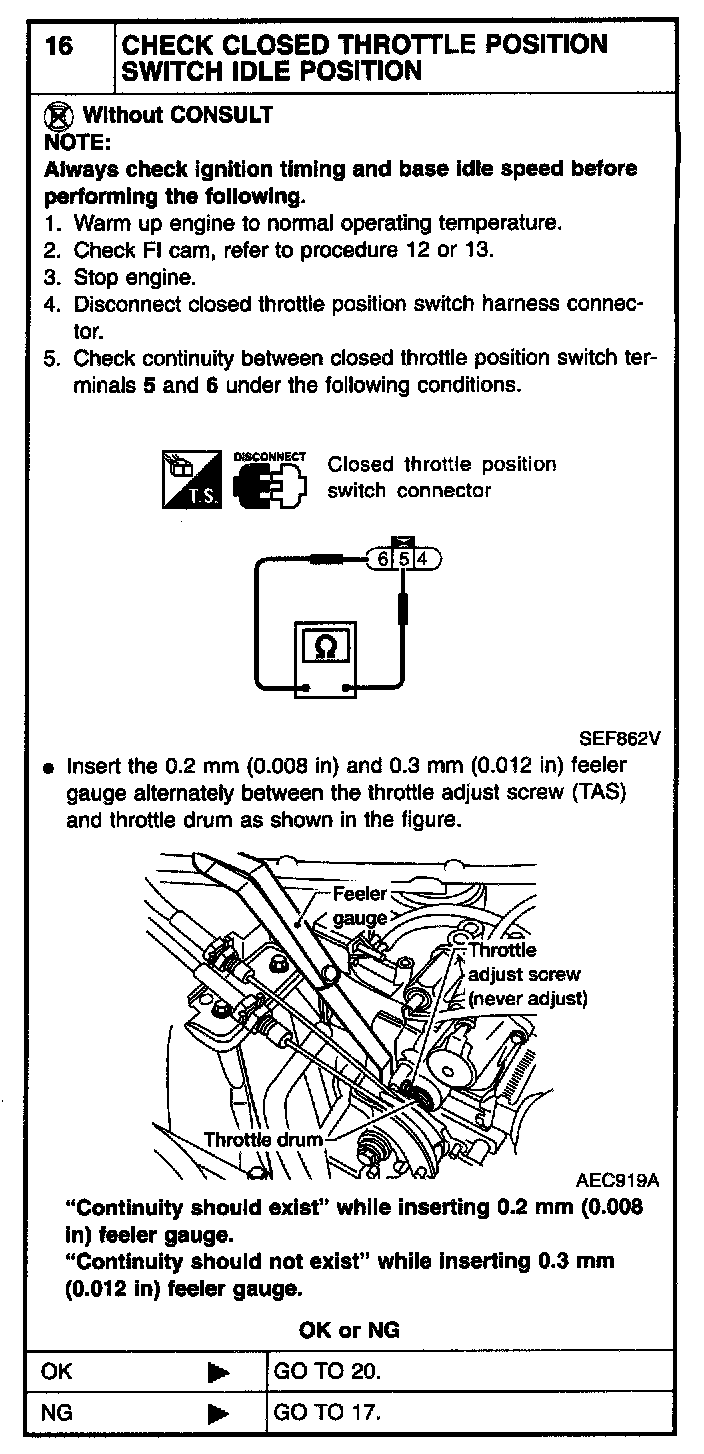

16 Of 23 /CHECK CLOSED THROTTLE POSITION SWITCH IDLE POSITION:
17 Of 23 /ADJUSTMENT THROTTLE POSITION SWITCH IDLE POSITION:

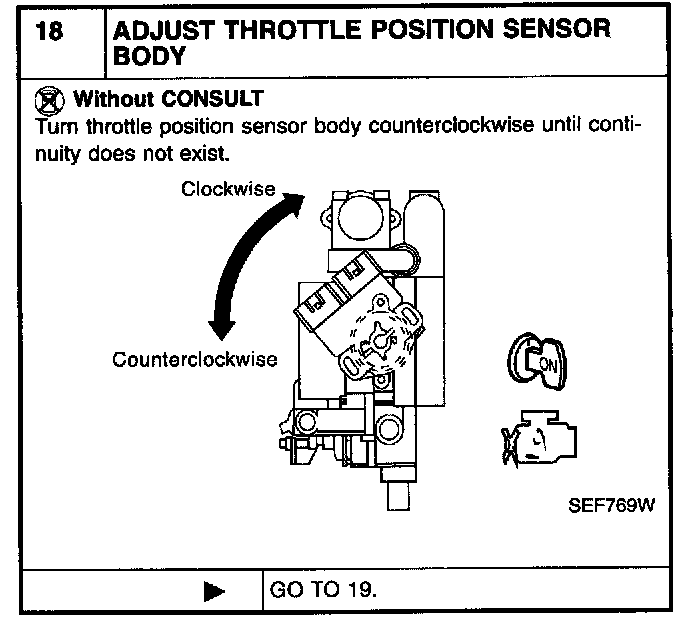

18 Of 23 /ADJUST THROTTLE POSITION SENSOR BODY:

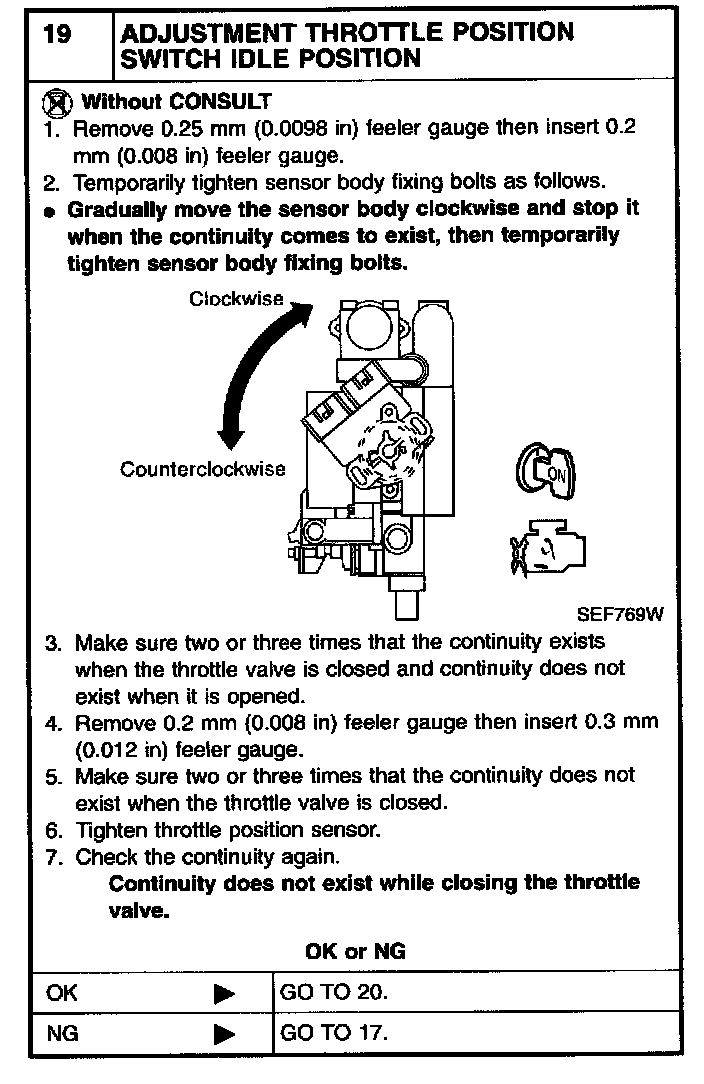

19 Of 23 /ADJUSTMENT THROTTLE POSITION SWITCH IDLE POSITION:

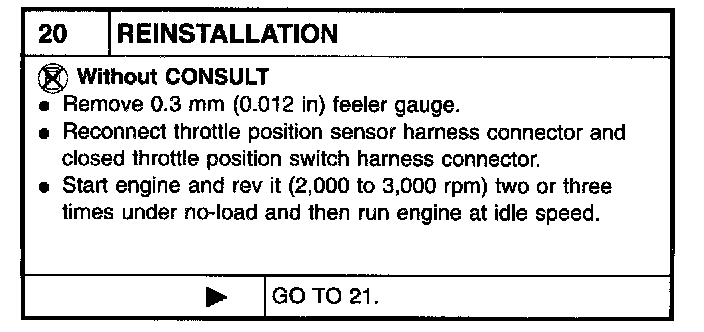

20 Of 23 /REINSTALLATION:

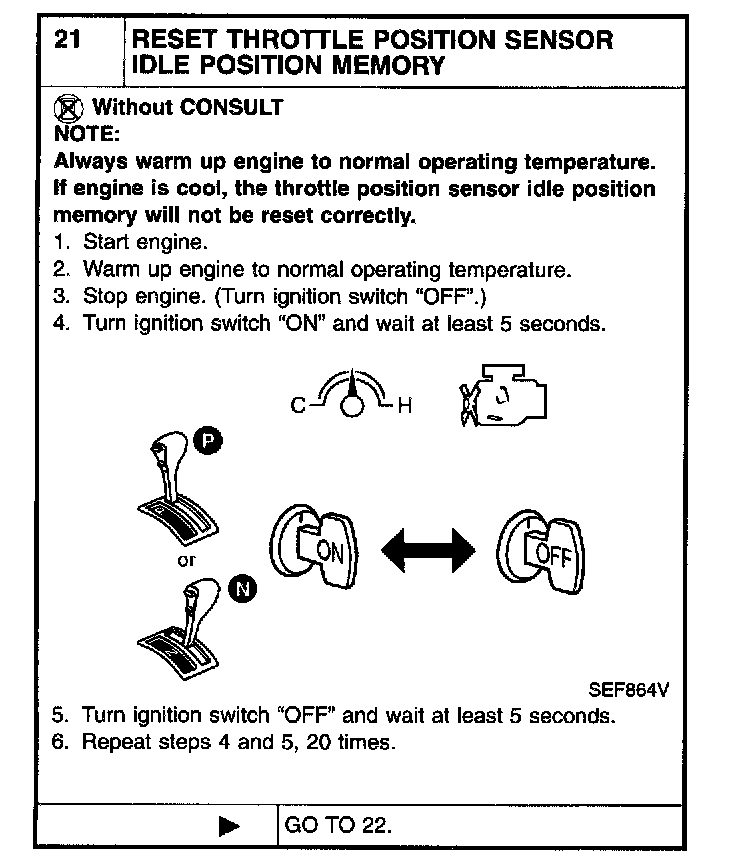

21 Of 23 /RESET THROTTLE POSITION SENSOR IDLE POSITION MEMORY:
