A/T Fluid Temp Sensor /A/T Control Unit Power Source
>>
Component Inspection
Component Inspection
-

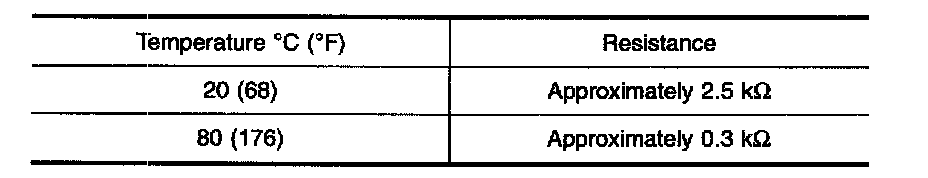

Check resistance between two terminals while changing temperature as shown.
