Diagnostic Procedure

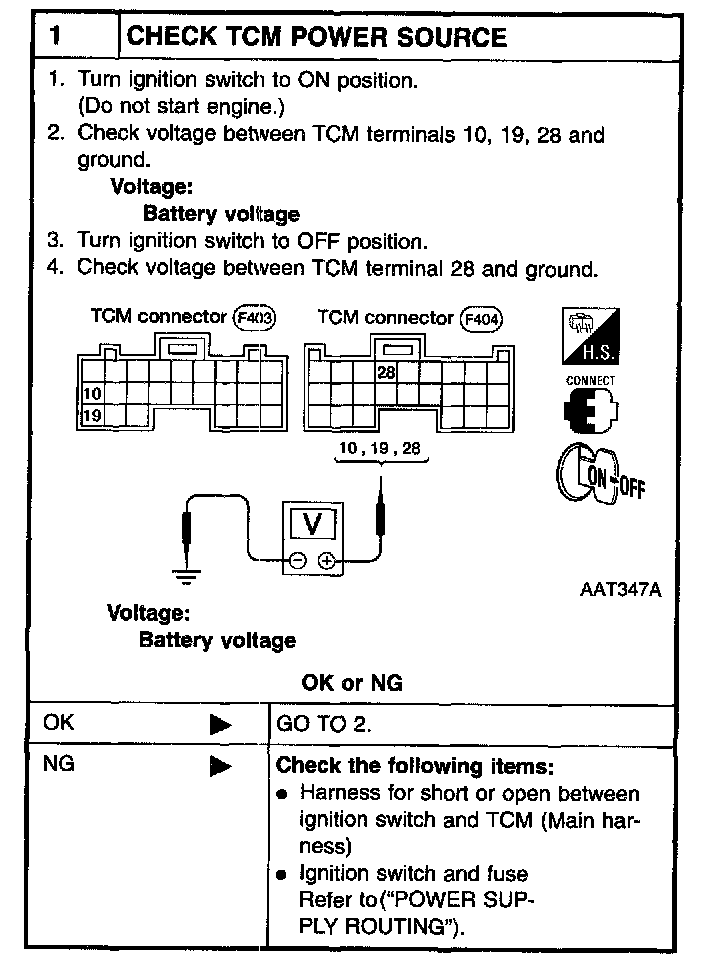

1 CHECK TCM POWER SOURCE:

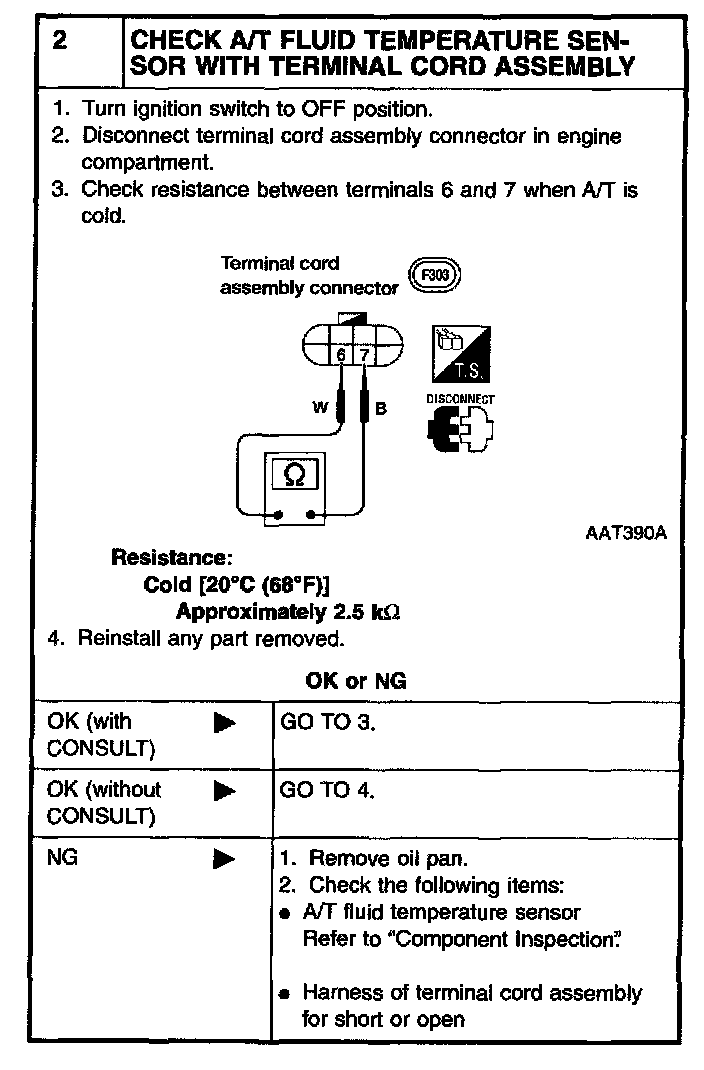

2 CHECK A/T FLUID TEMPERATURE SENSOR WITH TERMINAL CORD ASSEMBLY:

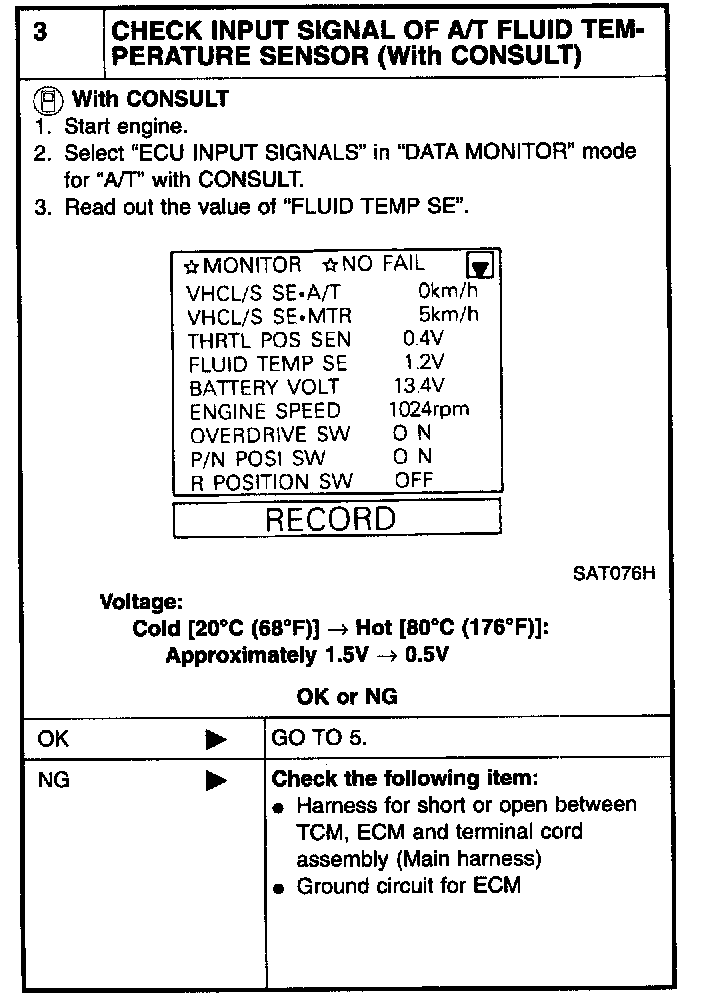

3 CHECK INPUT SIGNAL OF A/T FLUID TEMPERATURE SENSOR (With CONSULT):

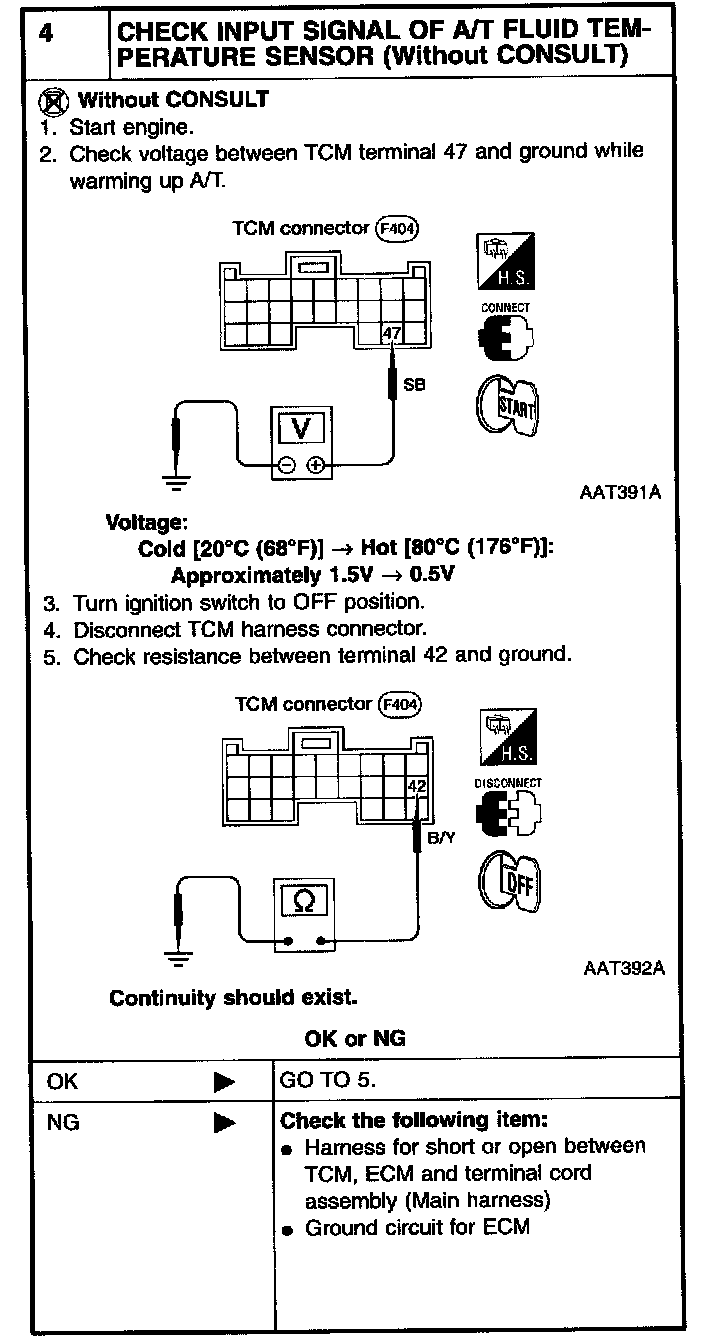

4 CHECK INPUT SIGNAL OF A/T FLUID TEMPERATURE SENSOR (Without CONSULT):

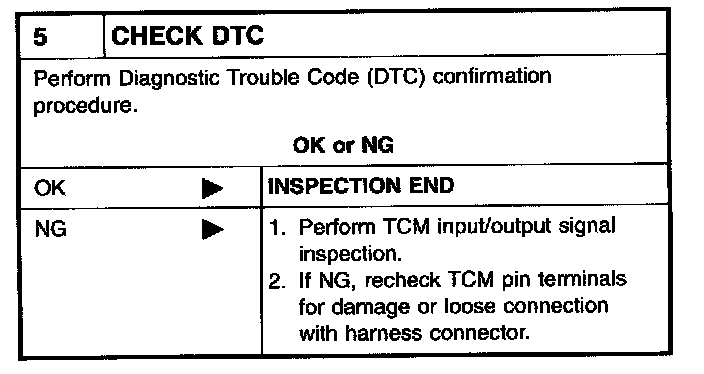

5 CHECK DTC:
