Frontier XE 2WD L4-2.4L (KA24DE)
>>
Repair and Diagnosis
>>
Locations
>>
Component Locations
>>
Fuses/Circuit Breaker/Fusable Link/Fuse Block/Relay Box
>>

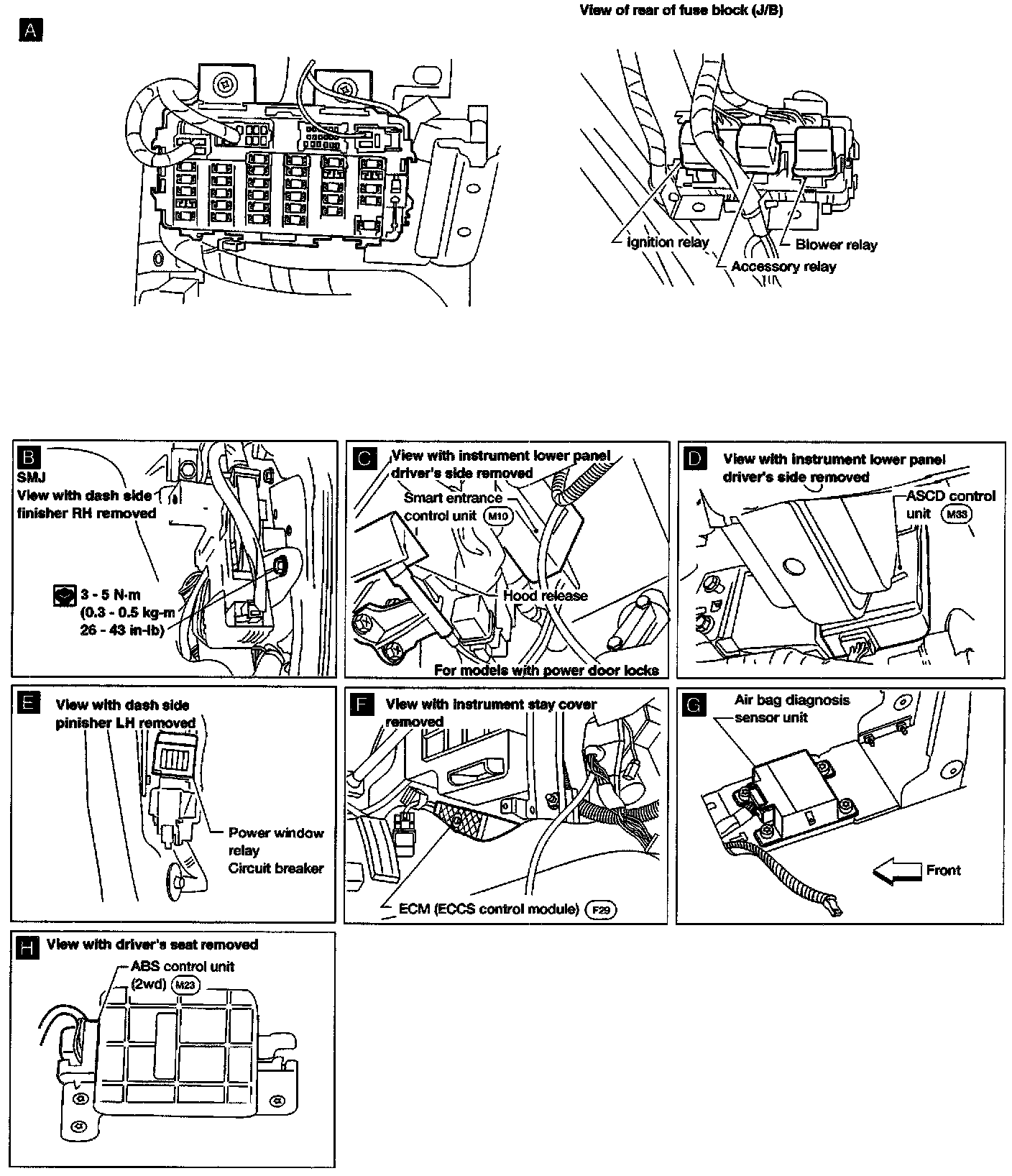

Fuse Block
Fuse Block

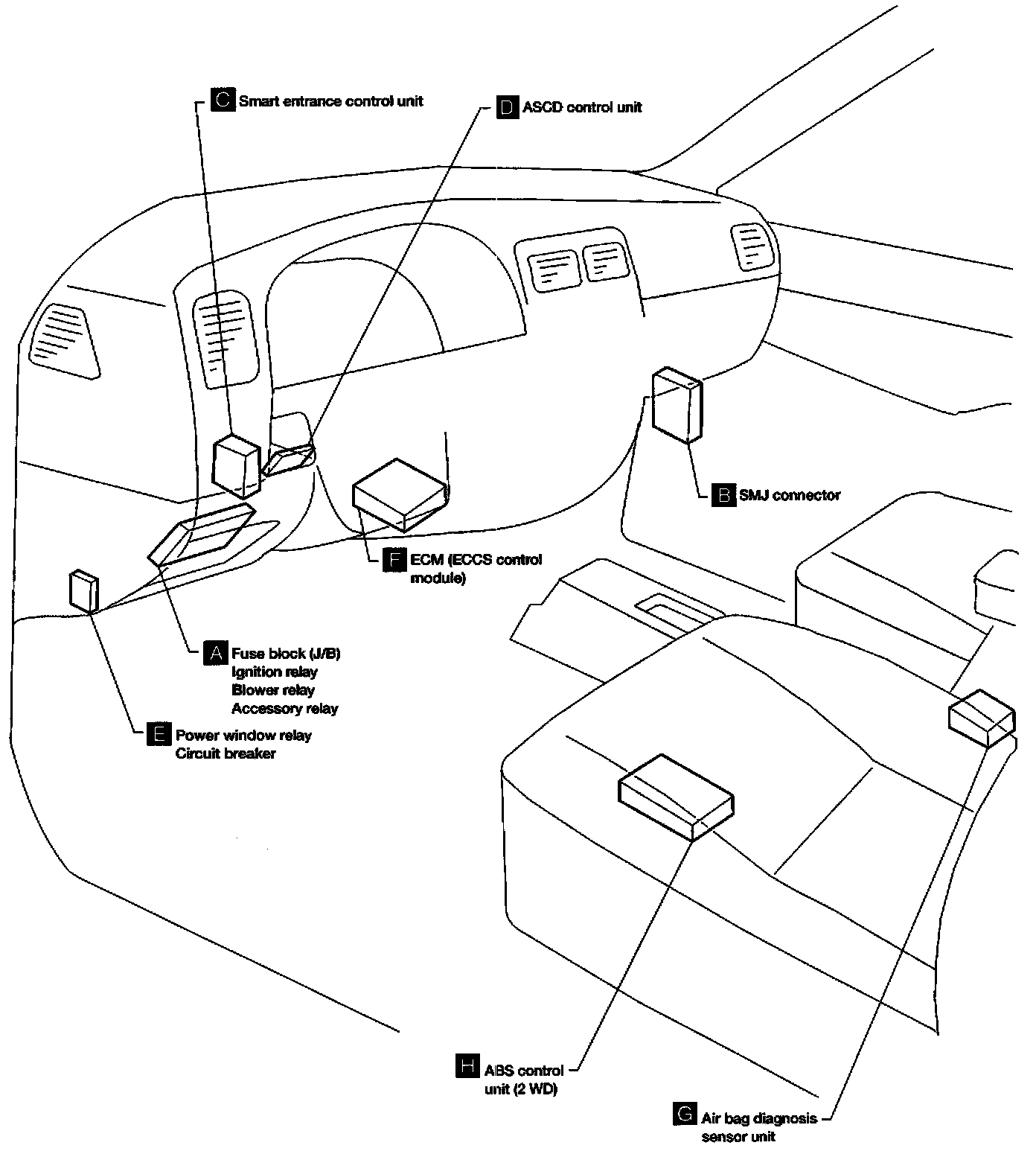

Component Parts and Harness Connector Location
Passenger Compartment
