Inspection Procedure





CONSULT Data Link Connector (DLC) Circuit

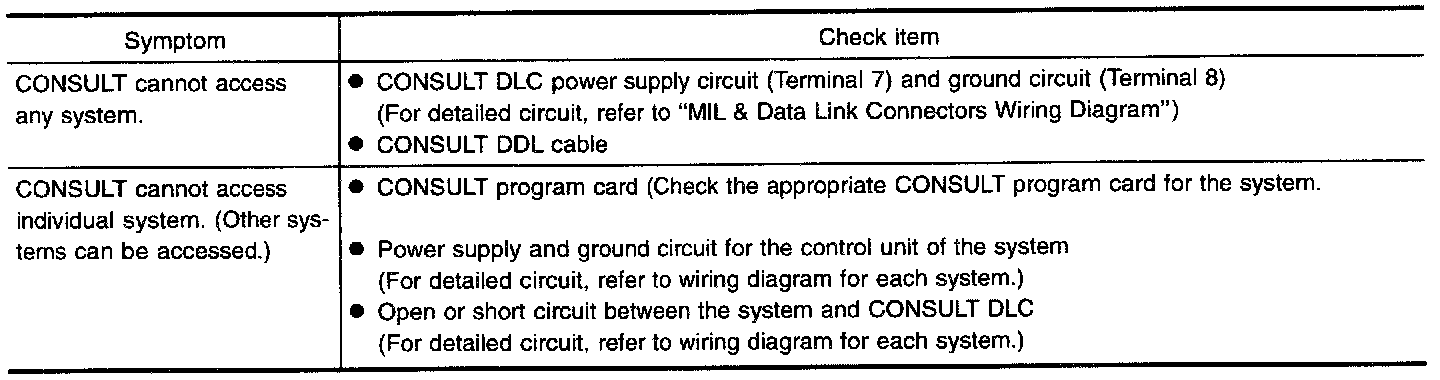

If the CONSULT cannot diagnose the system properly, check the following items.
