System Specifications

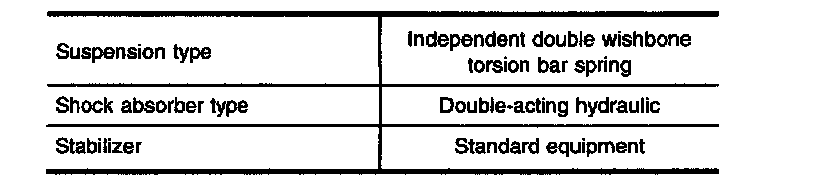

General Specifications

WHEEL BEARING

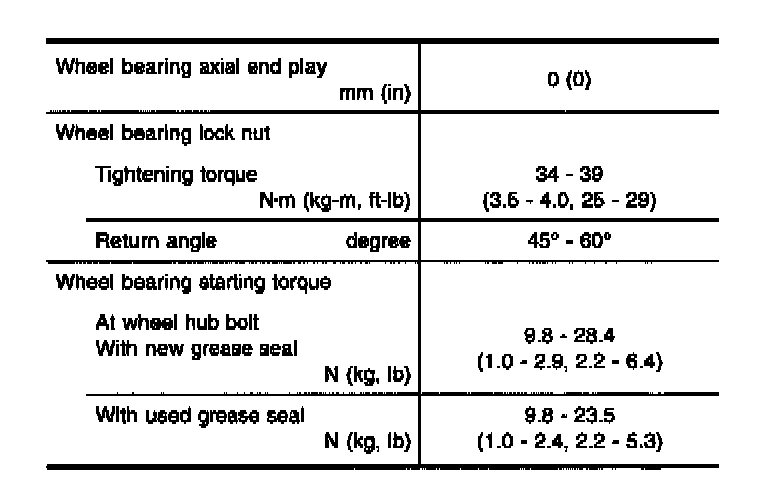

2WD

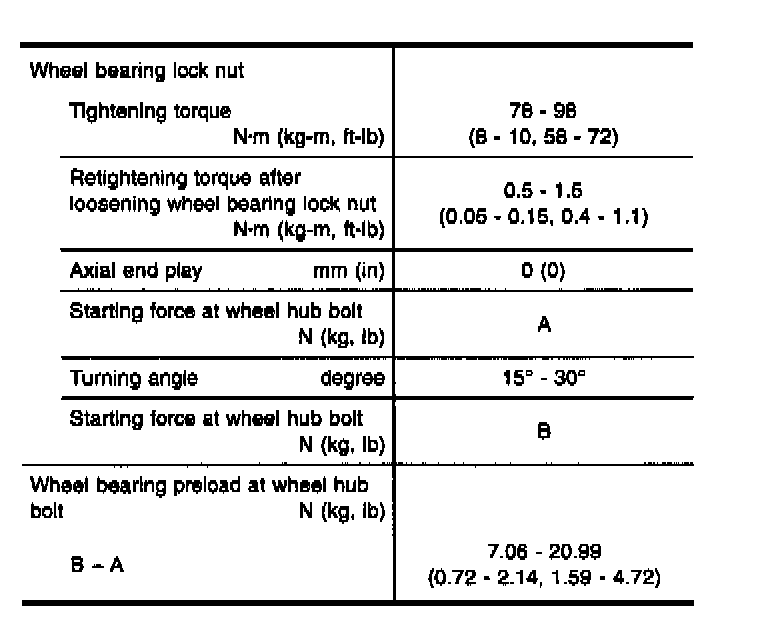

4WD

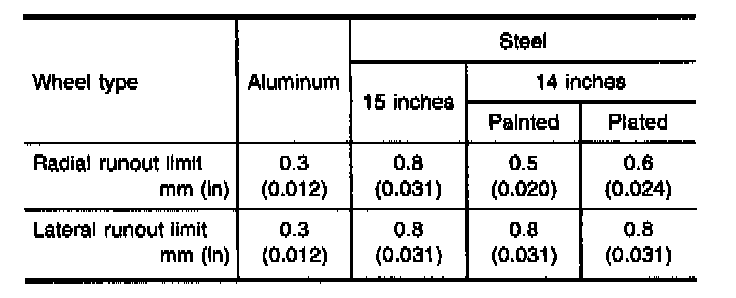

WHEEL RUNOUT AVERAGE*

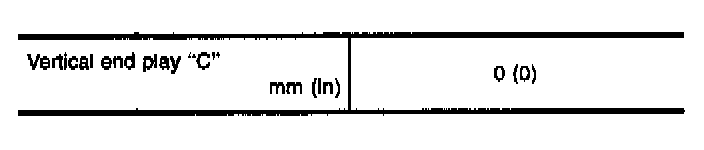

UPPER BALL JOINT

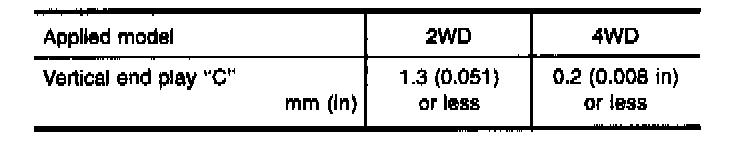

LOWER BALL JOINT

WHEEL ALIGNMENT (Unladen*1)

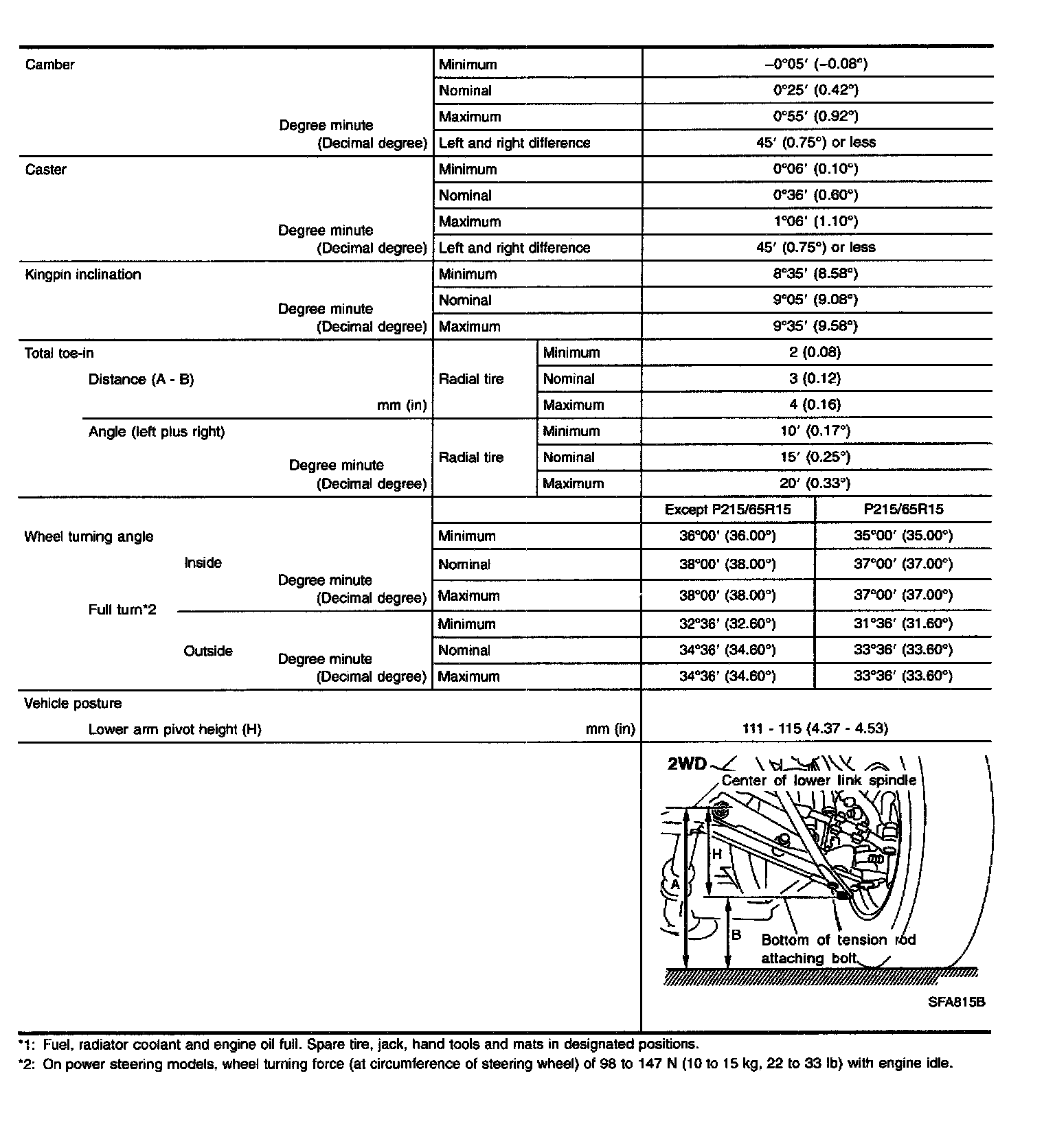

2WD

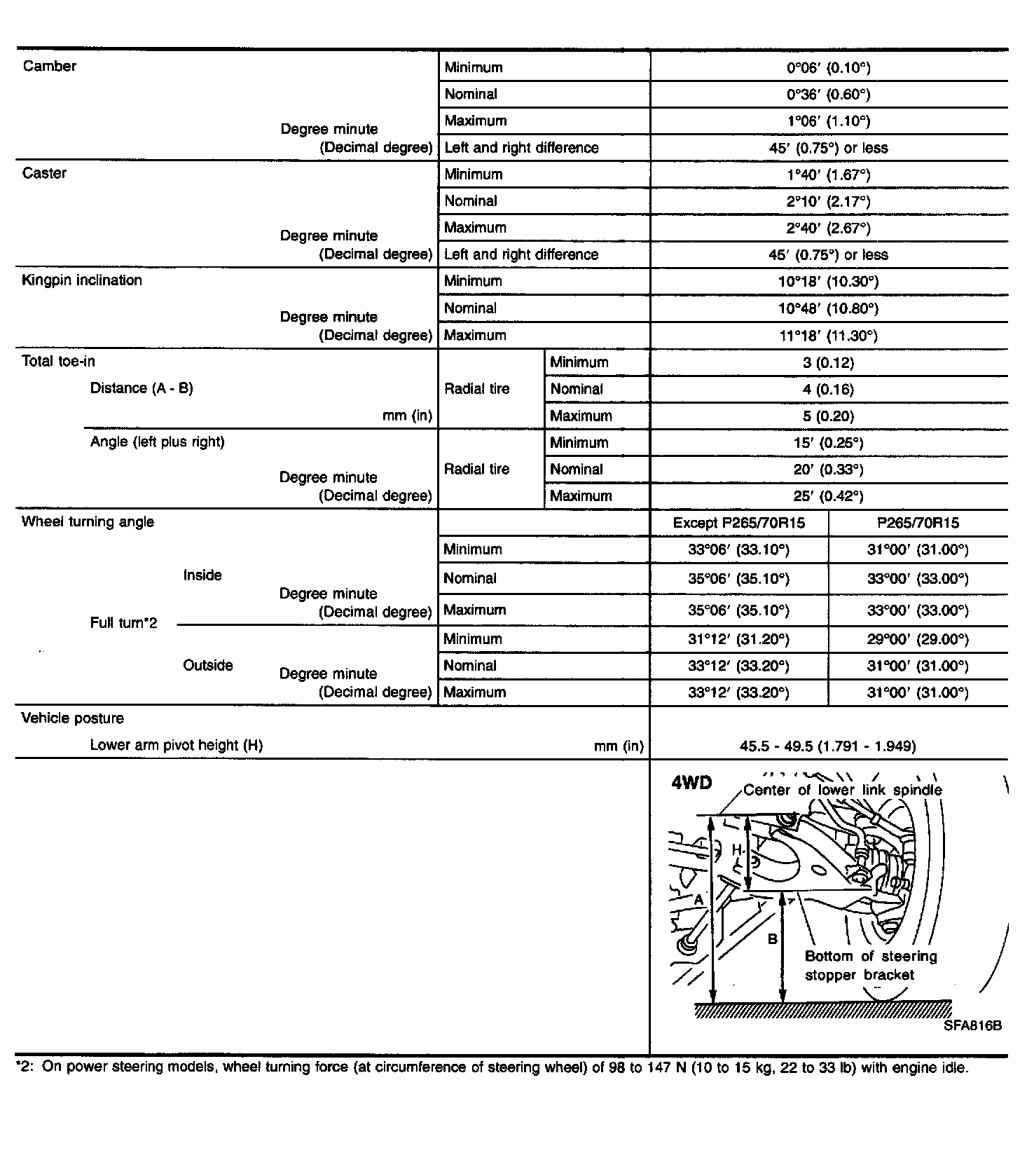

4WD

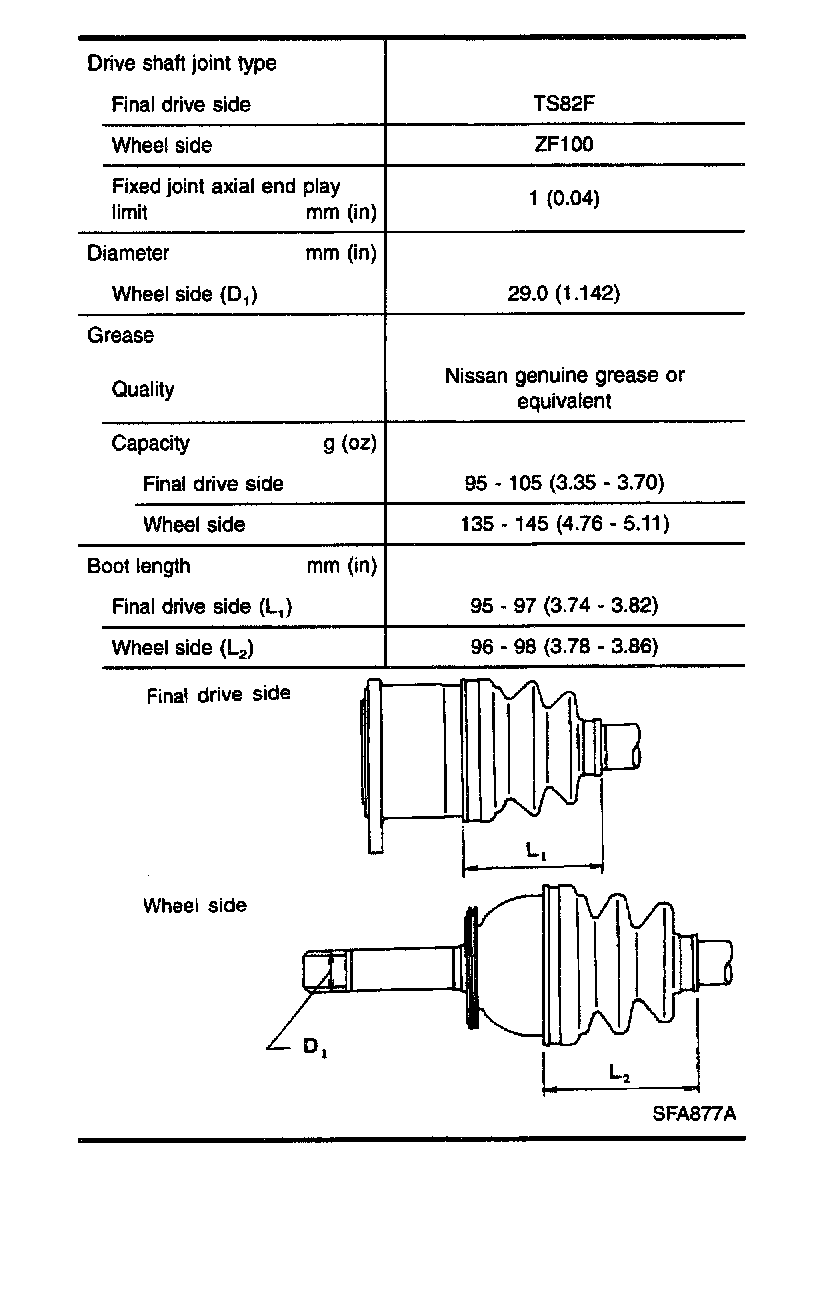

DRIVE SHAFT (4WD)

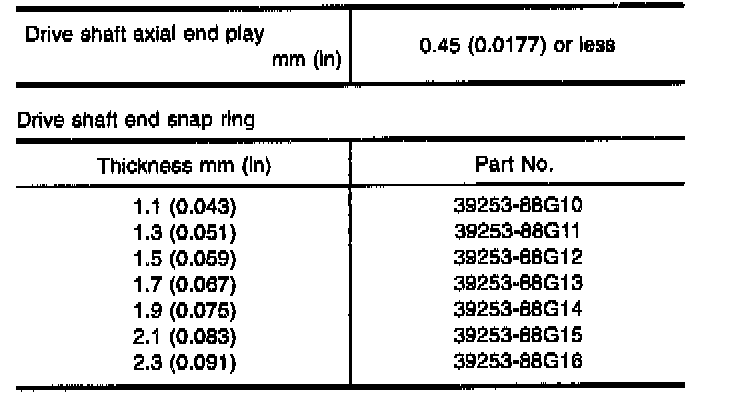

Drive shaft axial end play
