CONSULT-II Data Link Connector (DLC) Circuit




Consult Data Link Connector (DLC) Circuit




Inspection Procedure

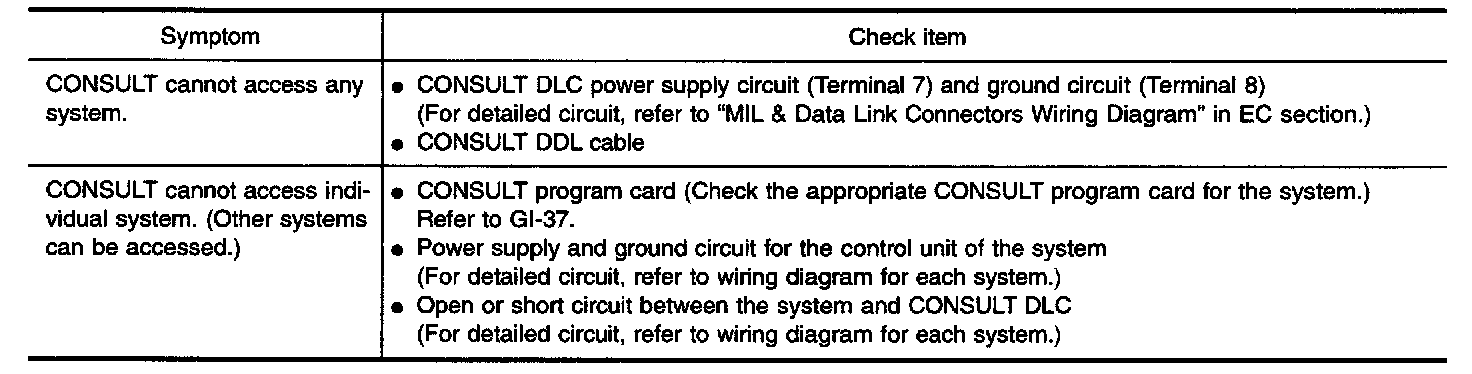

If the CONSULT cannot diagnose the system properly, check the following items.
