Operation CHARM
: Car repair manuals for everyone.
Home
>>
Nissan-Datsun
>>
2000
>>
Quest Minivan GLE V6-3.3L (VG33E)
>>
Repair and Diagnosis
>>
Cruise Control
>>
Cruise Control Switch
>>
Testing and Inspection
Cruise Control Switch: Testing and Inspection

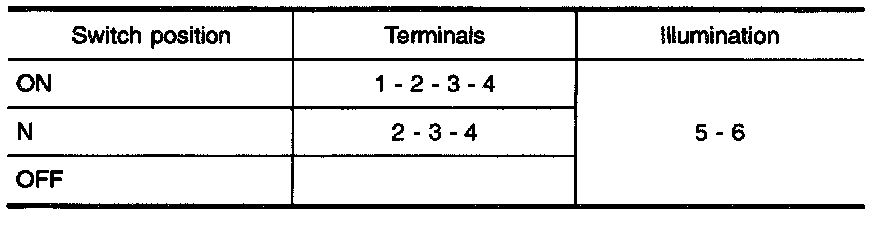

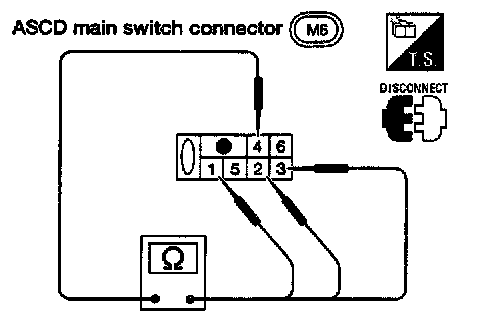

ASCD MAIN SWITCH
Check continuity between terminals by pushing switch to each position.

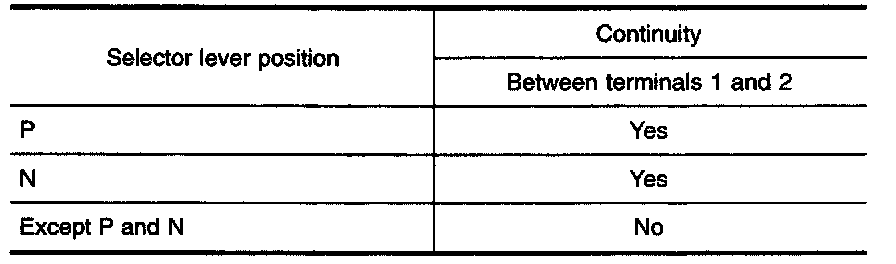

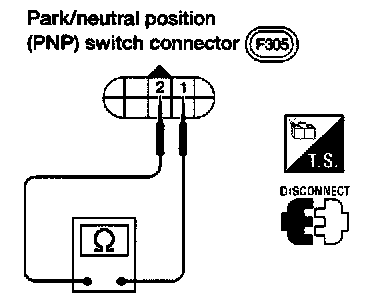

PARK NEUTRAL POSITION (PNP) SWITCH
