Nissan-Datsun
>>
2000
>>
Quest Minivan GLE V6-3.3L (VG33E)
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Fuses/Circuit Breaker/Fusable Link/Fuse Block/Relay Box
>>

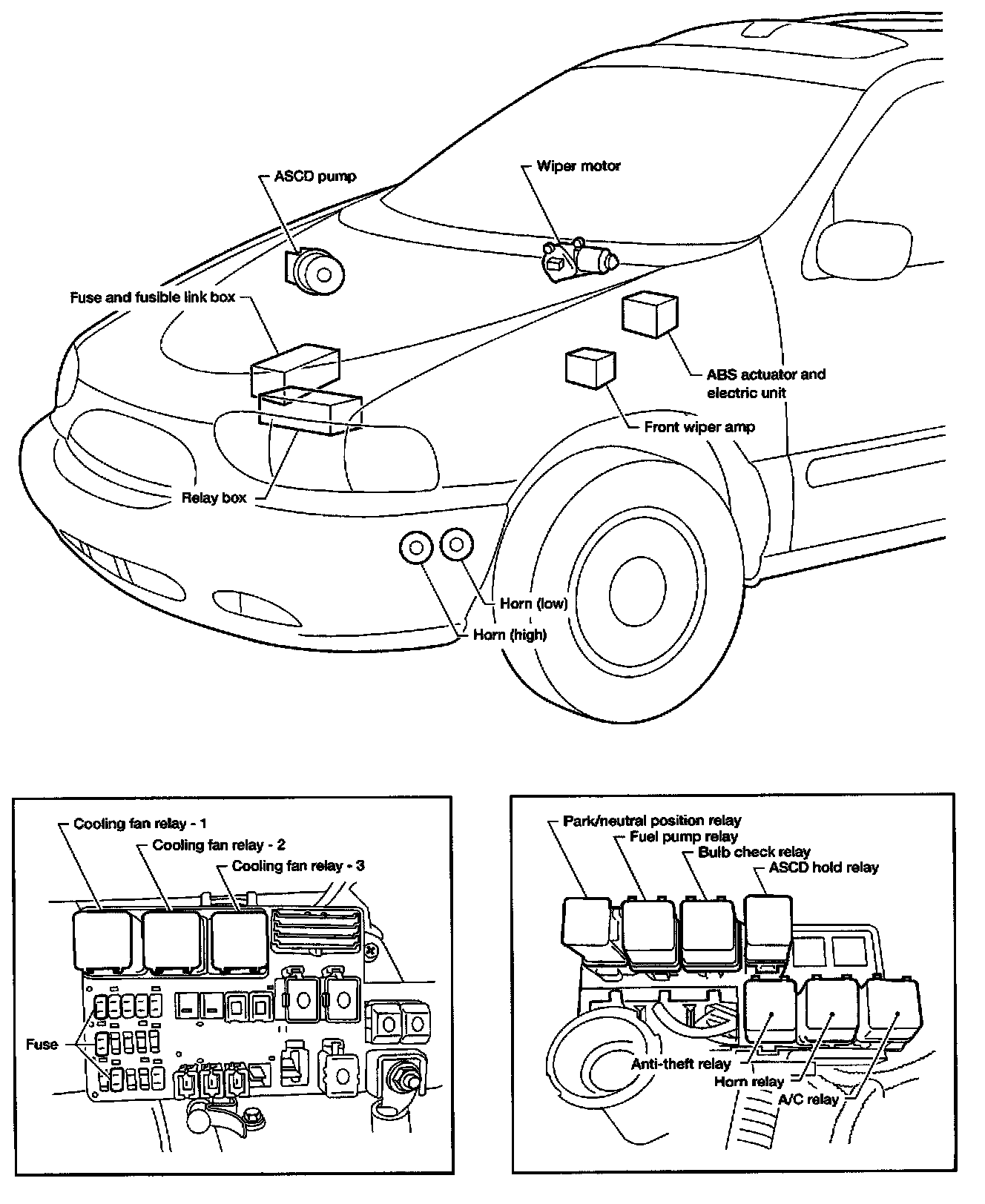

A/C Relay
A/C Relay
Engine Compartment
