Quest Minivan GLE V6-3.3L (VG33E)
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Modules/Control Units/Actuators
>>
Headlamp Control Unit
Headlamp Control Unit

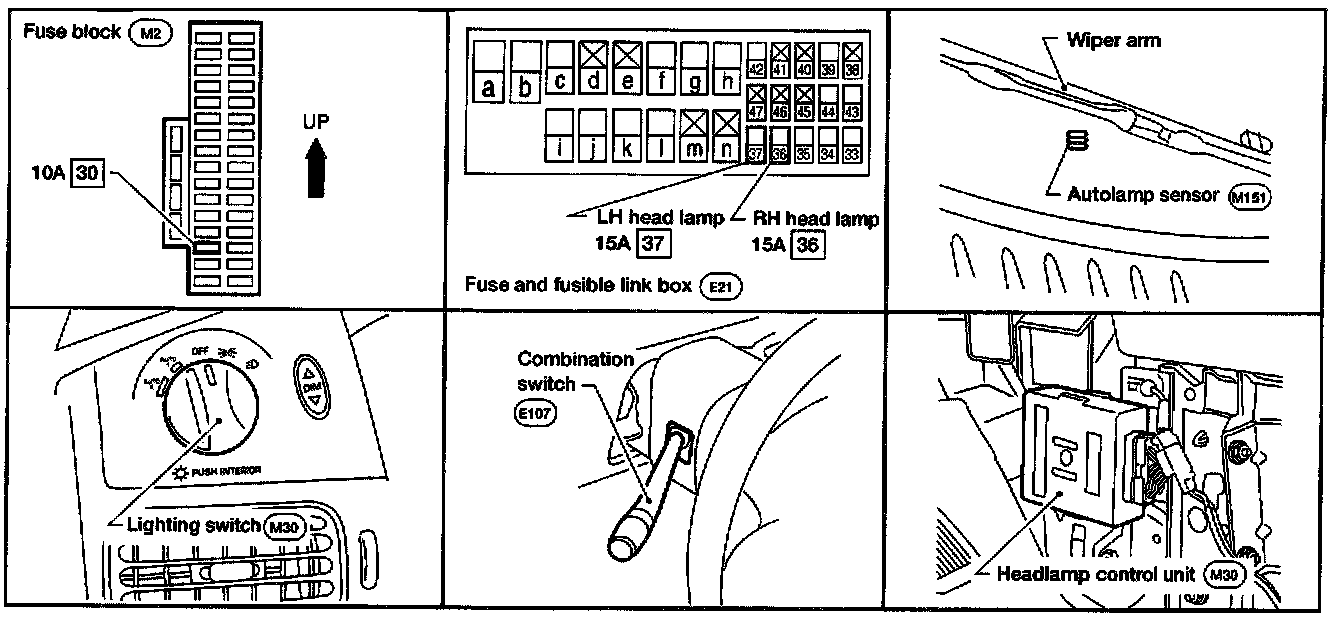

Component Parts and Harness Connector Location

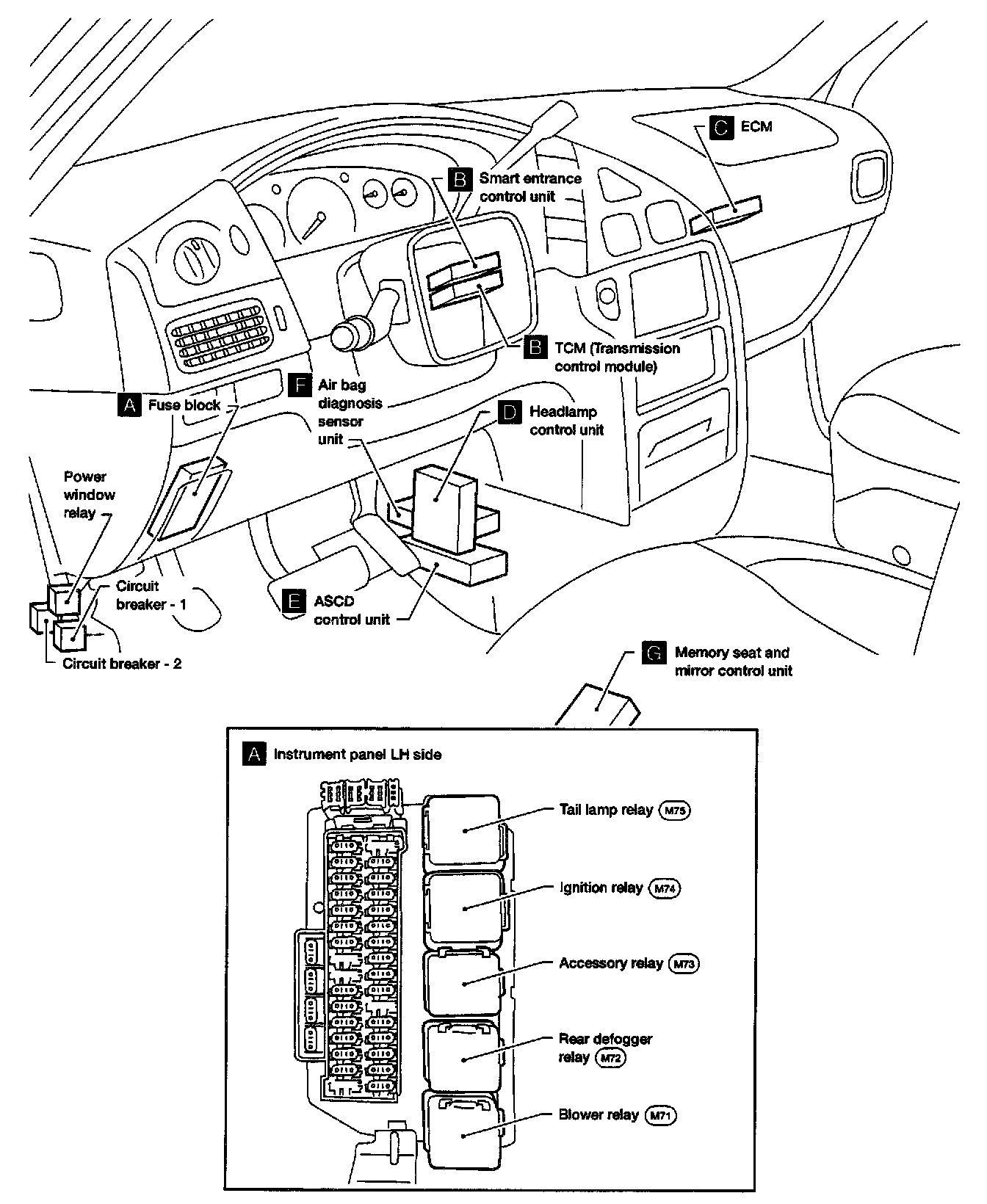

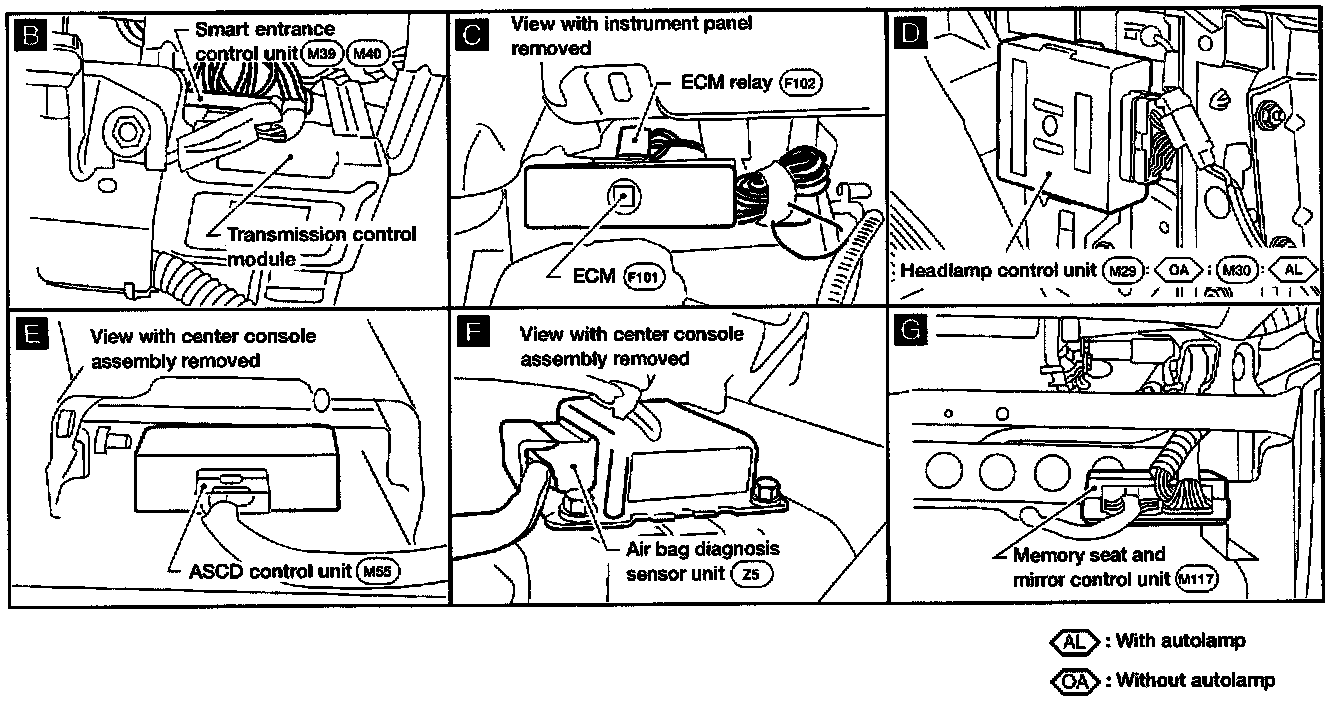

Passenger Compartment
