Operation CHARM
: Car repair manuals for everyone.
Home
>>
Nissan-Datsun
>>
2000
>>
Quest Minivan GLE V6-3.3L (VG33E)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
Computers and Control Systems
>>
Engine Control Module
Engine Control Module

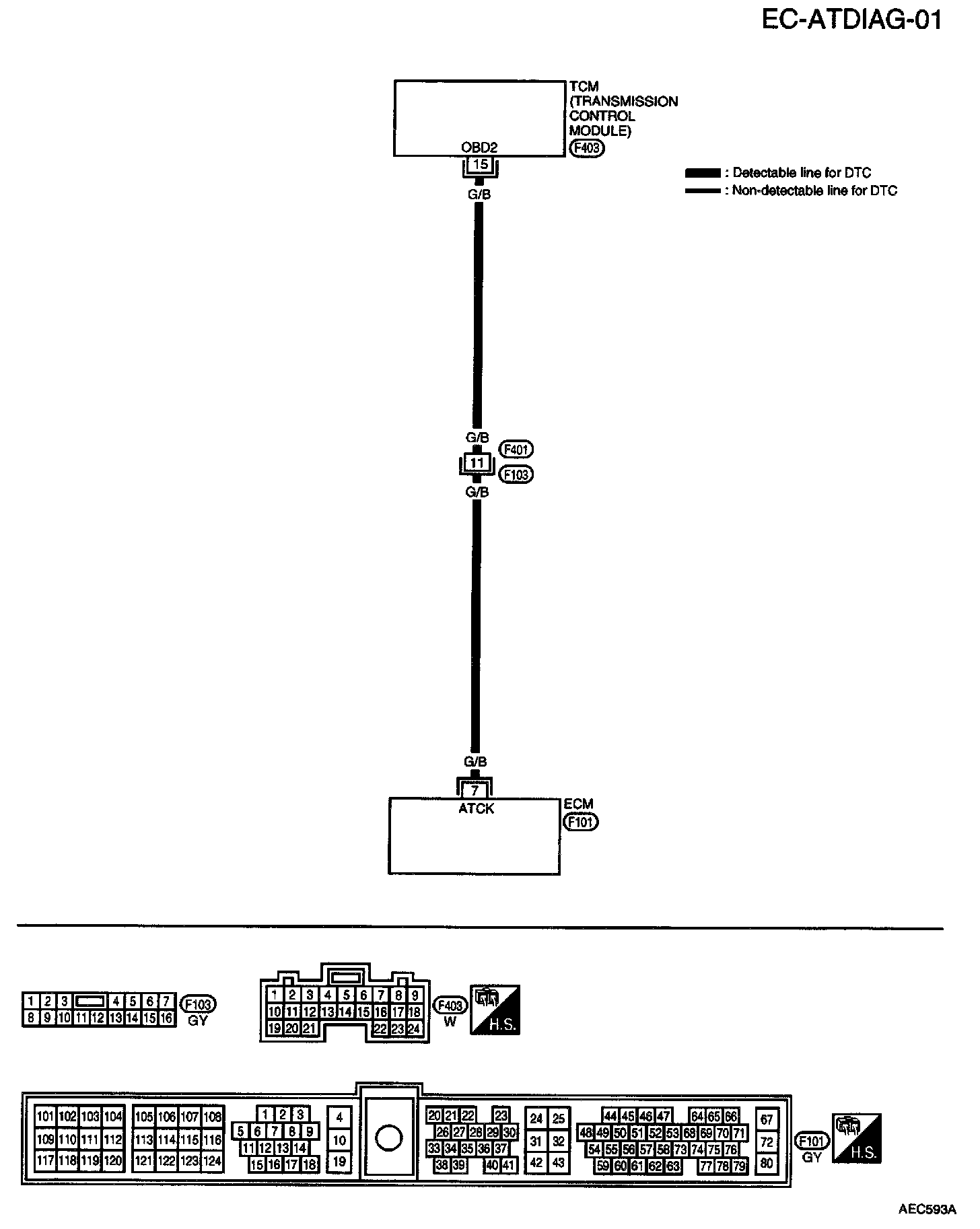

EC-ATDIAG-01:
