Cylinder Block Assembly

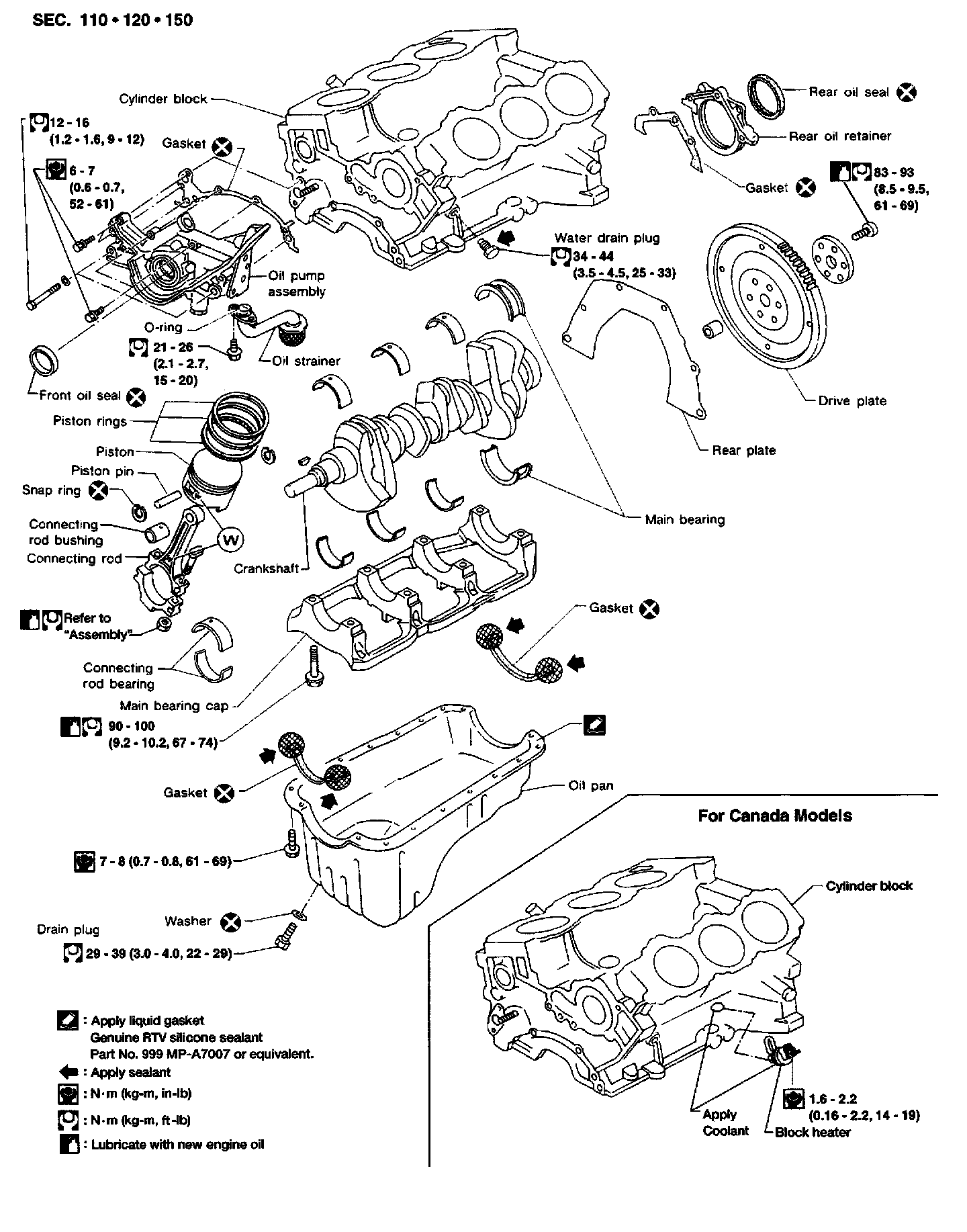

CYLINDER BLOCK REPLACEMENT AND OVERHAUL W/ RELATED COMPONENTS





Part 1 of 2





Part 2 of 2
