Operation CHARM
: Car repair manuals for everyone.
Home
>>
Nissan-Datsun
>>
2000
>>
Quest Minivan GLE V6-3.3L (VG33E)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Description and Operation
>>
Overall System
Overall System

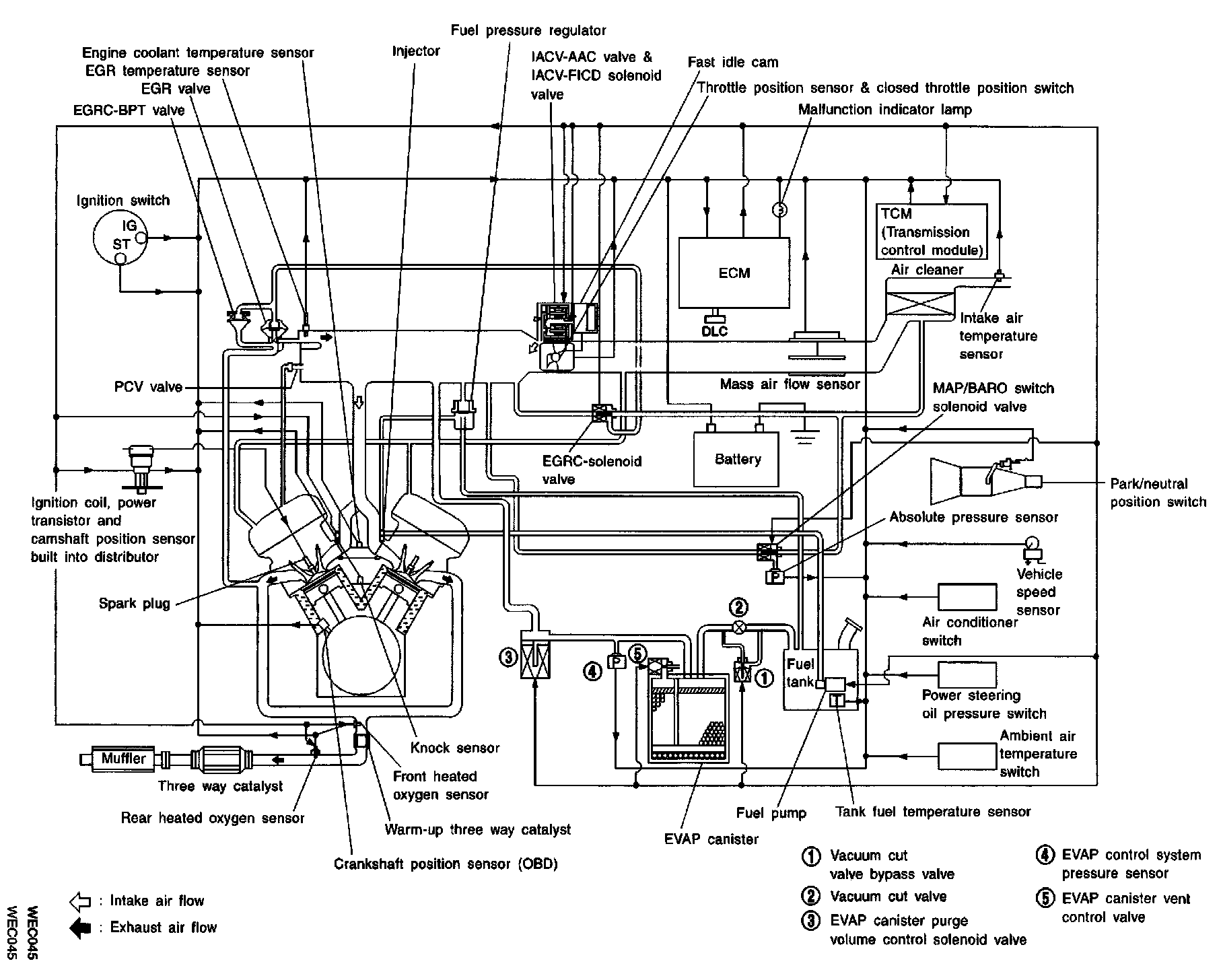

System Diagram (FOR CALIFORNIA):
System Diagram (EXCEPT FOR CALIFORNIA):
