Emission Control Systems: Locations

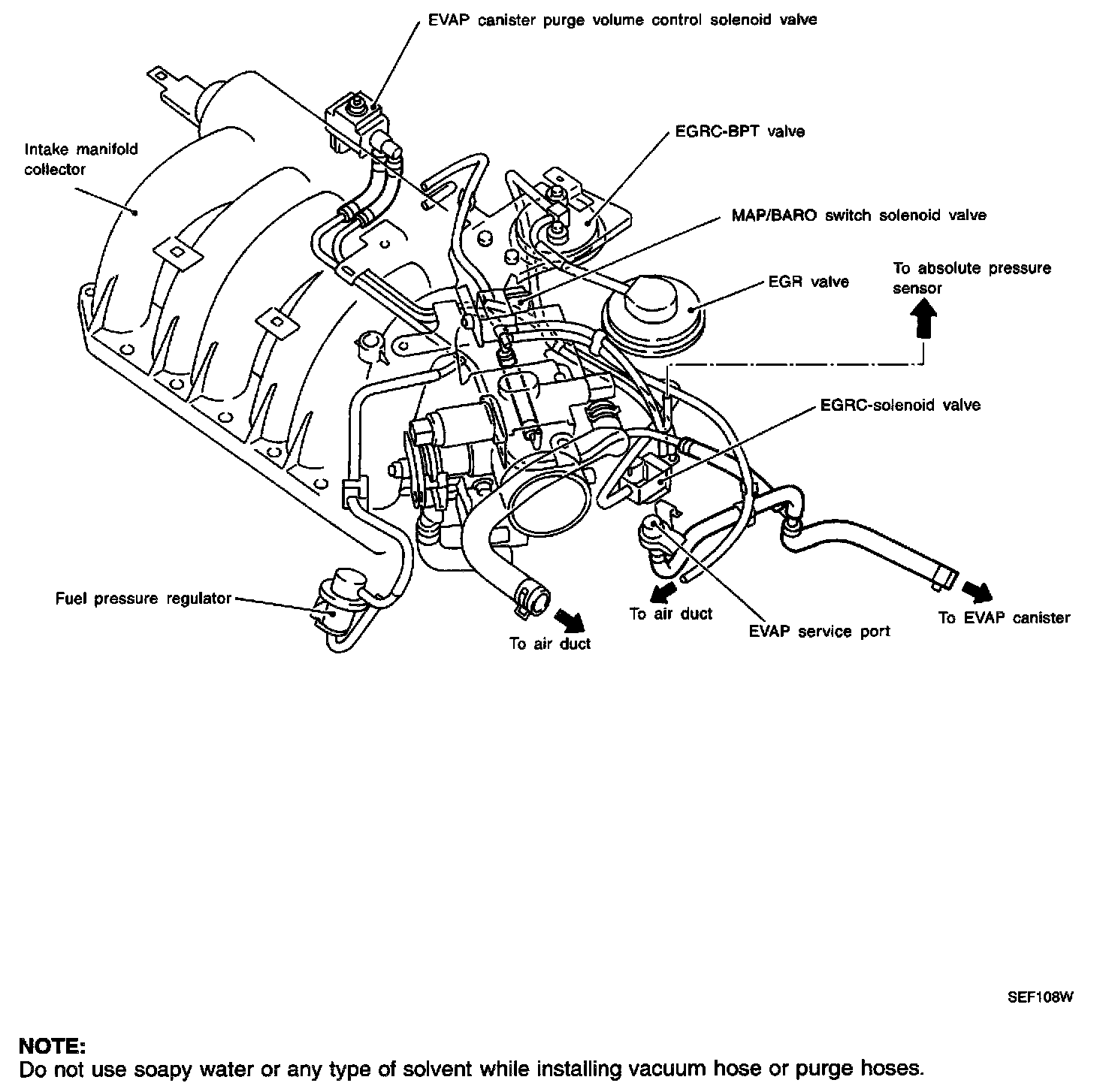

EVAPORATIVE EMISSION LINE DRAWING (Part 1 Of 2):

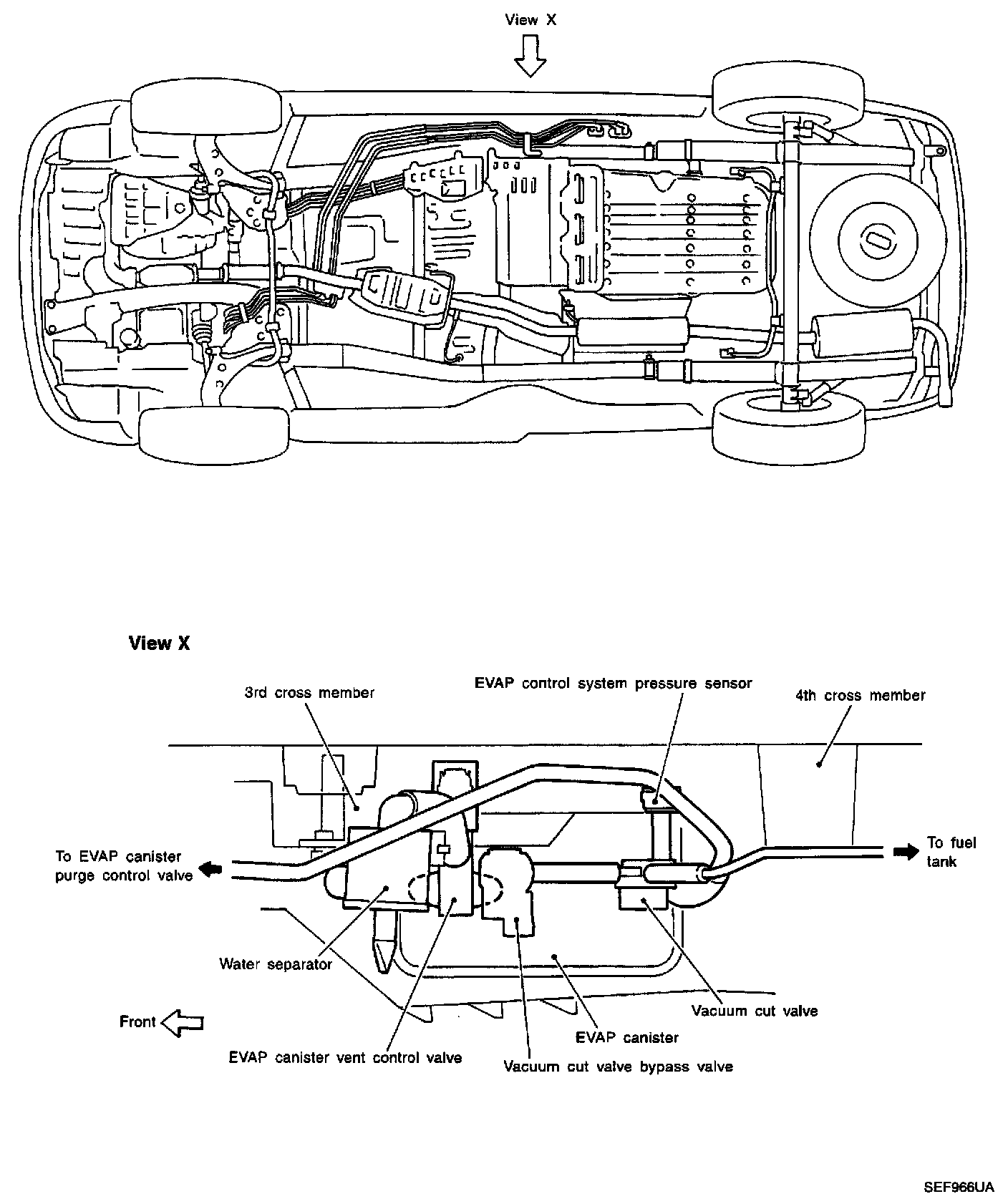

EVAPORATIVE EMISSION LINE DRAWING (Part 2 Of 2):
