Headlamp Control Module: Locations

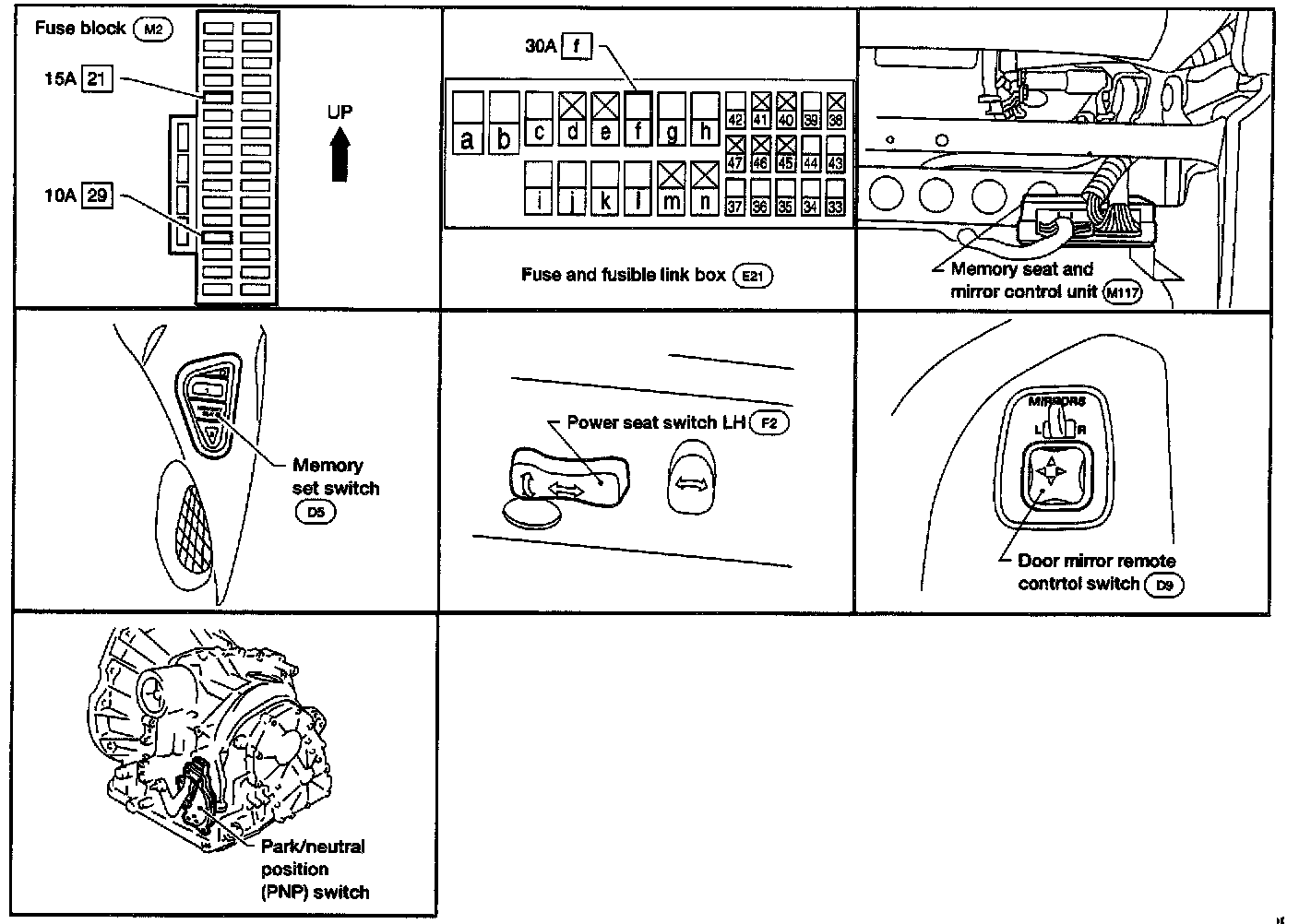

Component Parts and Harness Connector Location








Passenger Compartment
