P0134







Component Description
The heated oxygen sensor 1 (front) is placed into the front tube. It detects the amount of oxygen in the exhaust gas compared to the outside air. The heated oxygen sensor 1 (front) has a closed-end tube made of ceramic zirconia. The zirconia generates voltage from approximately 1 V in richer conditions to 0 V in leaner conditions. The heated oxygen sensor 1 (front) signal is sent to the ECM. The ECM adjusts the injection pulse duration to achieve the ideal air-fuel ratio. The ideal air-fuel ratio occurs near the radical change from 1 V to 0 V.

Consult-II Reference Value In Data Monitor Mode:






ECM Terminals And Reference Value Part 1:




ECM Terminals And Reference Value Part 2:









On Board Diagnosis Logic

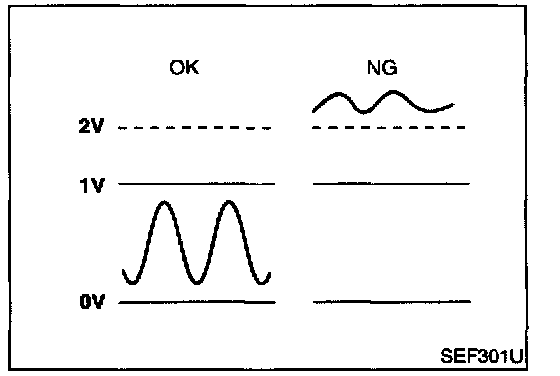

To judge the malfunction, the diagnosis checks that the heated oxygen sensor 1 (front) output is not inordinately high. Malfunction is detected when an excessively high voltage from the sensor is sent to ECM.

Possible Cause
- Harness or connectors
(The sensor circuit is open or shorted.)
- Heated oxygen sensor 1 (front)

DTC Confirmation Procedure

NOTE: If "DTC Confirmation Procedure" has been previously conducted, always turn ignition switch "OFF" and wait at least 10 seconds before conducting the next test.

With CONSULT-II
1. Start engine and warm it up to normal operating temperature.
2. Turn ignition switch "OFF" and wait at least 10 seconds.
3. Turn ignition switch "ON".
4. Select "DATA MONITOR" mode with CONSULT-II.




5. Restart engine and let it idle for 25 seconds.
6. If 1st trip DTC is detected, go to "Diagnostic Procedure" below.

With GST
1. Start engine and warm it up to normal operating temperature.
2. Turn ignition switch "OFF" and wait at least 10 seconds.
3. Restart engine and let it idle for 25 seconds.
4. Turn ignition switch "OFF" and wait at least 10 seconds.
5. Restart engine and let it idle for 25 seconds.
6. Select "MODE 3" with GST.
7. If DTC is detected, go to "Diagnostic Procedure" below.
- When using GST, "DTC Confirmation Procedure" should be performed twice as much as when using CONSULT-II because GST cannot display MODE 7 (1st trip DTC) concerning this diagnosis. Therefore, using CONSULT-II is recommended.

Wiring Diagram

EC-O2S1B1-01:

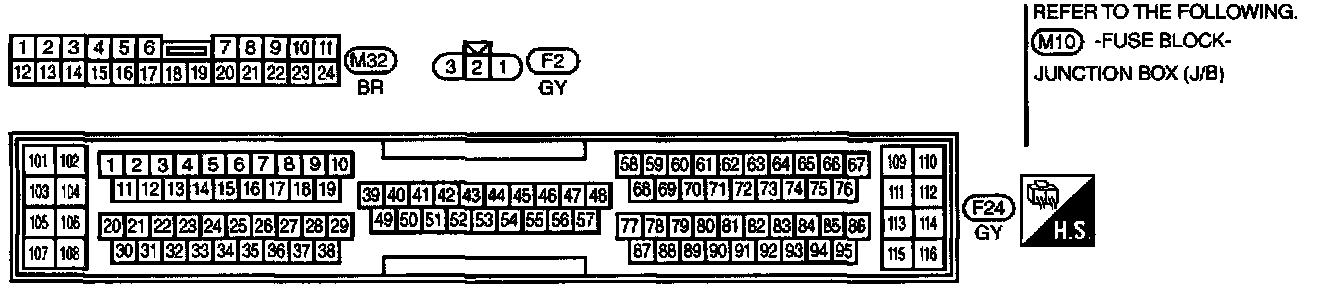

EC-O2S1B1-01 - Connector View:




RIGHT BANK

EC-O2S1B2-01:




EC-O2S1B2-01 - Connector View:




LEFT BANK

Fuse Block - Junction Box (J/B) Terminal Arrangement (E2, E3, E4, M10, M81, M91):






Diagnostic Procedure

Steps 1 - 2:




Steps 3 - 4:




Step 5:

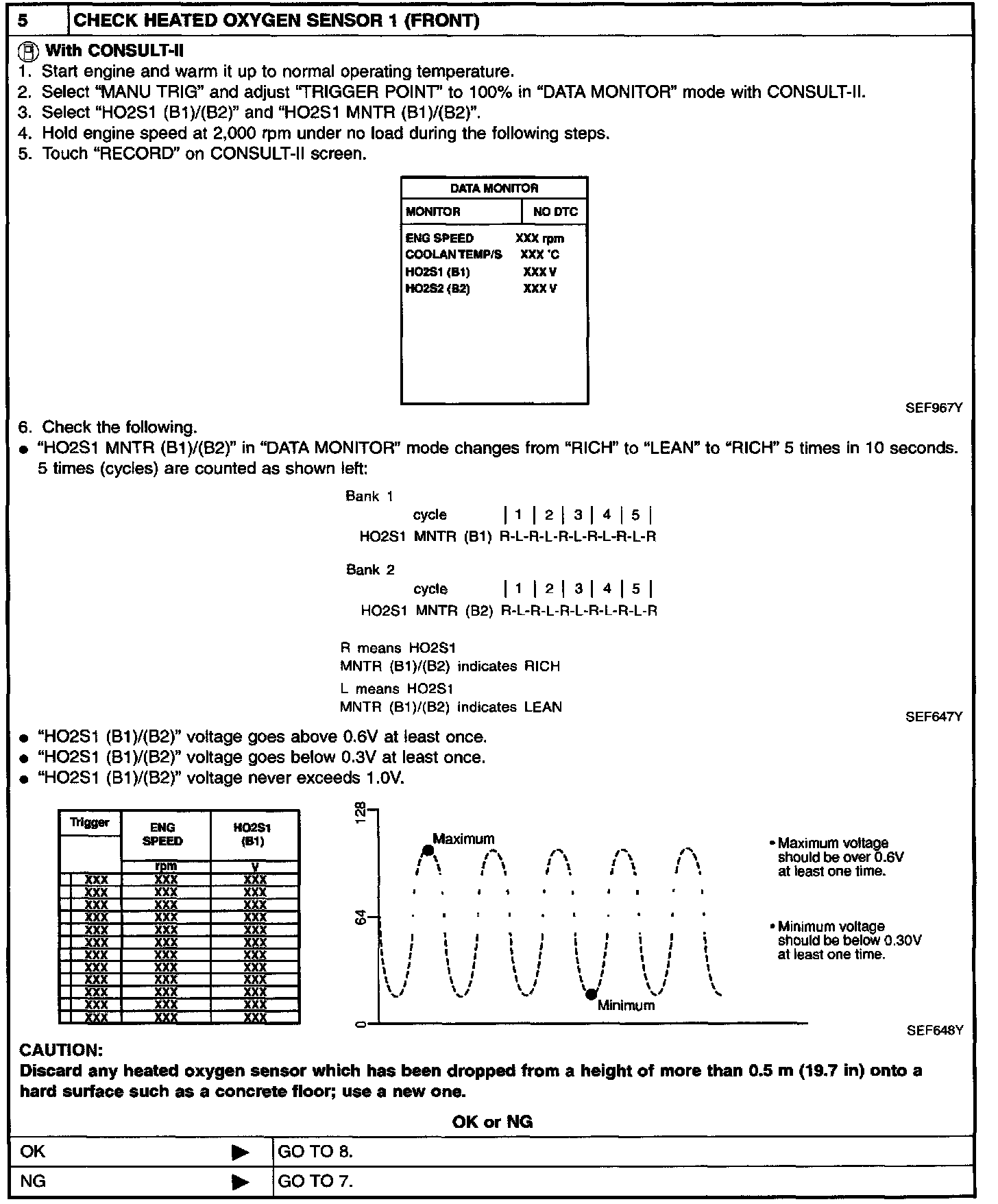

Steps 6 - 8:
