Operation CHARM
: Car repair manuals for everyone.
Home
>>
Nissan-Datsun
>>
2001
>>
Pathfinder XE 4WD V6-3.5L (VQ35)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Transfer Case
>>
System Diagram
>>
ATX14A
ATX14A
OVERHAUL
Transfer Gear Control

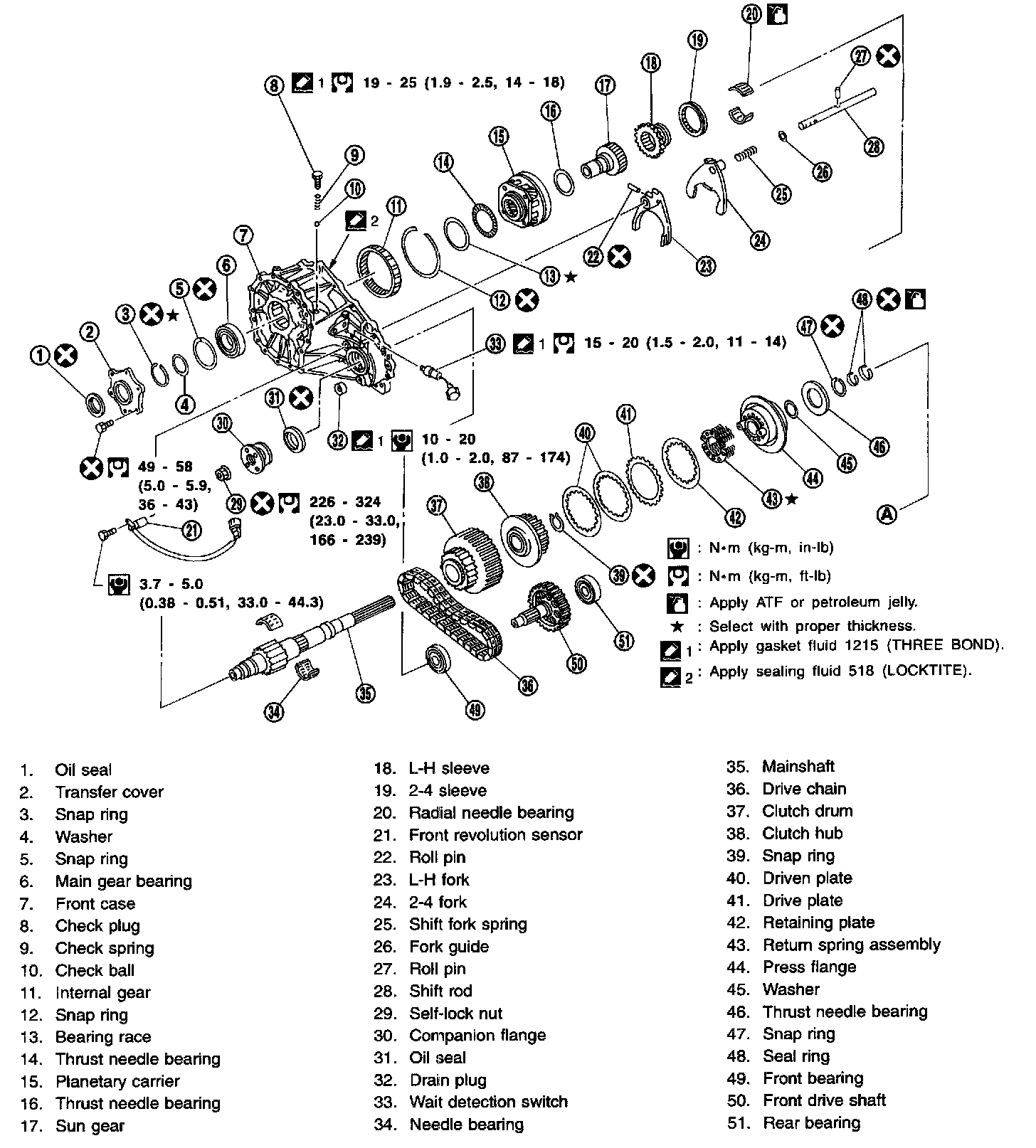

Transfer Components
1 of 2
2 of 2
