Power Steering Oil Pressure Switch

Component Description
The power steering oil pressure switch is attached to the power steering high-pressure tube and detects a power steering load. When a power steering load is detected, it signals the ECM. The ECM adjusts the IACV-AAC valve to increase the idle speed and adjust for the increased load.

Consult-II Reference Value In Data Monitor Mode:

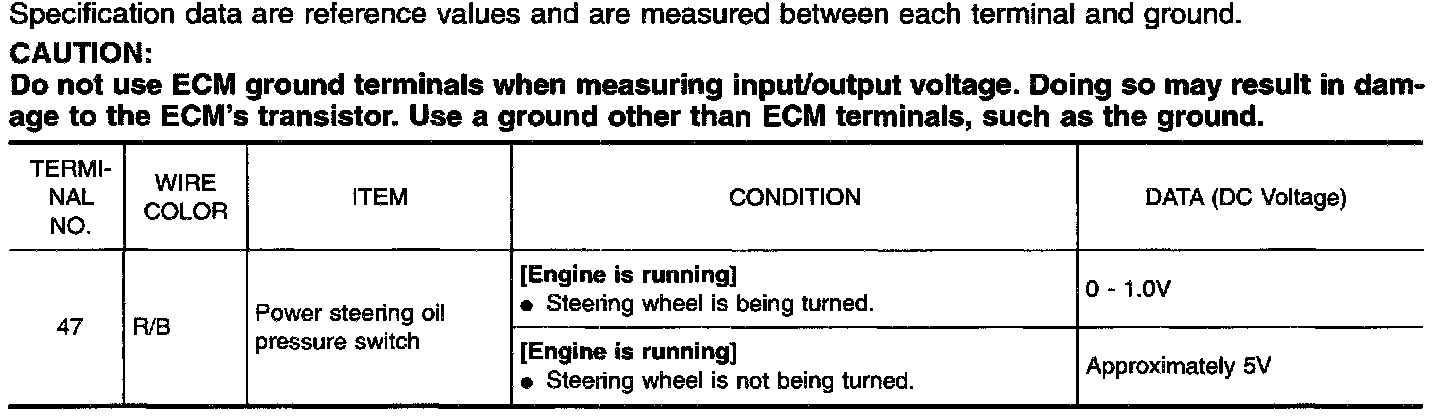

ECM Terminals And Reference Value:

EC-PST/SW-01:

EC-PST/SW-01 - Connector View:

Wiring Diagram

Super Multiple Junction (SMJ) Terminal Arrangement (B1, E1, M1, M2):

Steps 1 - 3:

Steps 4 - 6:

Step 7:

Diagnostic Procedure
