Control Module Pinout Values

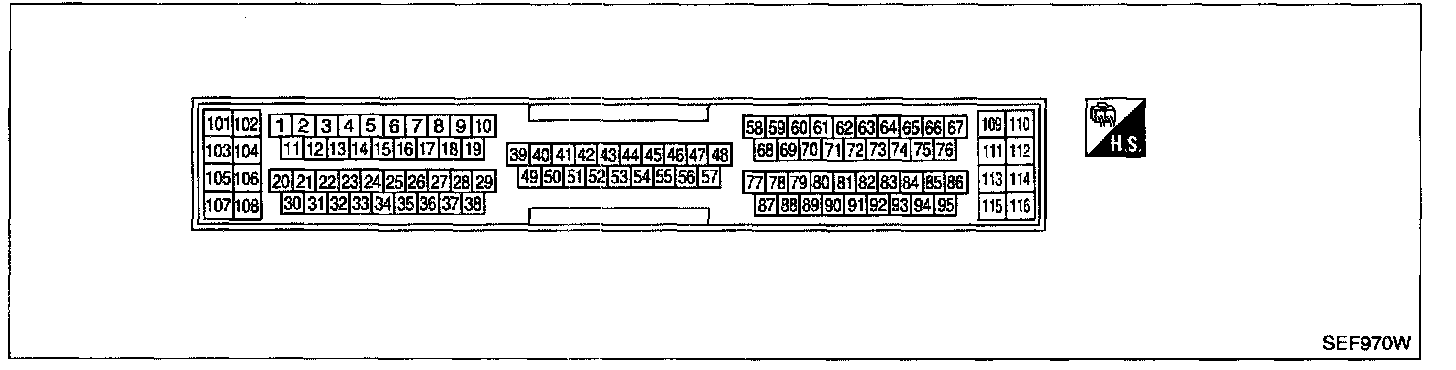

ECM Harness Connector Terminals Layout:

Part 1:

Part 2:

Part 3:

Part 4:

Part 5:

Part 6:

Part 7:

Part 8:

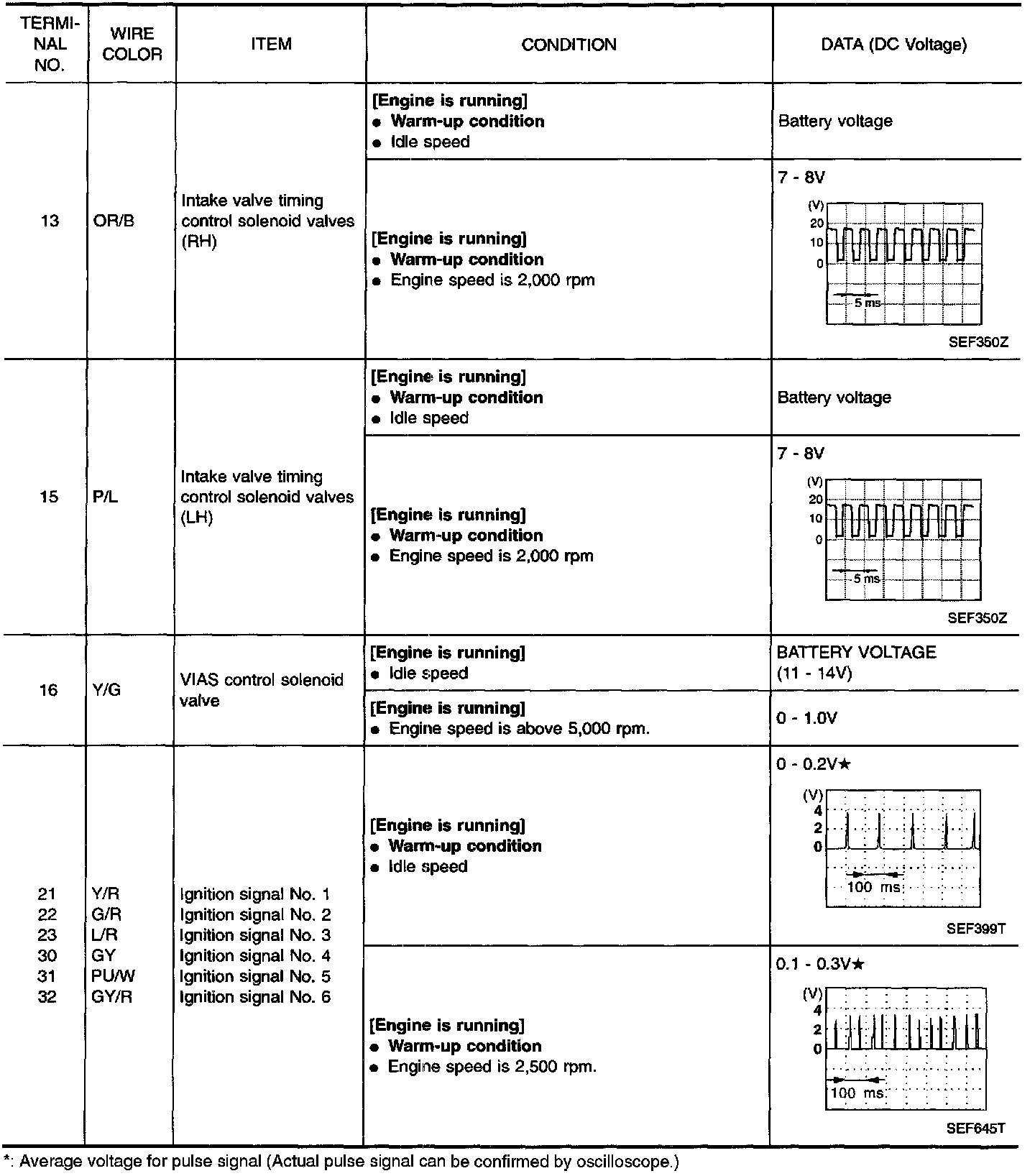

ECM INSPECTION TABLE
Specification data are reference values and are measured between each terminal and ground.

CAUTION: Do not use ECM ground terminals when measuring the input/output voltage. Doing so may result in damage to the ECM's transistor. Use ground other than the ECM terminals, such as the ground.
