Operation CHARM
: Car repair manuals for everyone.
Home
>>
Nissan-Datsun
>>
2001
>>
Pathfinder XE 4WD V6-3.5L (VQ35)
>>
Repair and Diagnosis
>>
Sensors and Switches
>>
Sensors and Switches - Powertrain Management
>>
Sensors and Switches - Computers and Control Systems
>>
Air Flow Meter/Sensor
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

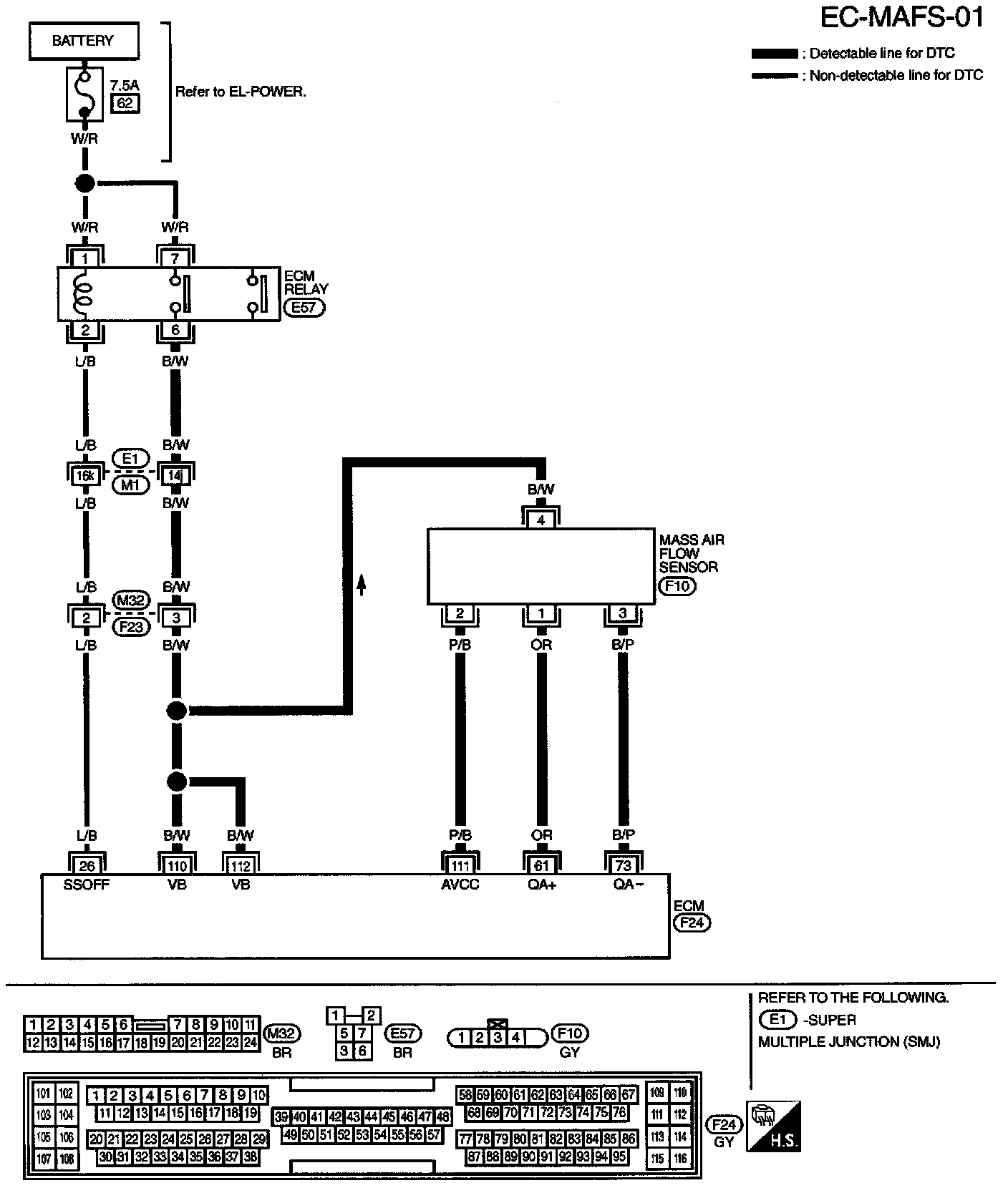

EC-MAFS-01:
