Operation CHARM
: Car repair manuals for everyone.
Home
>>
Nissan-Datsun
>>
2001
>>
Quest Minivan SE V6-3.3L (VG33E)
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Headlamp
>>
Headlamp Control Module
>>
Testing and Inspection
>>
USA
USA
Headlamp Control Unit Connectors (USA):

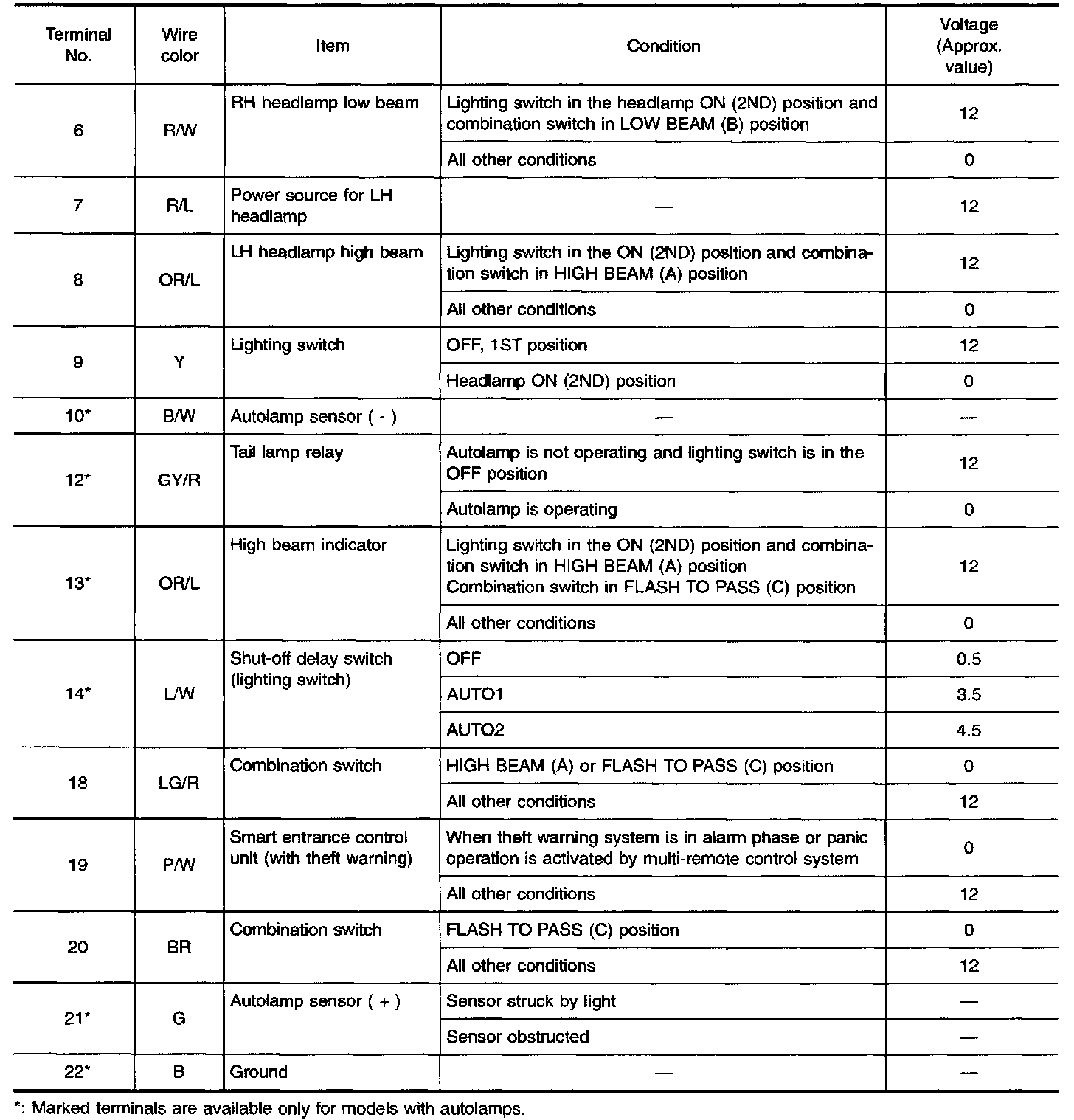

Headlamp Control Unit Inspection Table Part 1:
Headlamp Control Unit Inspection Table Part 2:
