Without Consult-II

DESCRIPTION
- The purpose of the test is to determine overall performance of A/T and analyze causes of problems.
- The road test consists of the following three parts:





1. Check before engine is started
2. Check at idle
3. Cruise test





- Before road test, familiarize yourself with all test procedures and items to check.
- Conduct tests on all items until specified symptom is found. Troubleshoot items which check out No Good after road test.

1.CHECK BEFORE ENGINE IS STARTED





Checks 1 and 2

2.CHECK AT IDLE





Checks 1 - 2





Checks 3 - 4





Checks 5 - 6





Check 7

3.CRUISE TEST
- Check all items listed in Parts 1 through 3.





- Throttle position sensor can be checked by voltage across terminals 41 and 42 of TCM.

CRUISE TEST - PART 1

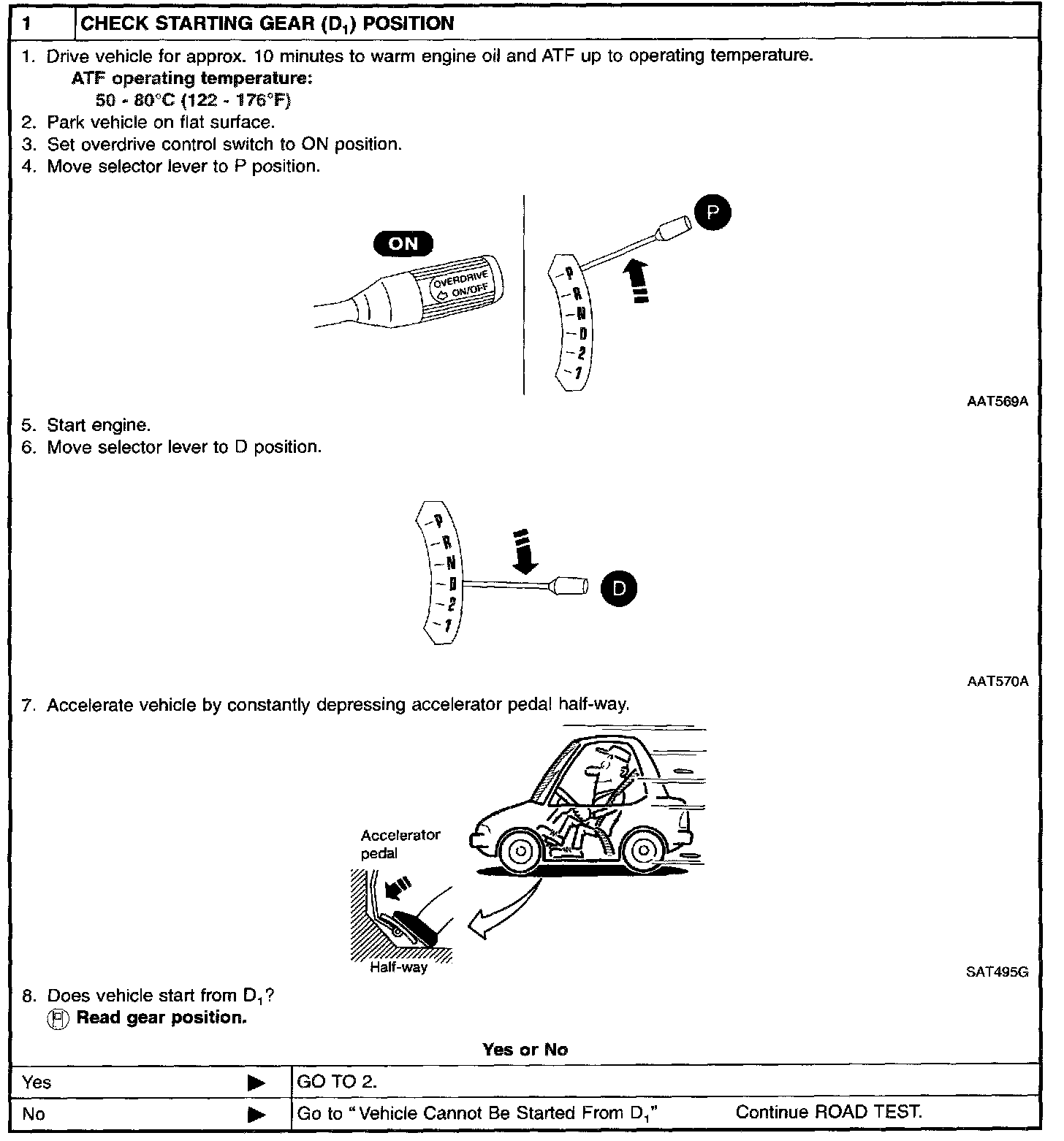

Check 1





Checks 2 - 4





Checks 5 - 7





Check 8

CRUISE TEST - PART 2





Checks 1 and 2





Checks 3 and 4

CRUISE TEST - PART 3





Check 1

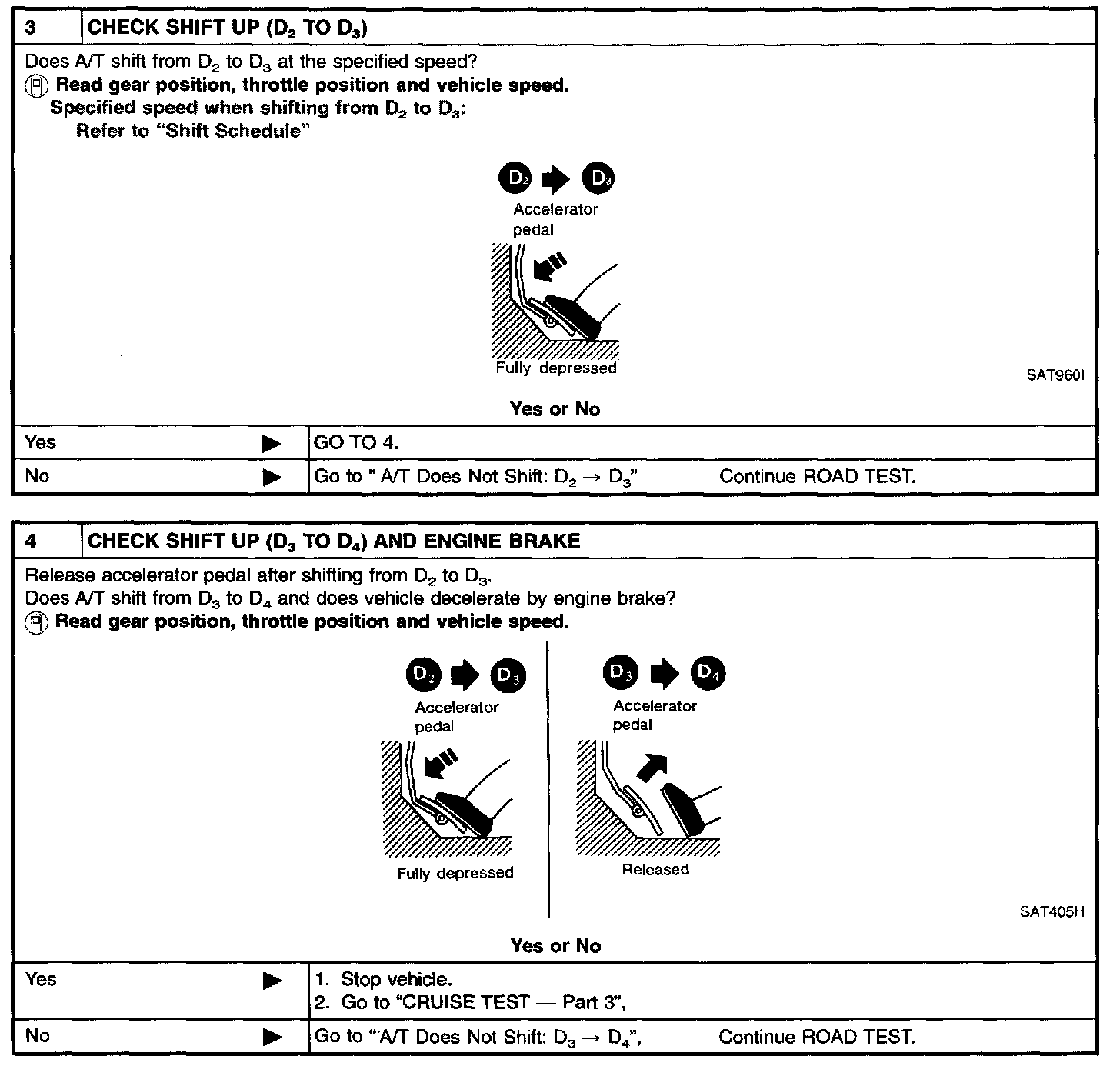

Checks 2 - 4





Checks 5 and 6
