Diagnostic Procedure 9
Diagnostic Procedure 9

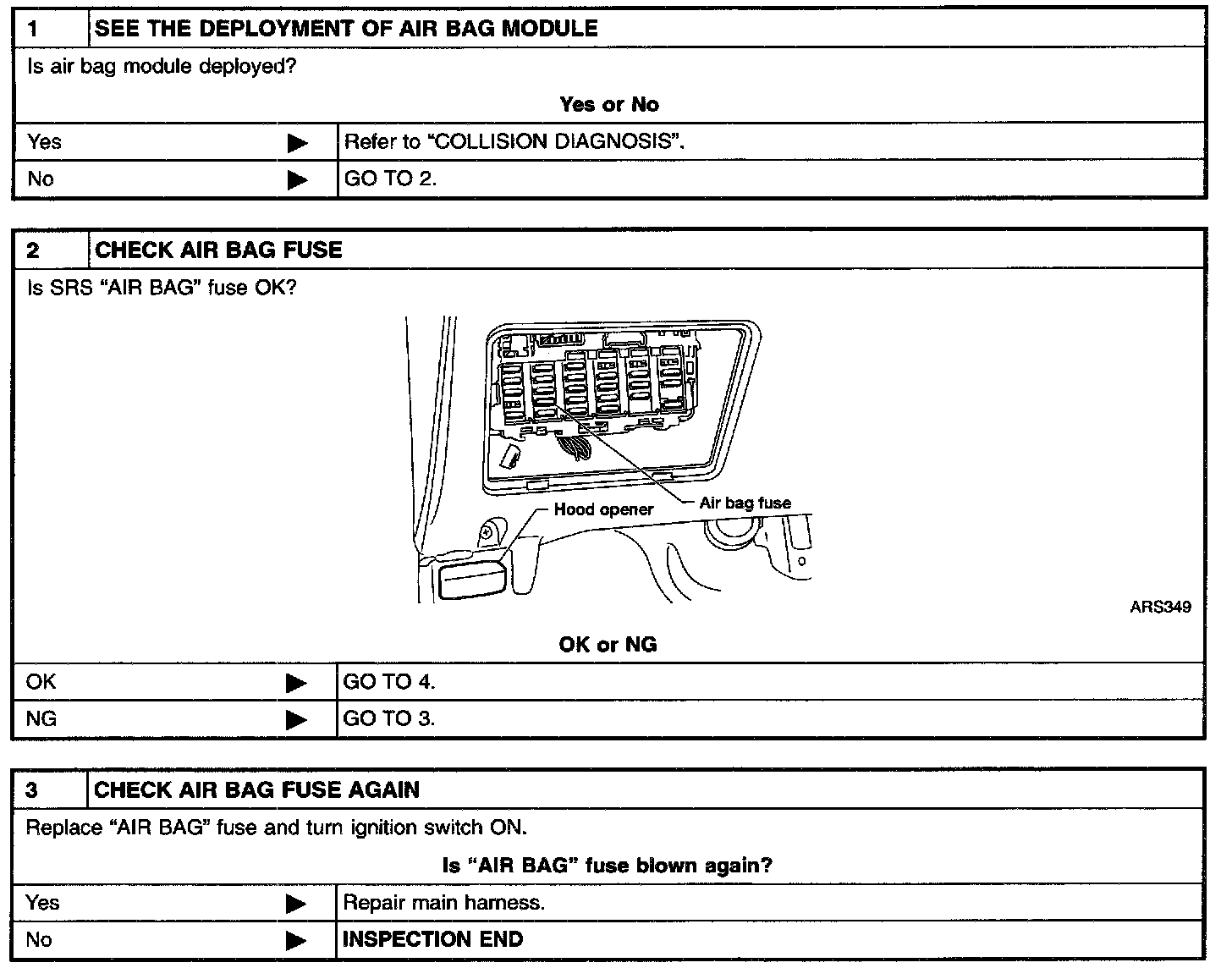

Diagnostic Procedure 9 ("Air Bag" Warning Lamp Does Not Turn Off) Steps 1 - 3:

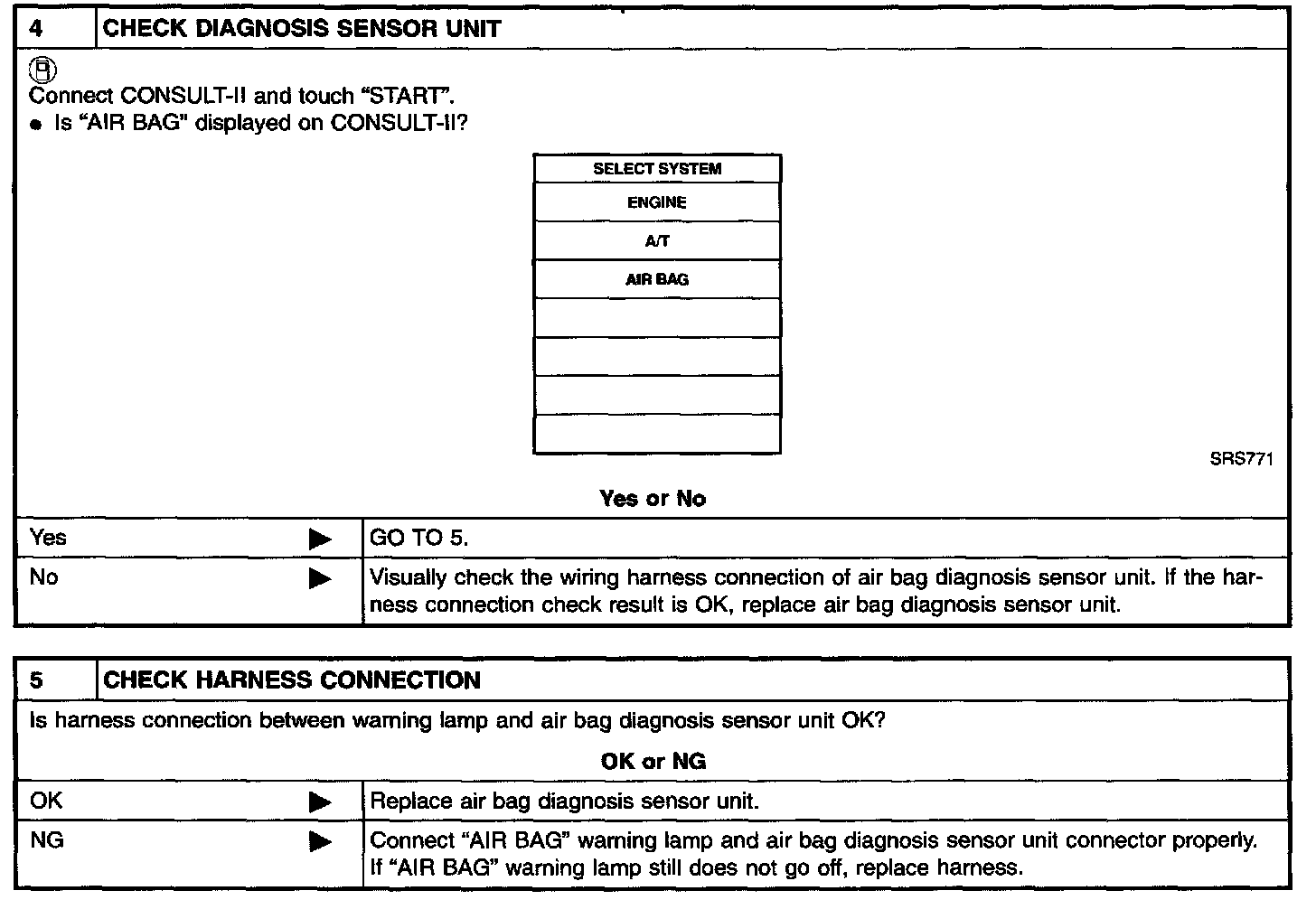

Diagnostic Procedure 9 ("Air Bag" Warning Lamp Does Not Turn Off) Steps 4 - 5:
