Removal and Installation For Audio Unit

Removal and Installation

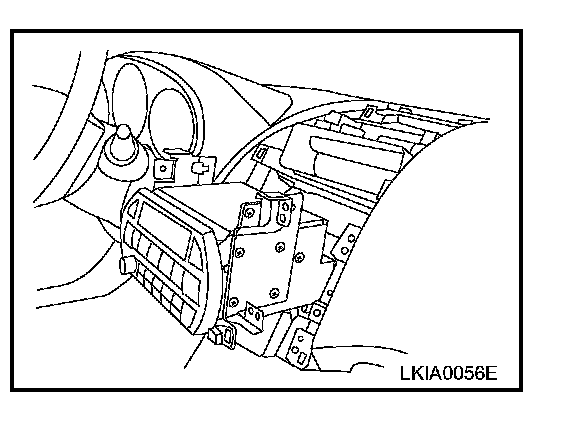

AUDIO UNIT
1. Remove cluster lid C, refer to "Cluster Lid C"
2. Remove cluster lid D, refer to "Cluster Lid D"
3. Remove audio unit screws, using power tools, and slide unit rearward.
4. Disconnect electrical connectors, antenna cable, and remove audio unit.

Install in the reverse order of removal.
