Band Servo Piston Assembly

Band Servo Piston Assembly






DISASSEMBLY





1. Remove band servo piston fixing bolts.





2. Apply compressed air to oil hole in transmission case to remove O/D servo piston retainer and band servo piston assembly.
^ Hold band servo piston assembly with a rag or nylon waste.

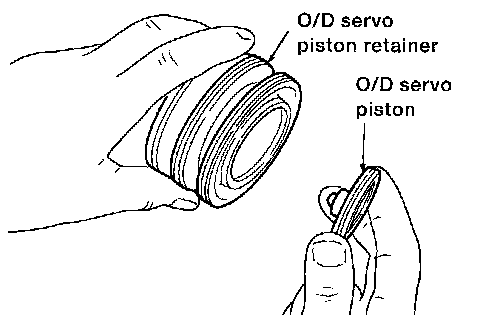

3. Apply compressed air to oil hole in O/D servo piston retainer to remove O/D servo piston from retainer.
Hold O/D band servo piston while applying compressed air.





4. Remove D-ring from O/D servo piston.





5. Remove O-rings from O/D servo piston retainer.





6. Remove band servo piston assembly from servo piston retainer by pushing it forward.





7. Place piston stem end on a wooden block. While pushing servo piston spring retainer down, remove E-ring.





8. Remove O/D servo return spring, band servo thrust washer and band servo piston stem from band servo piston.





9. Remove O-rings from servo piston retainer.





10. Remove D-rings from band servo piston.

INSPECTION
Pistons, Retainers and Piston Stem
^ Check frictional surfaces for abnormal wear or damage.

Return Springs





^ Check for deformation or damage.
^ Measure free length and outer diameter.
Inspection standard: Refer to "Band Servo".

ASSEMBLY





1. Install D-rings to servo piston retainer.
^ Apply ATF to D-rings.
^ Pay attention to position of each O-ring.





2. Install band servo piston stem, band servo thrust washer, O/D servo return spring and spring retainer to band servo piston.





3. Place piston stem end on a wooden block. While pushing servo piston spring retainer down, install E-ring.

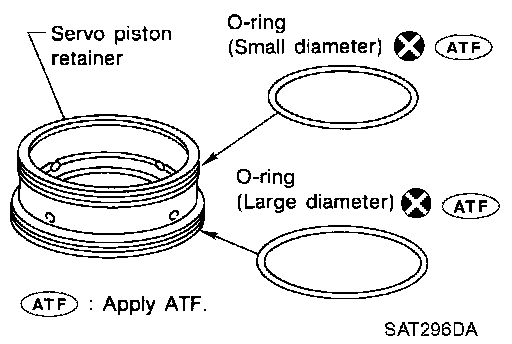

4. Install O-rings to servo piston retainer.
^ Apply ATF to O-rings.
^ Pay attention to position of each O-ring.





5. Install band servo piston assembly to servo piston retainer by pushing it inward.





6. Install D-ring to O/D servo piston.
^ Apply ATF to D-ring.





7. Install O-rings to O/D servo piston retainer.
^ Apply ATF to O-rings.
^ Pay attention to position of each O-ring.





8. Install O/D servo piston to O/D servo piston retainer.





9. Install band servo piston assembly and 2nd servo return spring to transmission case.
^ Apply ATF to O-ring of band servo piston and transmission case.





10. Install O/D servo piston assembly to transmission case.
^ Apply ATF to O-ring of band servo piston and transmission case.





11. Install O/D servo piston retainer to transmission case. Refer to "COMPONENTS".
