Setting/Changing/Canceling Theft Warning System

VEHICLE SECURITY (THEFT WARNING SYSTEM)

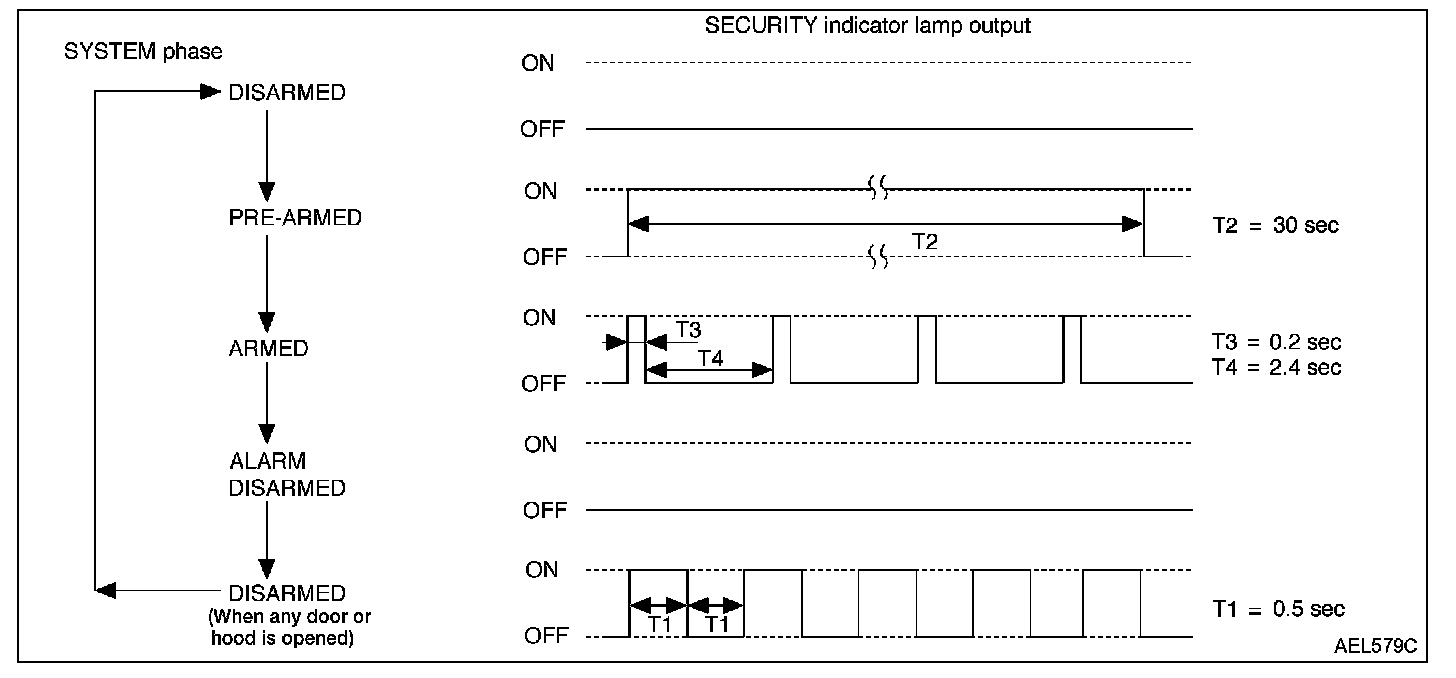

SECURITY Indicator Lamp Output:

1. Operation Flow

2. Setting the Vehicle Security System
Initial condition
1. Close all doors.
2. Close hood.

Disarmed phase
The vehicle security system is in the disarmed phase when any door(s) or hood is opened. The security indicator lamp blinks every second.

Pre-armed phase and armed phase
The vehicle security system turns into the "pre-armed" phase when hood and all doors are closed and the doors are locked by key or keyfob. (The security indicator lamp illuminates.)

After about 30 seconds, the system automatically shifts into the armed" phase (the system is set). (The security indicator lamp blinks every 2.6 seconds.)

3. Canceling the Set Vehicle Security System
When the doors are unlocked with the key or keyfob, the armed phase is canceled.

4. Activating the Alarm Operation of the Vehicle Security System
Make sure the system is in the armed phase. (The security indicator lamp blinks every 2.6 seconds.)

When the following operation 1) or 2) is performed, the horn and headlamps operate intermittently for about 50 seconds. (At the same time, the system disconnects the starting system circuit.)

1. Engine hood or any door is opened before unlocking door with key or keyfob.
2. Door is opened without first using key or keyfob.
