Operation CHARM
: Car repair manuals for everyone.
Home
>>
Nissan-Datsun
>>
2002
>>
Frontier XE King Cab 2WD V6-3.3L (VG33E)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Diagrams By Diagram Name
>>
BR Diagrams (Brake System)
BR Diagrams (Brake System)

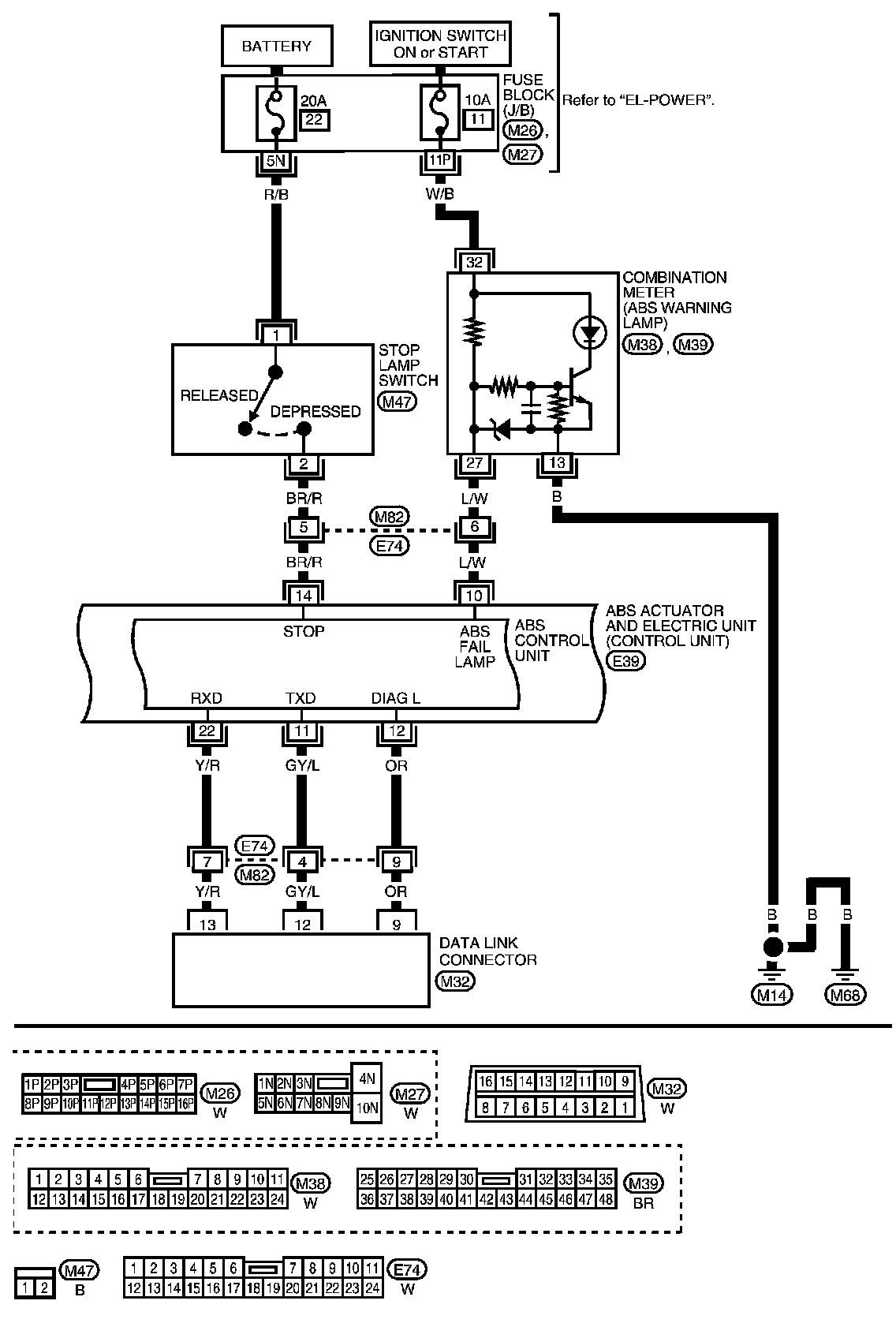

BR-ABS-10:
BR-ABS-03:
BR-ABS-04:
BR-ABS-05:
