Sunroof / Moonroof: Service and Repair

Part 1:

Part 2:

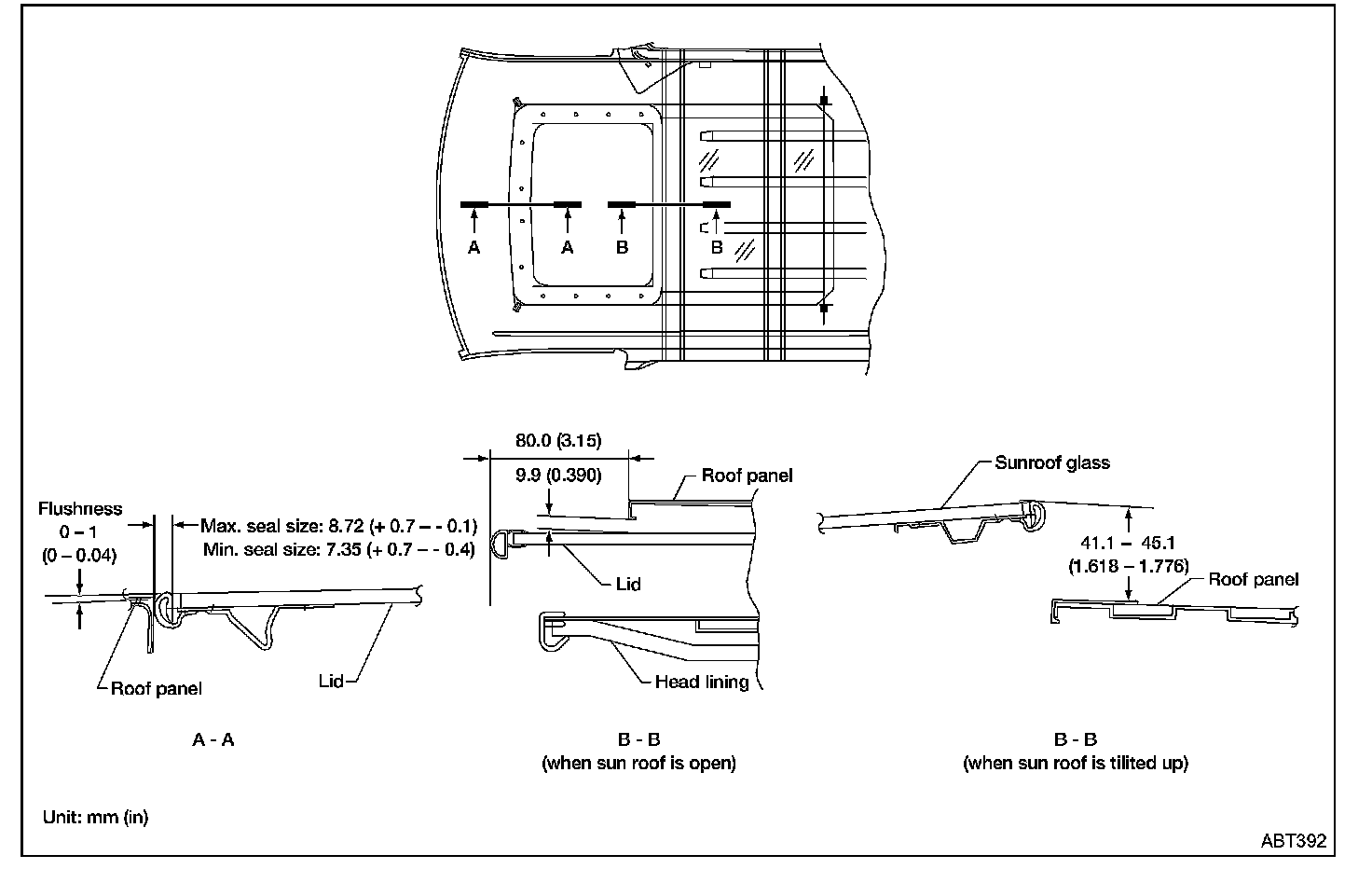

Removal and Installation
- After any adjustment, check sunroof operation and sunroof glass alignment.
- Handle finisher plate and sunroof glass with care so not to cause damage.
- It is desirable for easy installation to mark each point before removal.

NOTE: When the battery or sunroof motor harness connector is disconnected during service, the sunroof will not operate properly.

Procedure for resetting motor memory:
From any sunroof position (full open, partially open, closed, partially vented, and vented), push and hold the button in the forward position until the sunroof vents in the Full-Up position. This resets the sunroof motor memory and now the sunroof will operate correctly.

CAUTION: Always work with a helper.
