Home >> Nissan-Datsun >> 2002 >> Quest Minivan GLE V6-3.3L (VG33E) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Fuse Block

Fuse Block

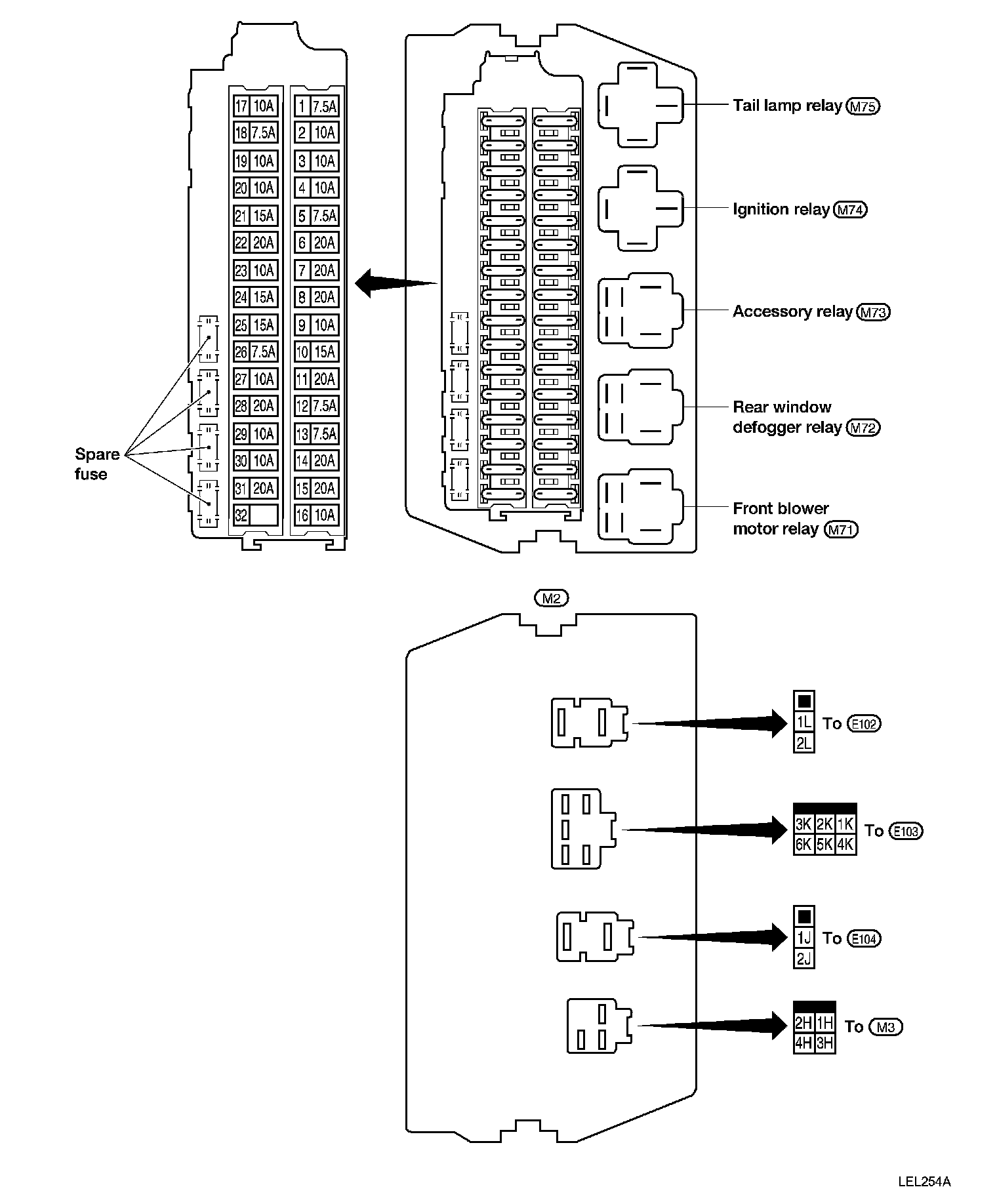

Fuse Block - Terminal Arrangement:
