Quest Minivan GLE V6-3.3L (VG33E)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Antilock Brakes / Traction Control Systems
>>
Wiring Diagram
Wiring Diagram

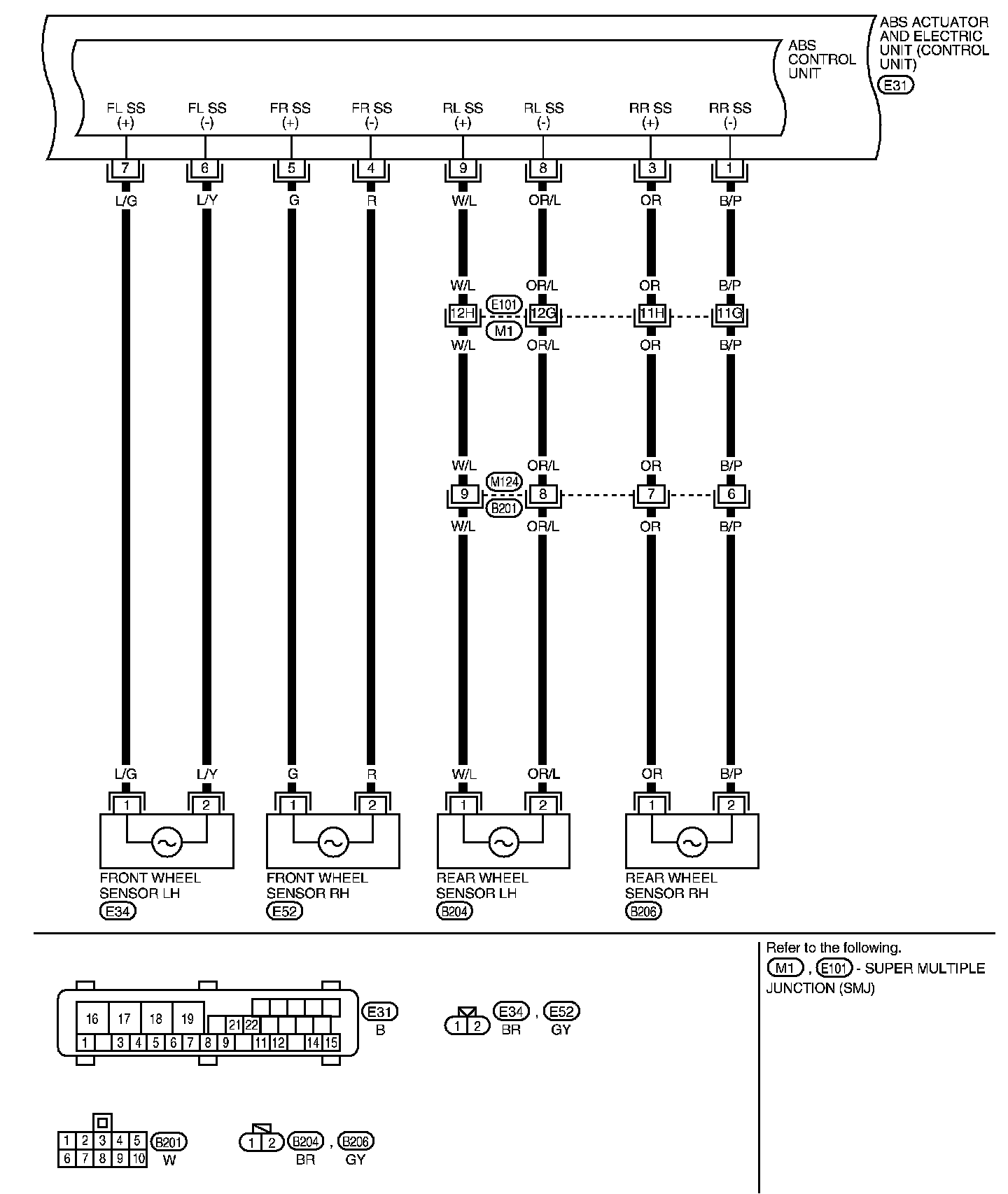

Wiring Diagram-ABS
BR-ABS-01:
BR-ABS-01
BR-ABS-02:
BR-ABS-02
BR-ABS-03:
BR-ABS-03
