Keyless Entry
>>
Keyless Entry Module
Keyless Entry Module

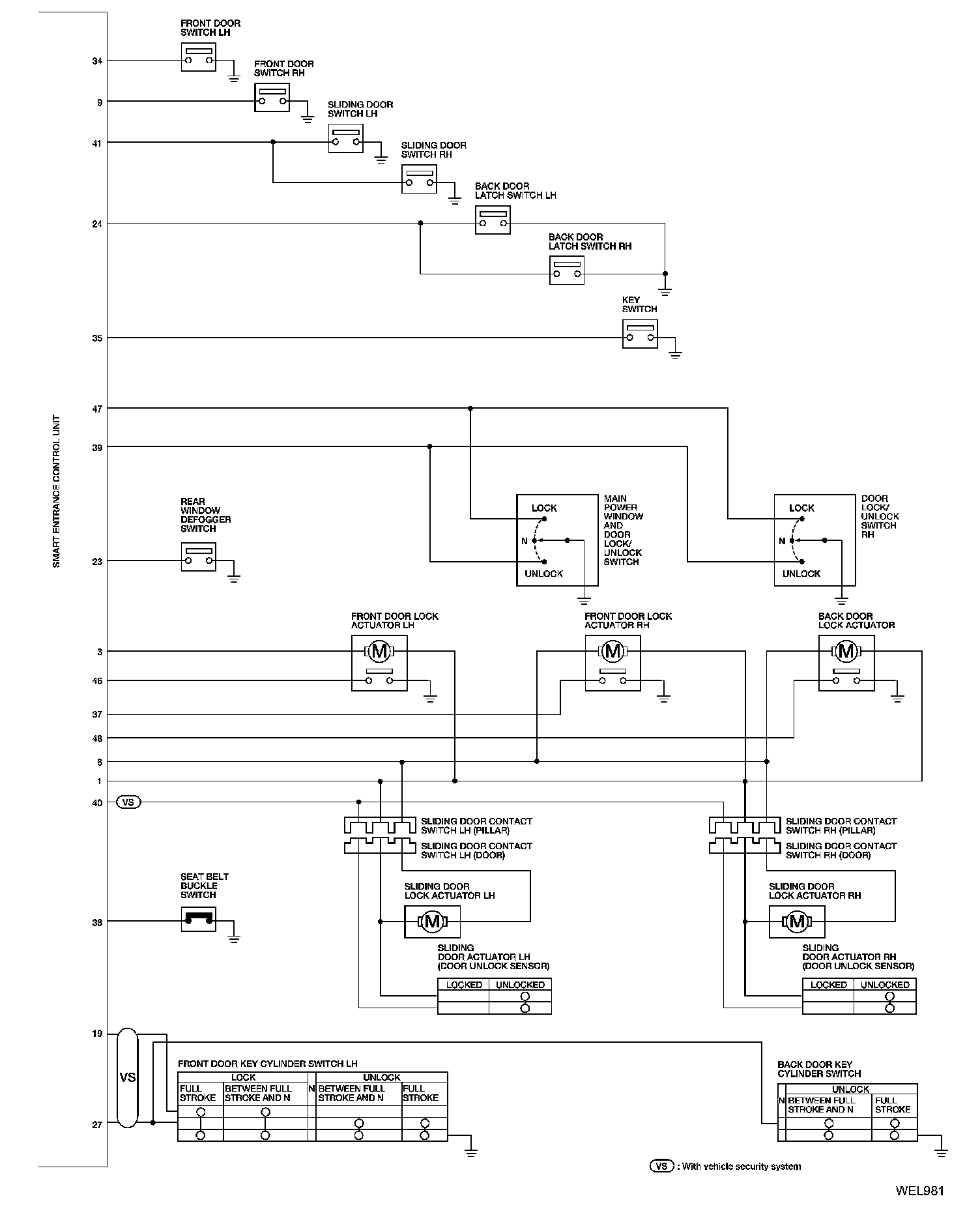

EL-KEYLES-Smart Entrance Control Unit Schematic Part 1:
EL-KEYLES-Smart Entrance Control Unit Schematic Part 2:
