Nissan-Datsun
>>
2002
>>
Quest Minivan GLE V6-3.3L (VG33E)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>
System Diagram
System Diagram

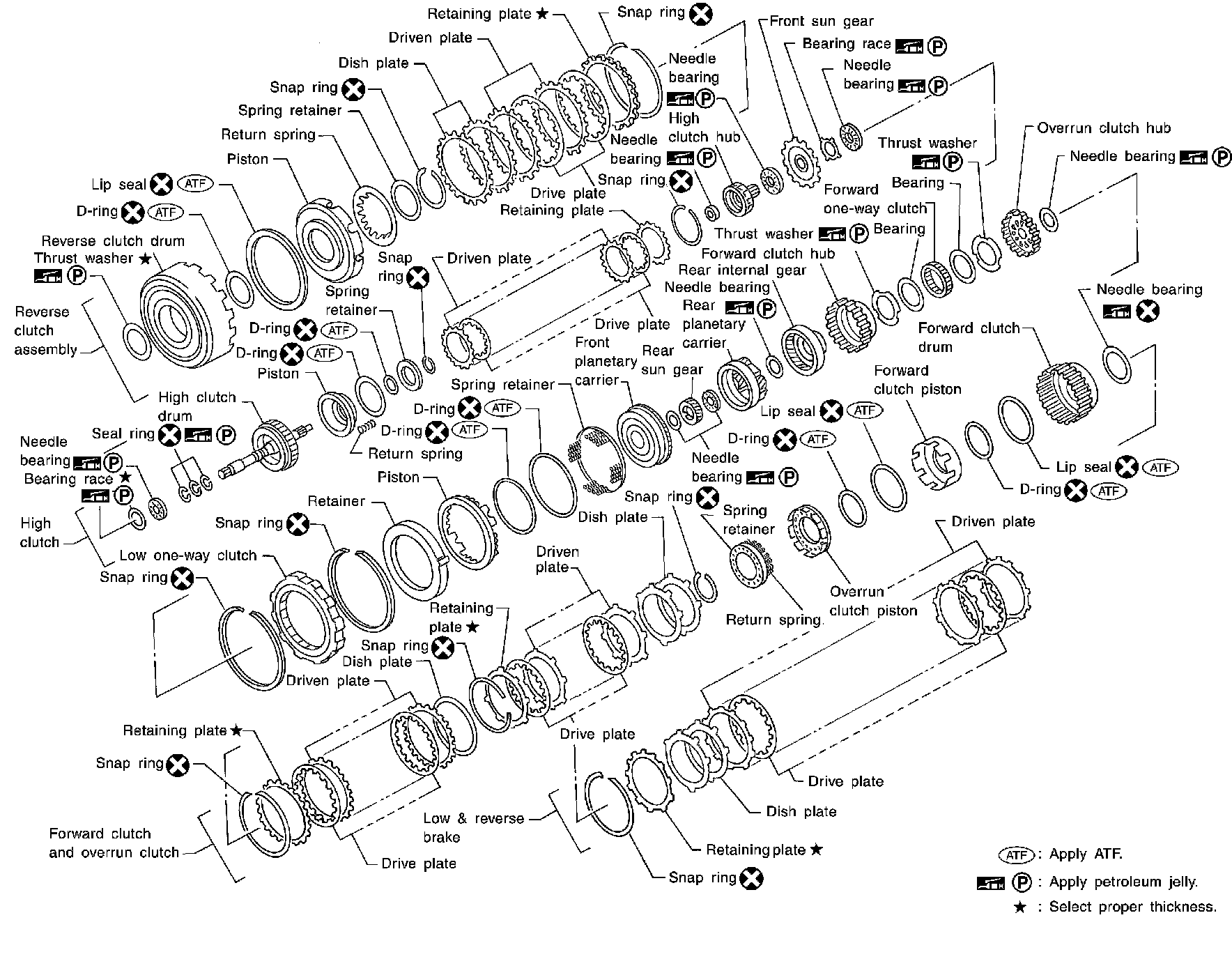

Overhaul / 1 Of 3:
Overhaul / 2 Of 3:
Overhaul / 3 Of 3:

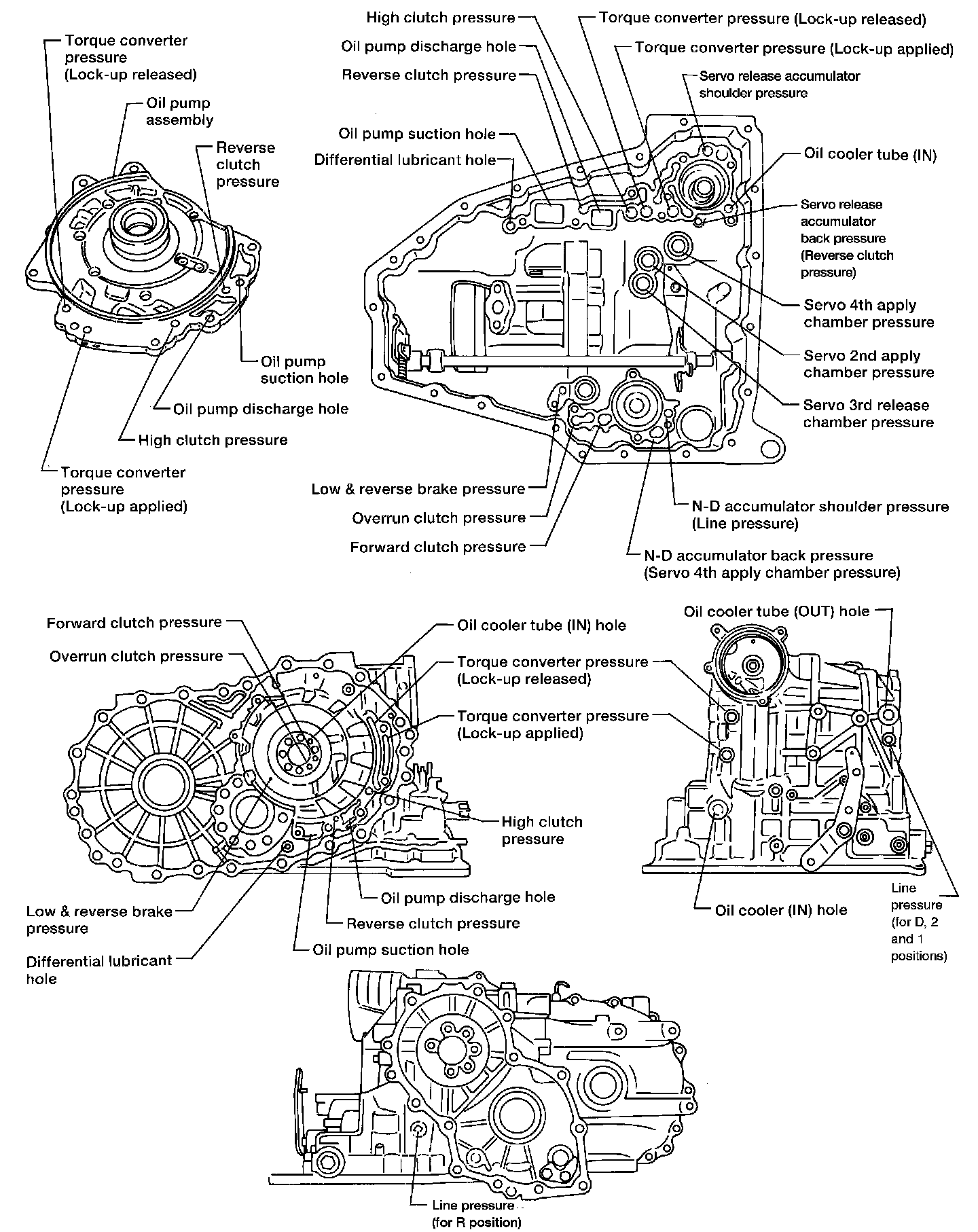

Overhaul / OIL CHANNEL:

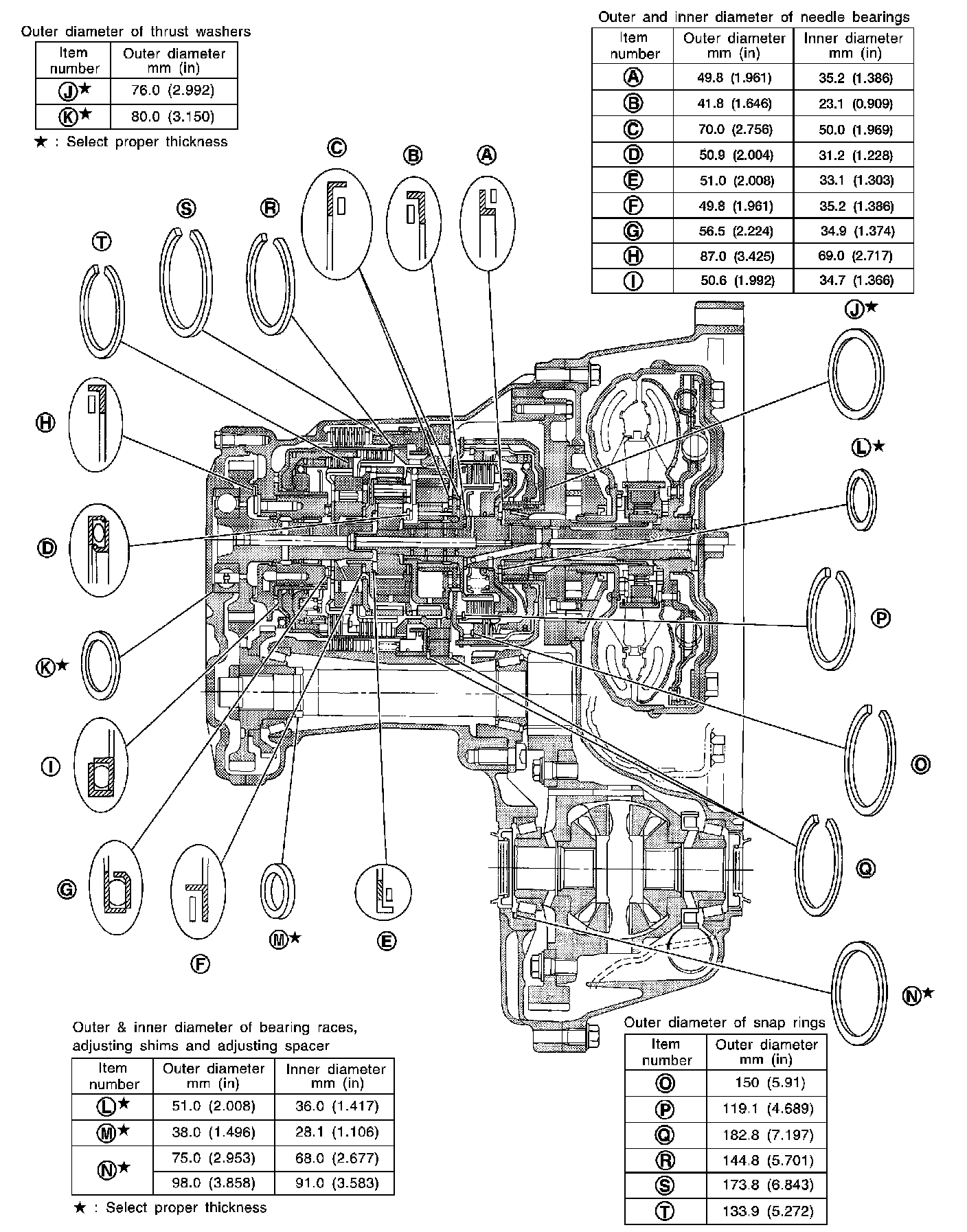

Locations of Adjusting Shims, Needle Bearings, Thrust Washers and Snap Rings:
