Axle Shaft Assembly
Axle Shaft Assembly
Drive Shaft:

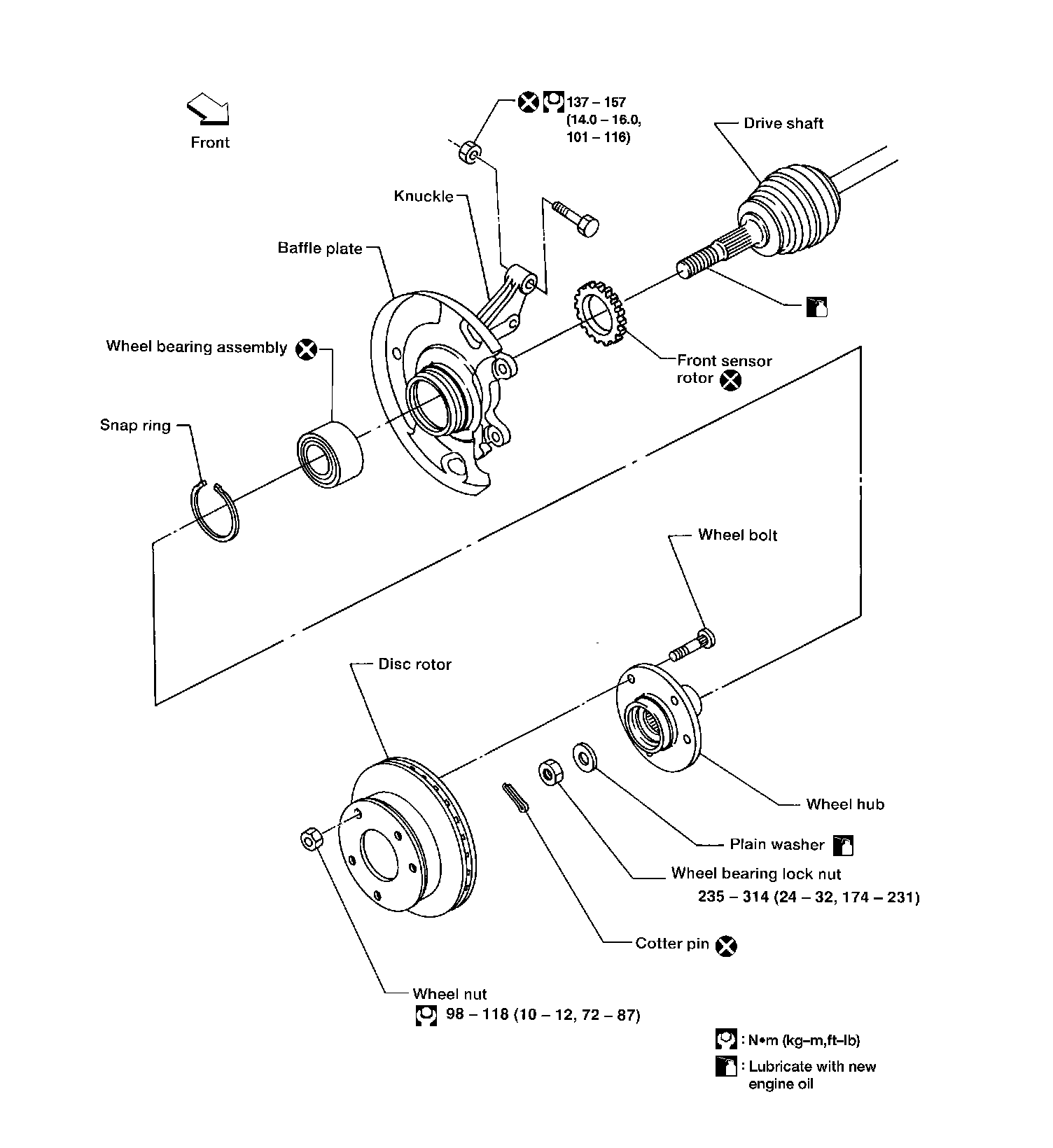

FRONT / Wheel Hub and Knuckle:

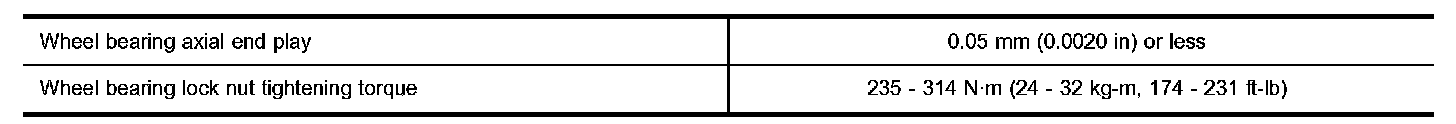

WHEEL BEARING (FRONT):

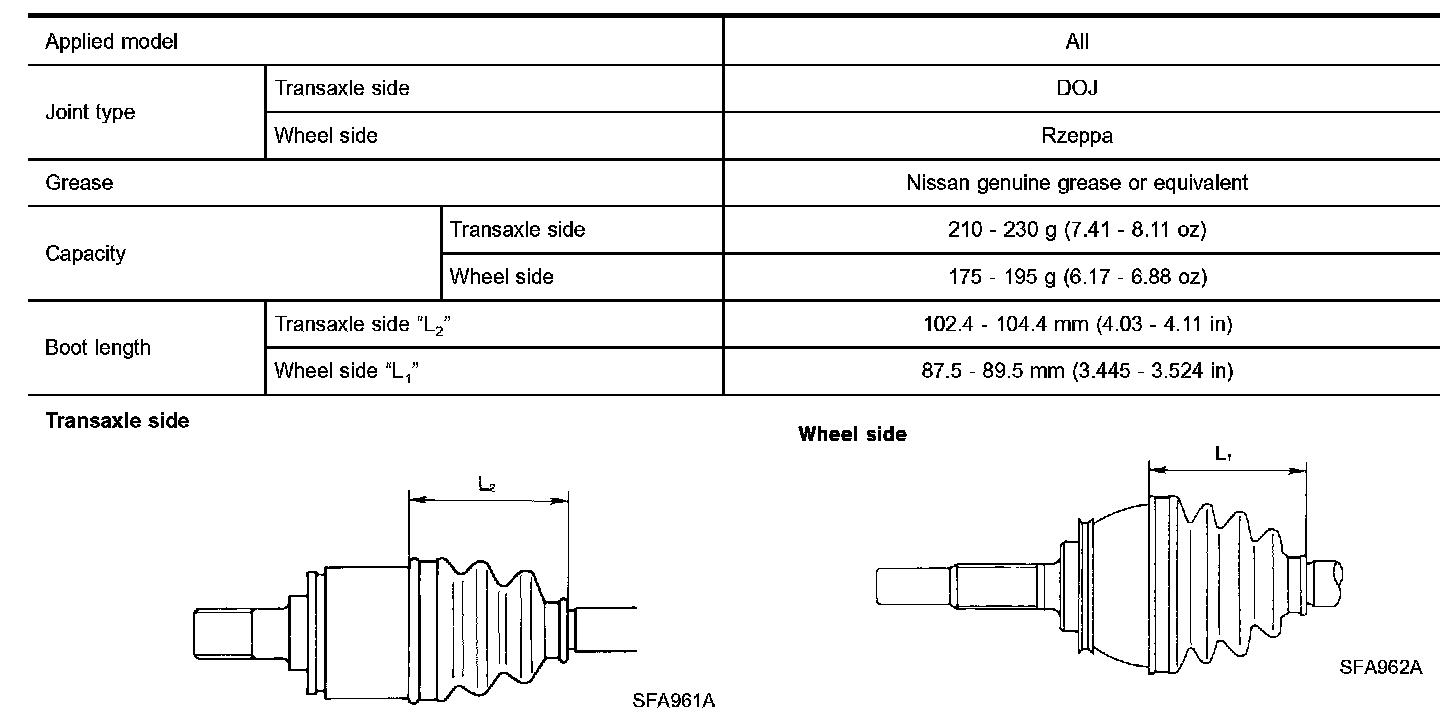

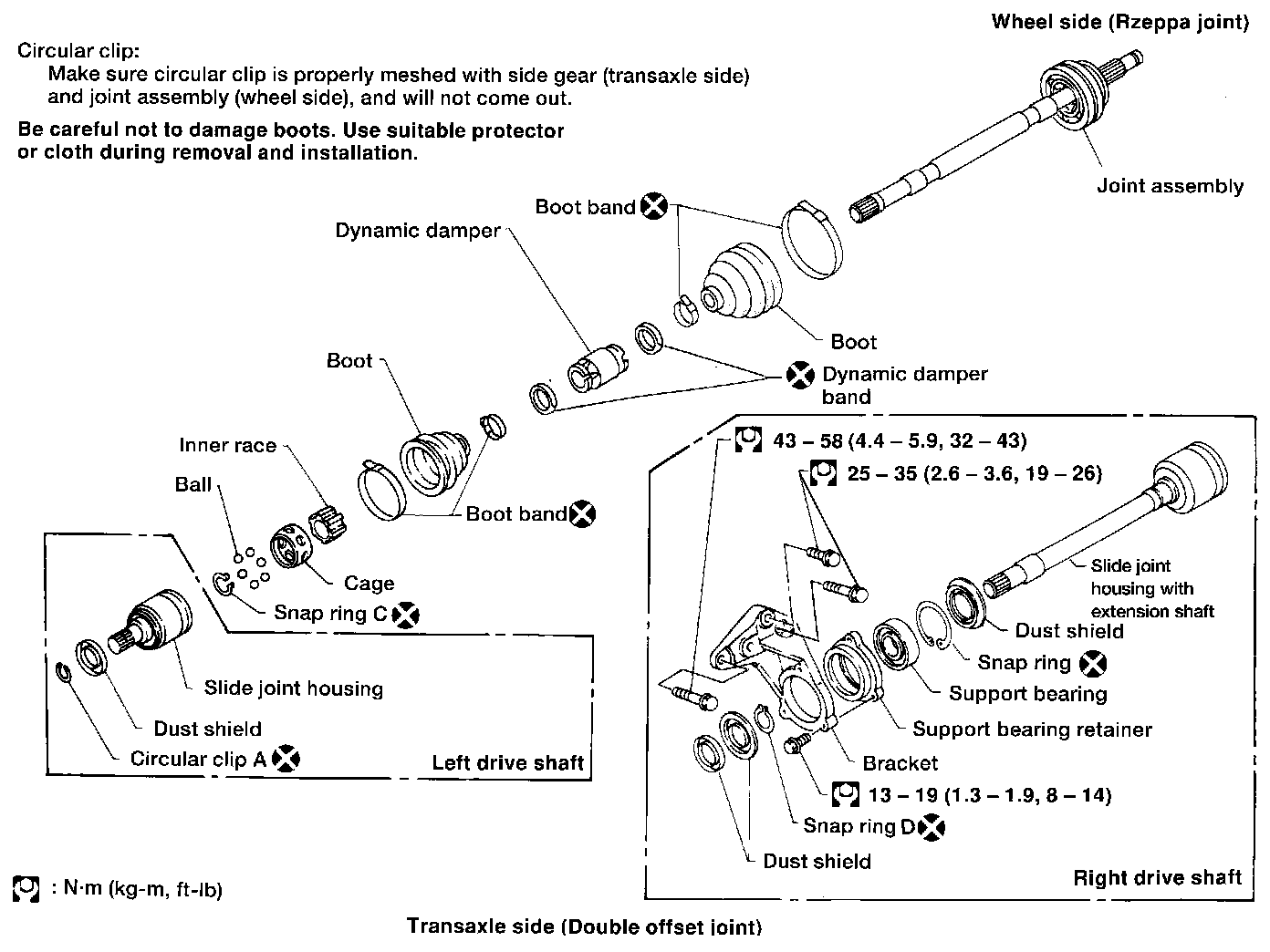

DRIVE SHAFT:

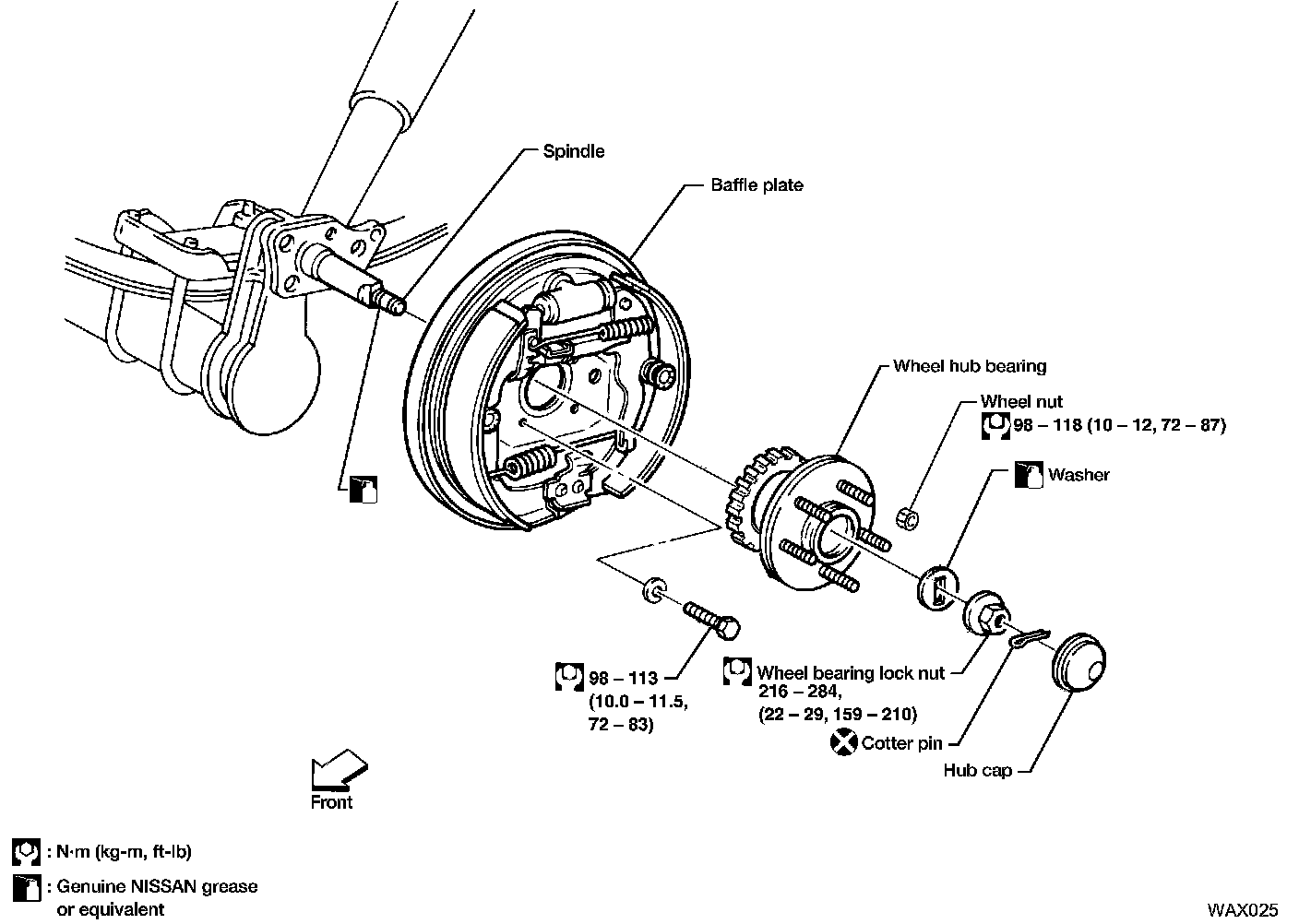

Rear Wheel Hub:

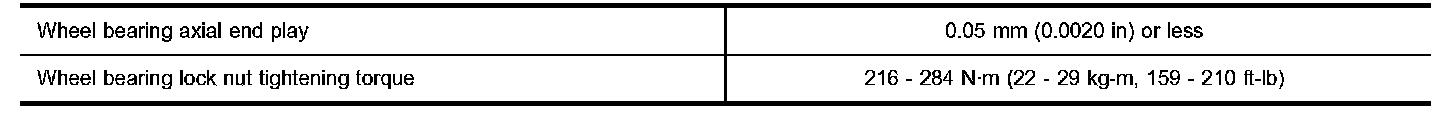

WHEEL BEARING (REAR):
