Engine Control Harness
Engine Control Harness

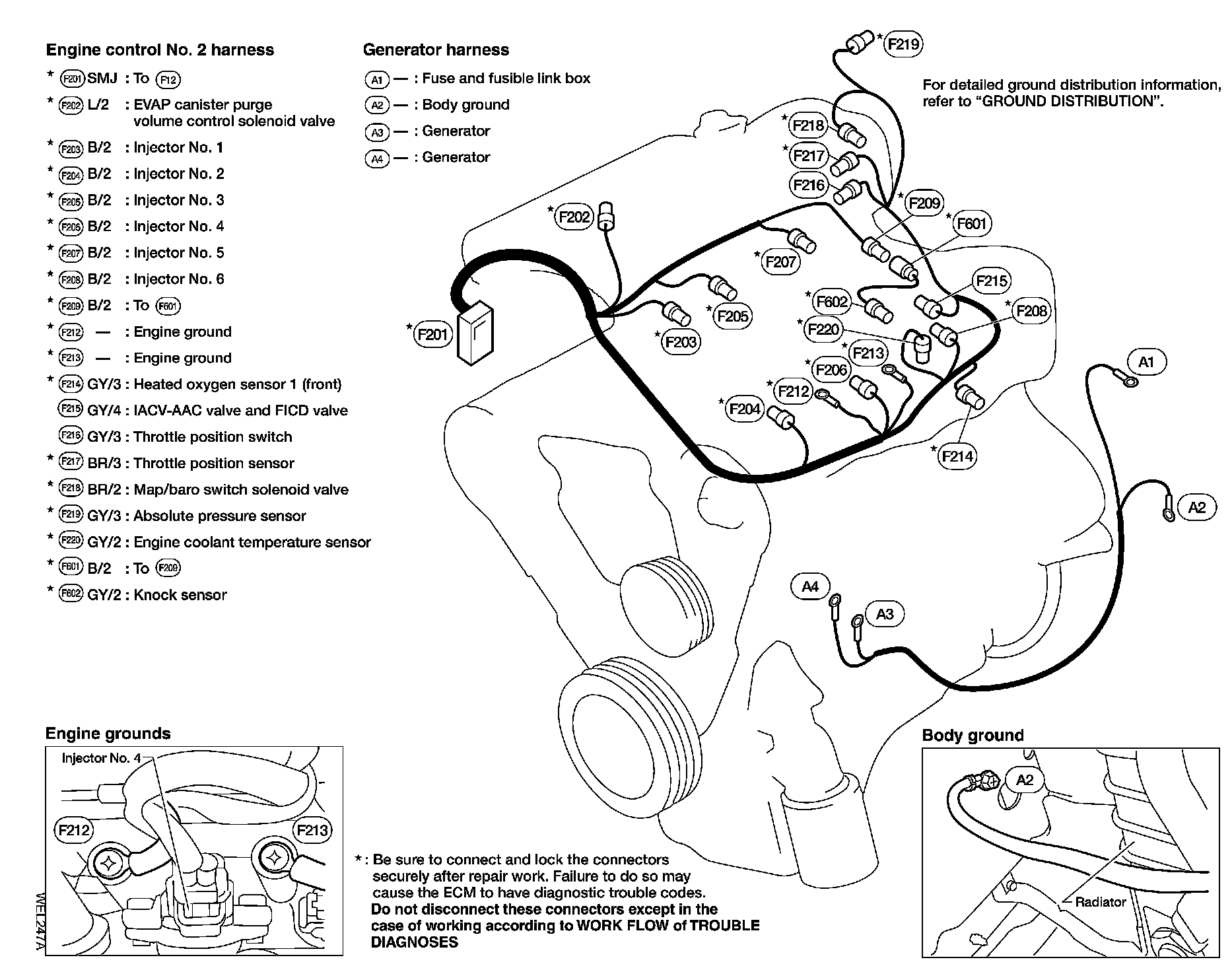

Engine Control Harness - Engine Compartment:
Engine Control Harness - Passenger Compartment:
Engine Control Sub Harness And Generator Harness:
Transmission Control Harness:
