Tach Filter: Testing and Inspection

Component Inspection




RESISTOR

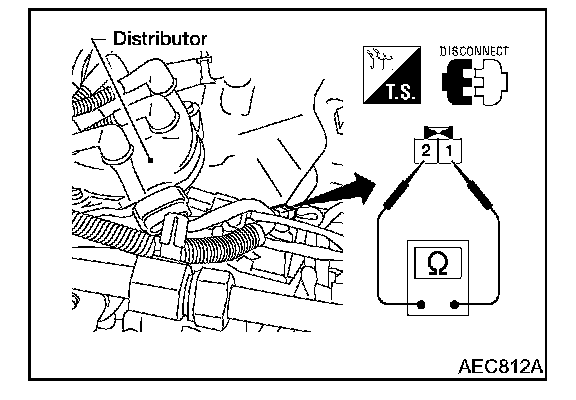

1. Disconnect resistor harness connector.
2. Check resistance between terminals 1 and 2
Resistance: Approximately 2.2 kOhm [at 25 °C (77 °F)]
If NG, replace resistor.
