Pinout Values and Diagnostic Parameters

TCM HARNESS CONNECTOR TERMINAL LAYOUT:

TCM Terminals and Reference Value
PREPARATION
Measure voltage between each terminal and terminal 25 or 48 by following "TCM INSPECTION TABLE".

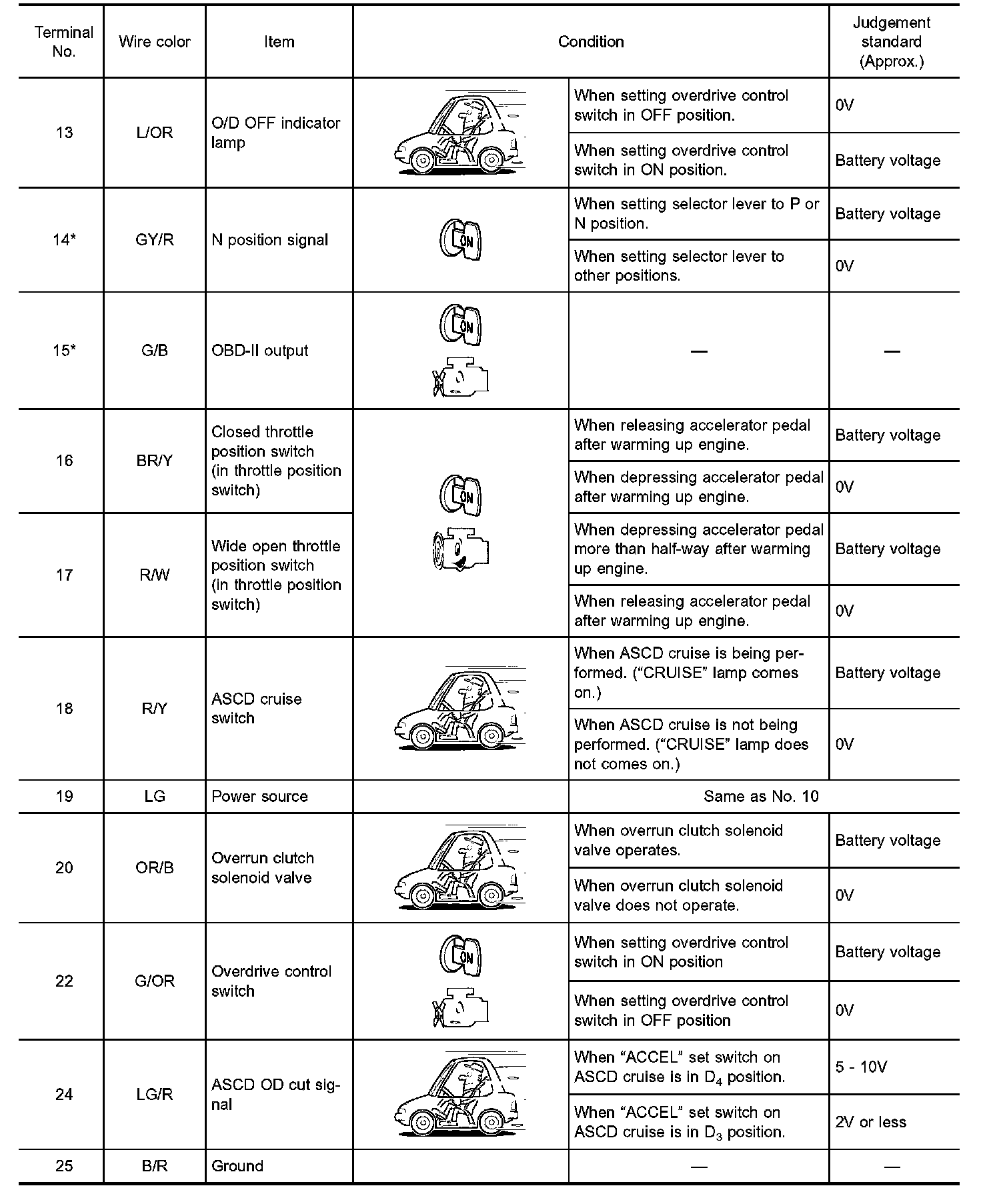

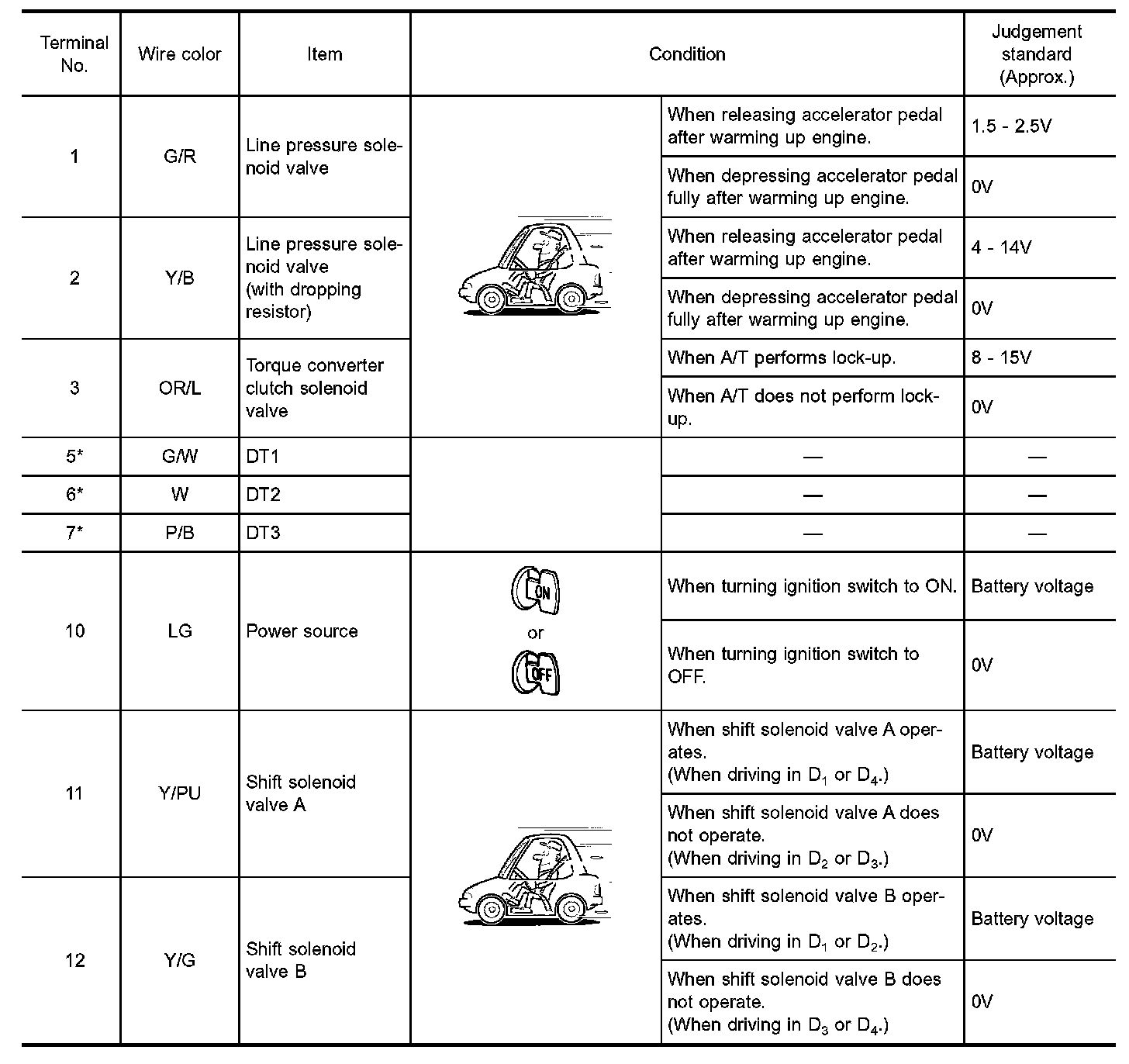

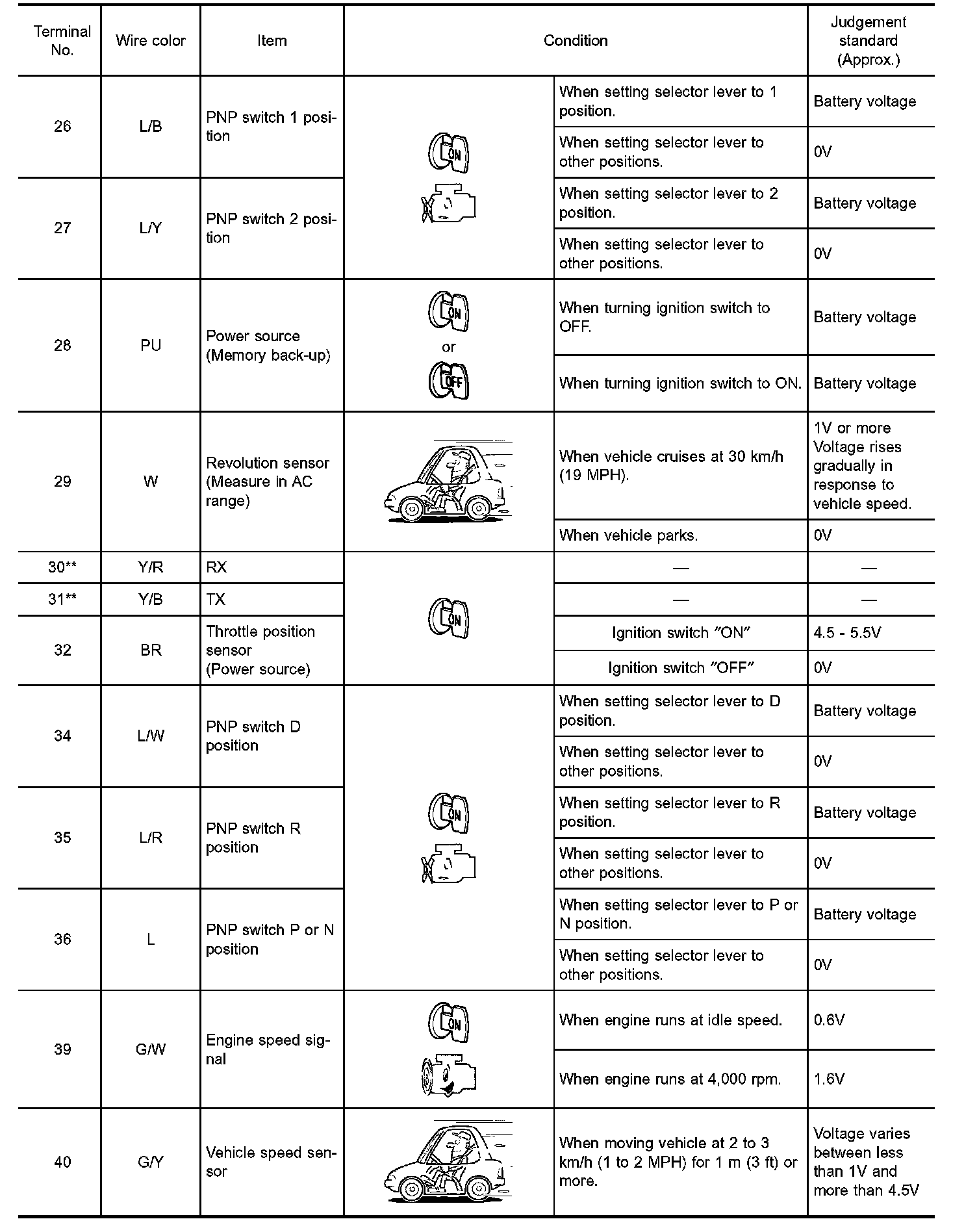

TCM INSPECTION TABLES
(Data are reference values.)
