P0117

DTC P0117 ECT SENSOR

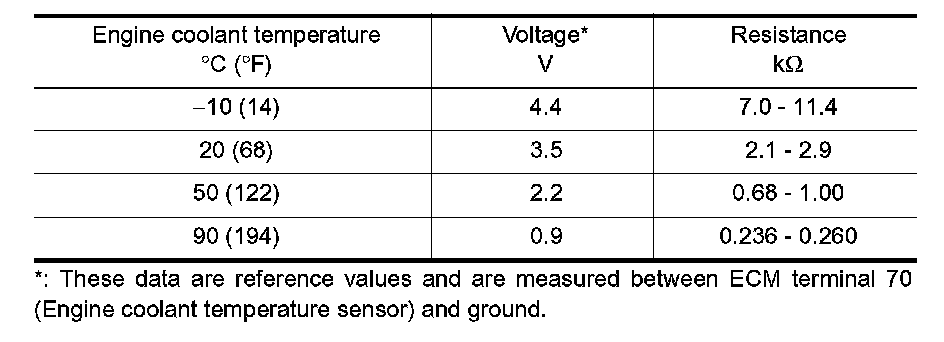

Reference Data:

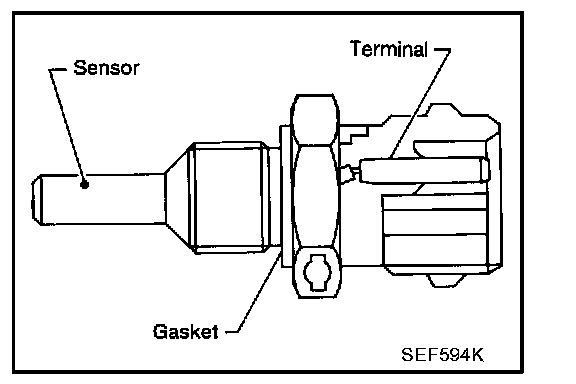

Component Description
The engine coolant temperature sensor is used to detect the engine coolant temperature. The sensor modifies a voltage signal from the ECM. The modified signal returns to the ECM as the engine coolant temperature input. The sensor uses a thermistor which is sensitive to the change in temperature. The electrical resistance of the thermistor decreases as temperature increases.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may lead to ECM's transistor damage. Use ground other than ECM, such as engine ground.

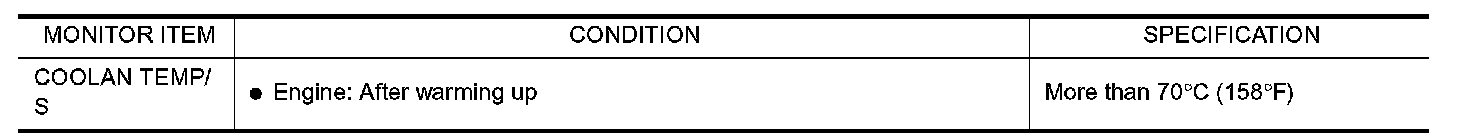

Consult-II Reference Value In Data Monitor Mode:

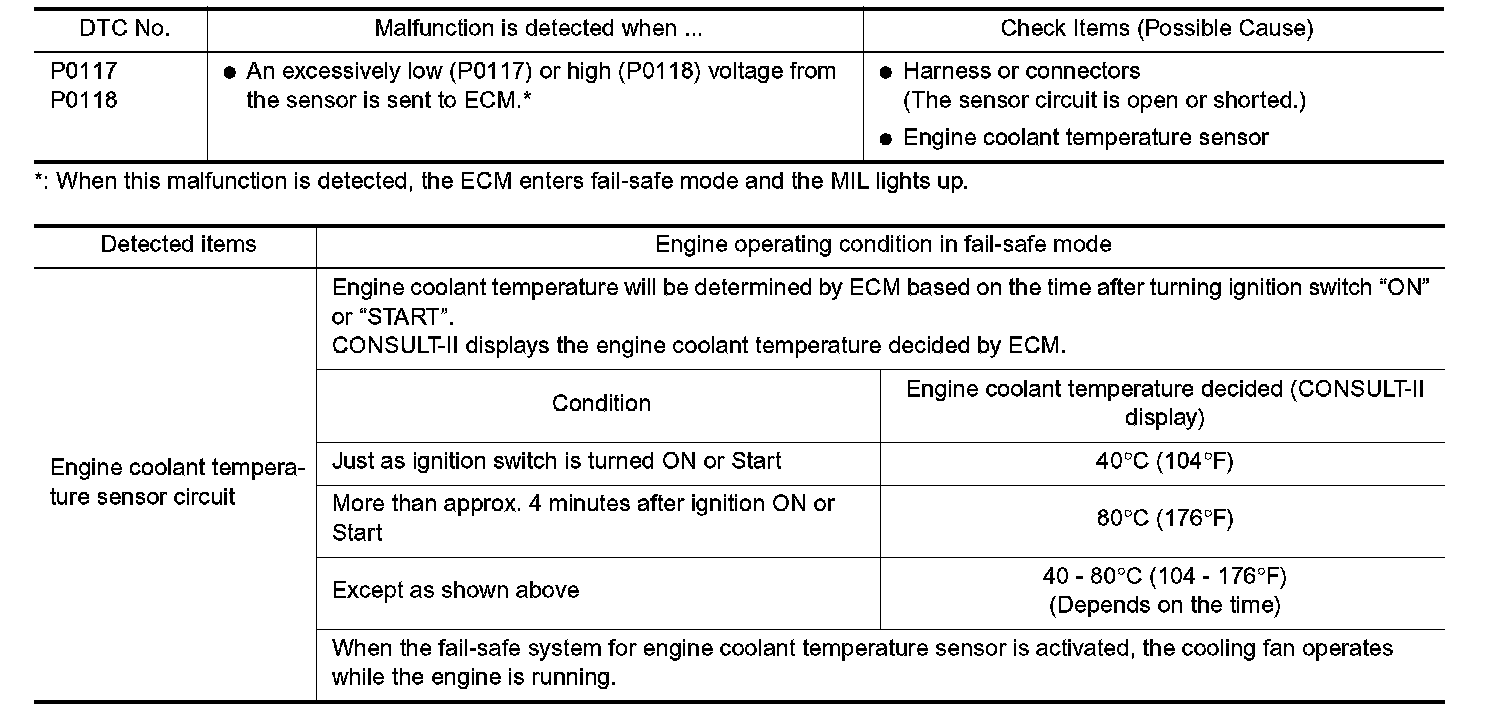

On Board Diagnosis Logic:

DTC Confirmation Procedure

NOTE: If "DTC Confirmation Procedure" has been previously conducted, always turn ignition switch "OFF" and wait at least 10 seconds before conducting the next test.

WITH CONSULT-II
1. Turn ignition switch "ON".




2. Select "DATA MONITOR" mode with CONSULT-II.
3. Wait at least 5 seconds.
4. If 1st trip DTC is detected, go to "Diagnostic Procedure" below.

WITH GST
Follow the procedure "With CONSULT-II" above.

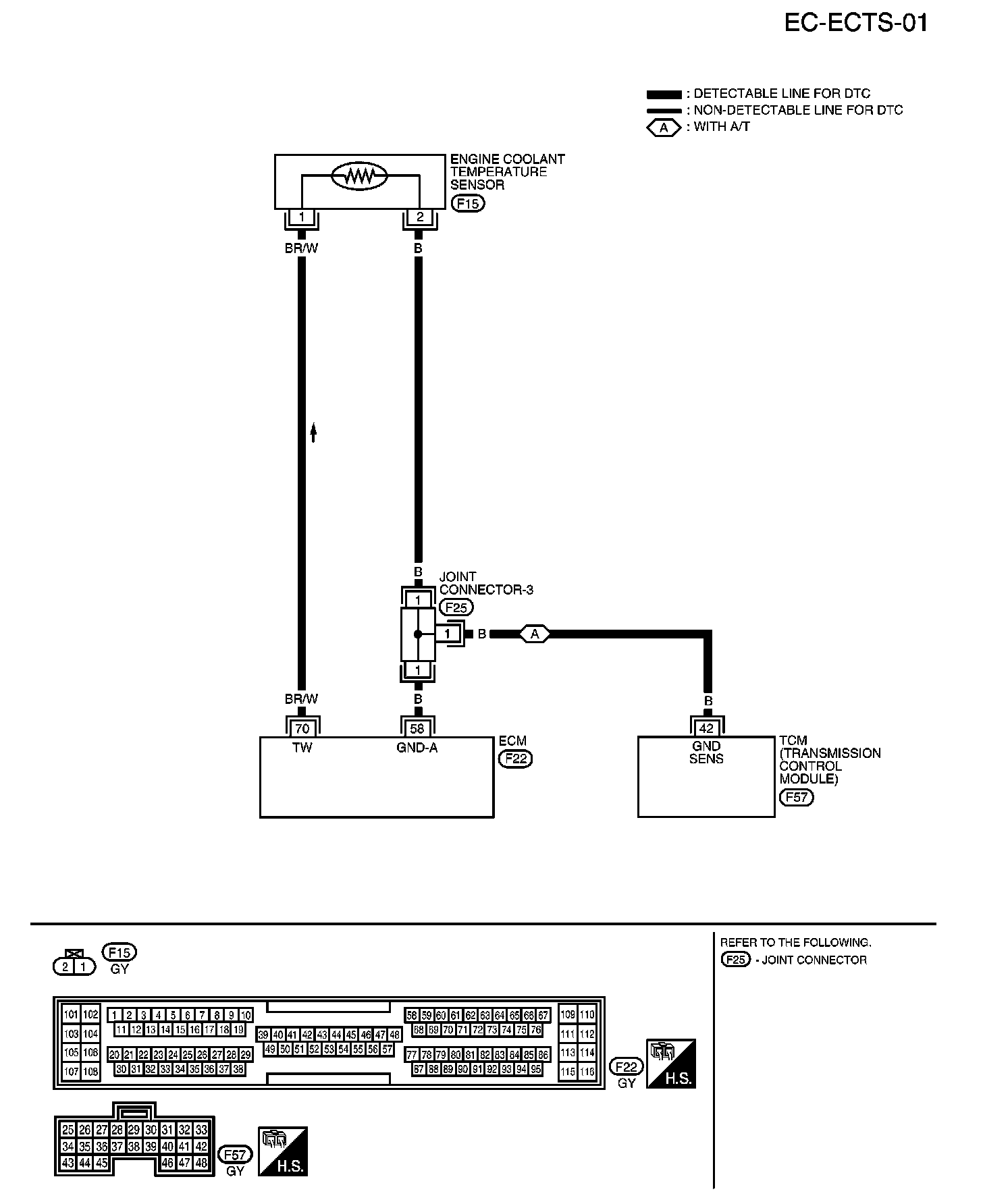

EC-ECTS-01:

Wiring Diagram

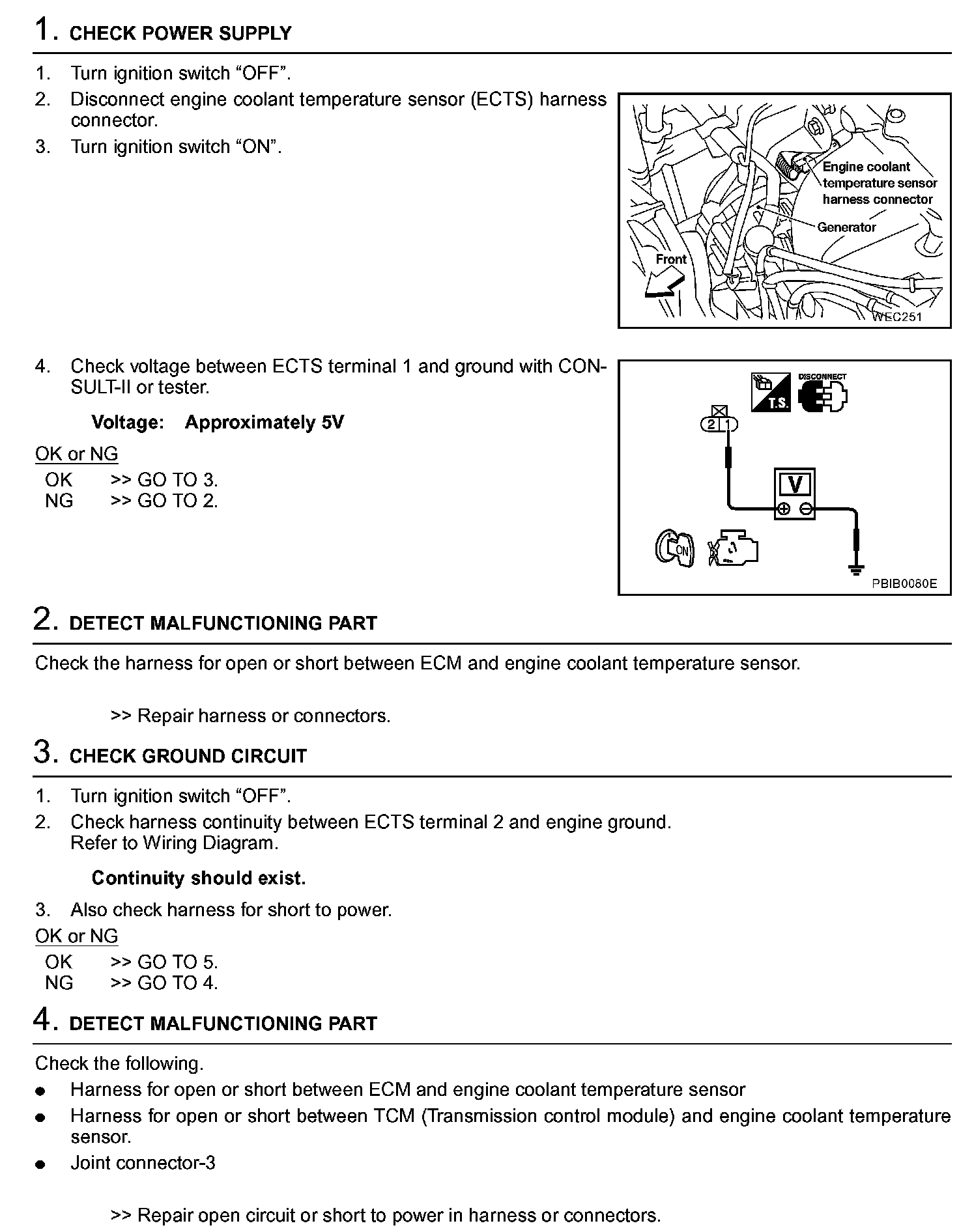

Diagnostic Procedure Step 1 - 4:

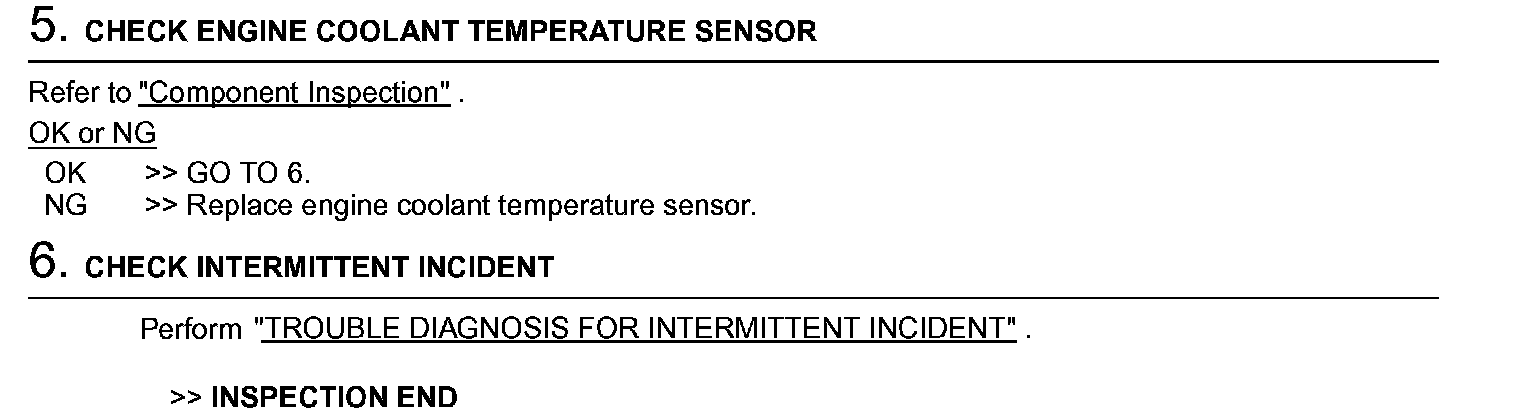

Diagnostic Procedure Step 5 - 6:

Diagnostic Procedure

Component Inspection

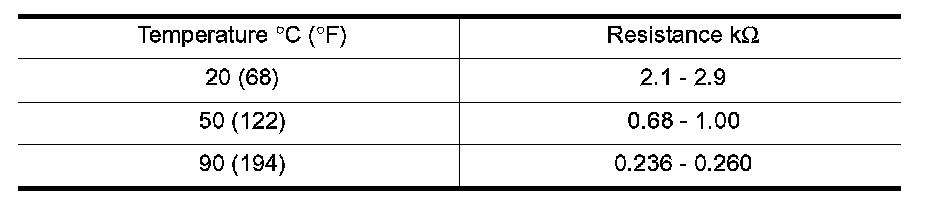

Reference Data:

ENGINE COOLANT TEMPERATURE SENSOR

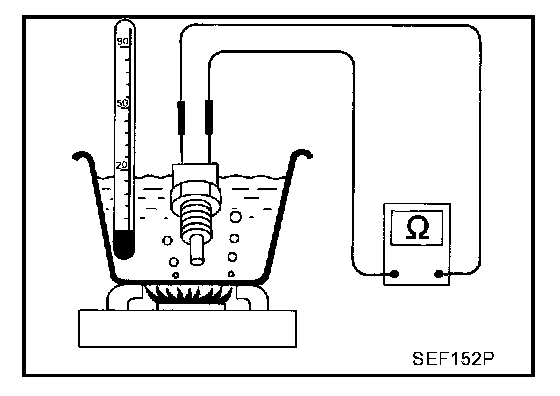

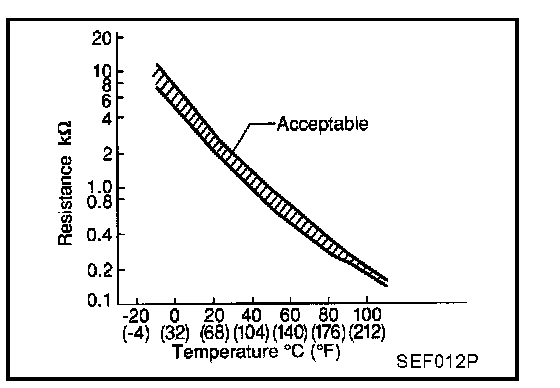

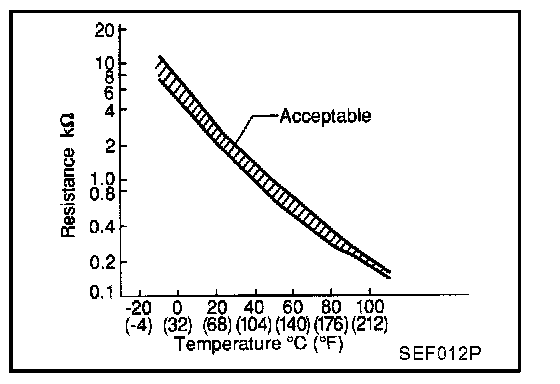

Check resistance as shown in the figure.

If NG, replace engine coolant temperature sensor.

Removal and Installation

ENGINE COOLANT TEMPERATURE SENSOR
Refer to Engine/Diagrams: Outer Component Parts
