P0181

DTC P0181 FTT SENSOR

Reference Data:

Component Description
The fuel tank temperature sensor is used to detect the fuel temperature inside the fuel tank. The sensor modifies a voltage signal from the ECM. The modified signal returns to the ECM as the fuel temperature input. The sensor uses a thermistor which is sensitive to the change in temperature. The electrical resistance of the thermistor decreases as temperature increases.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may lead to ECM's transistor damage. Use ground other than ECM, such as engine ground.

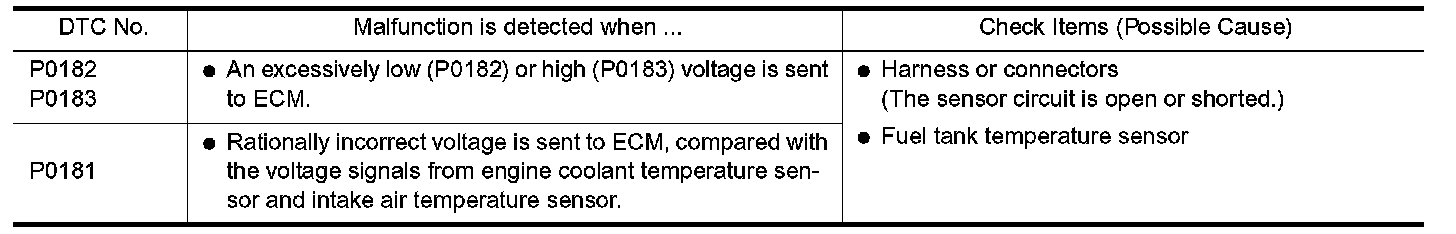

On Board Diagnosis Logic:

DTC Confirmation Procedure

NOTE: If "DTC Confirmation Procedure" has been previously conducted, always turn ignition switch "OFF" and wait at least 10 seconds before conducting the next test.

WITH CONSULT-II
1. Turn ignition switch "ON".

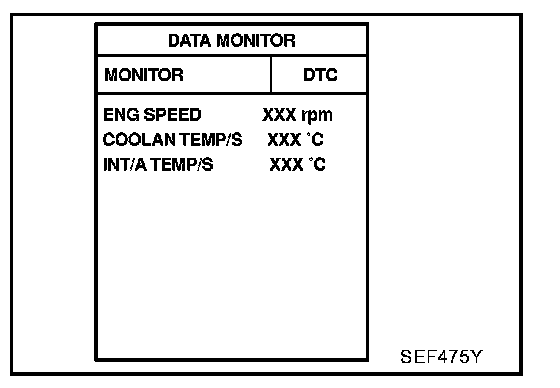

2. Select "DATA MONITOR" mode with CONSULT-II.
3. Wait at least 10 seconds.
If 1st trip DTC is detected, go to "Diagnostic Procedure" below.
If the result is OK, go to following step.
4. Check "COOLAN TEMP/S" signal.
If the signal is less than 50 °C (122 °F), the result will be OK.
If the signal is above 50 °C (122 °F), go to the following step.
5. Cool engine down until "COOLAN TEMP/S" signal is less than 50 °C (122 °F).
6. Wait at least 10 seconds.
7. If 1st trip DTC is detected, go to "Diagnostic Procedure" below.

WITH GST
Follow the procedure "With CONSULT-II" above.

EC-FTTS-01:

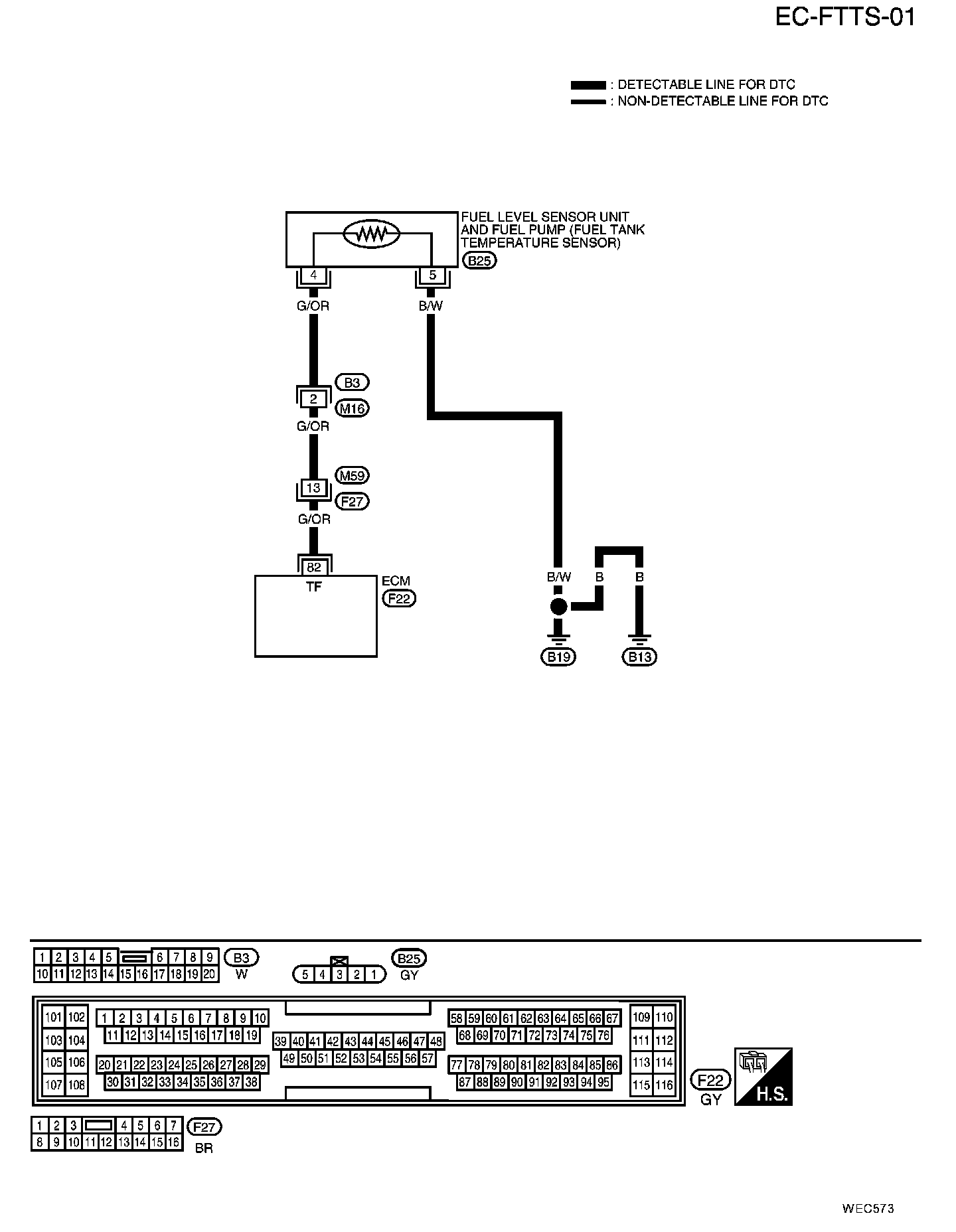

Wiring Diagram

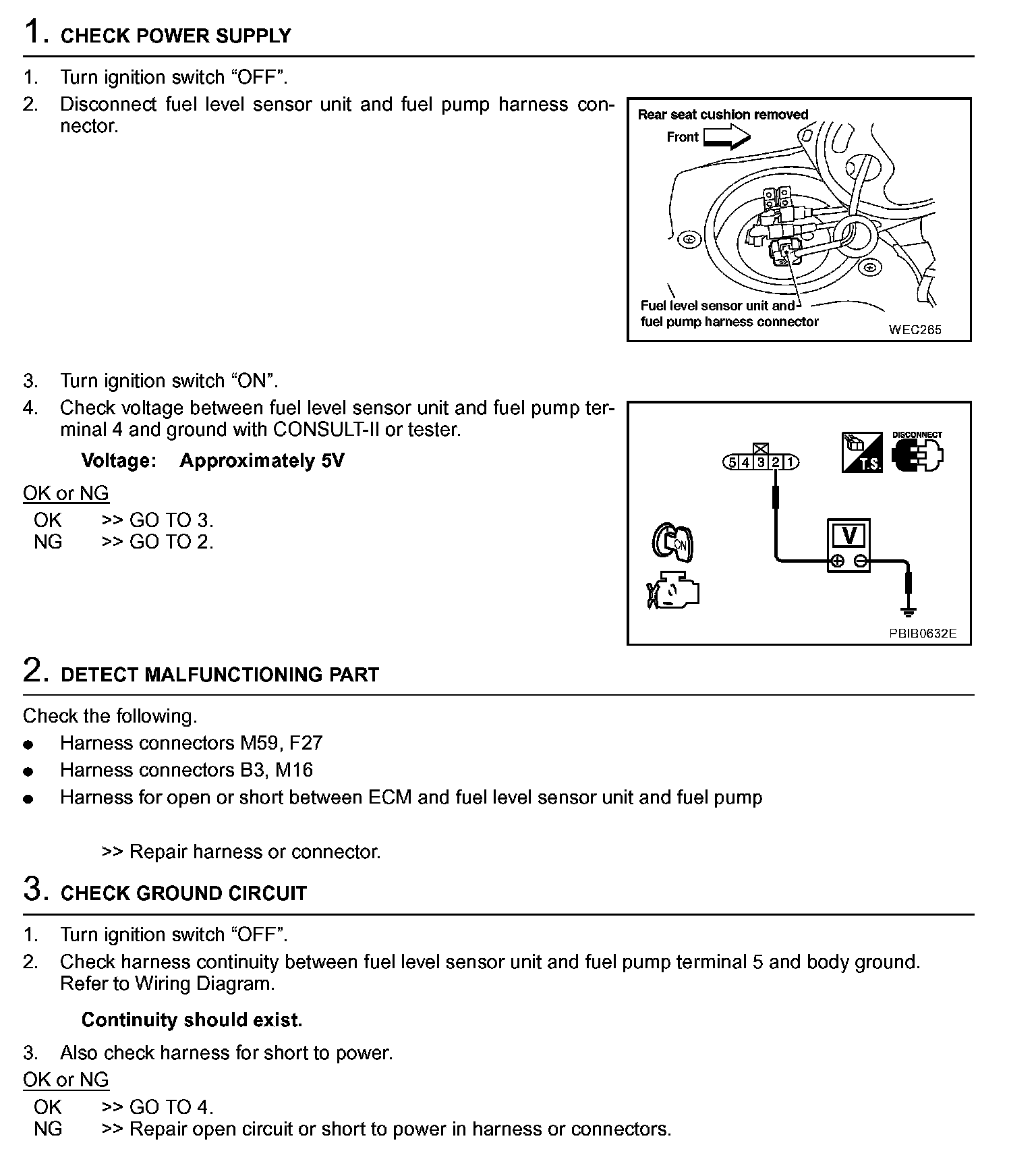

Diagnostic Procedure Step 1 - 3:

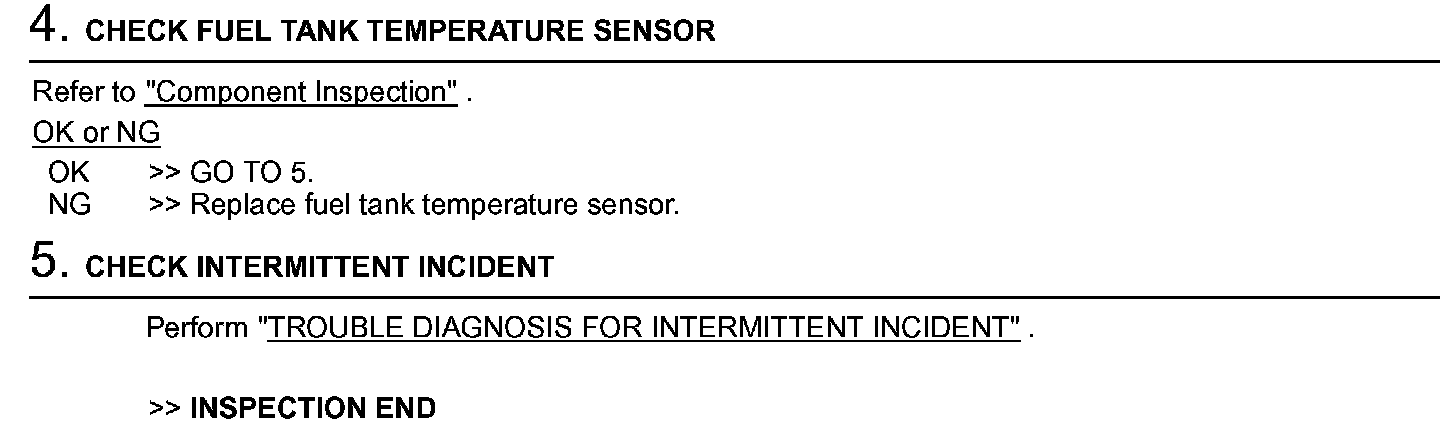

Diagnostic Procedure Step 4 - 5:

Diagnostic Procedure

Component Inspection







FUEL TANK TEMPERATURE SENSOR

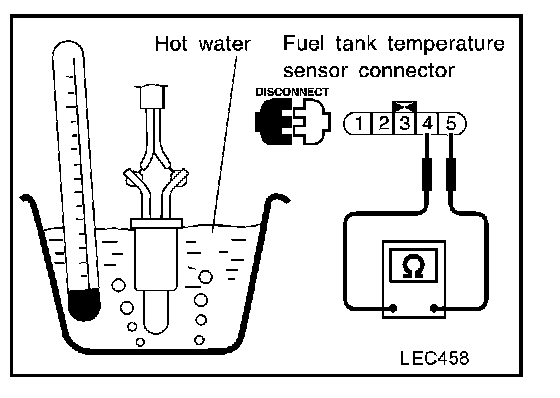

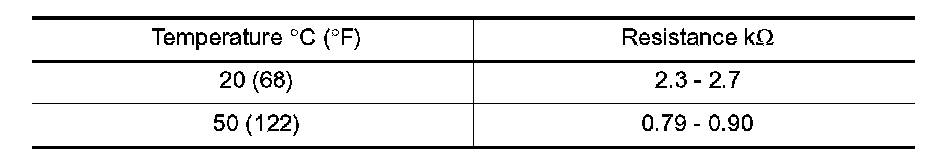

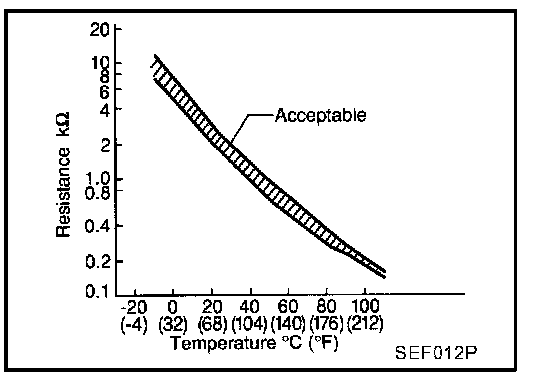

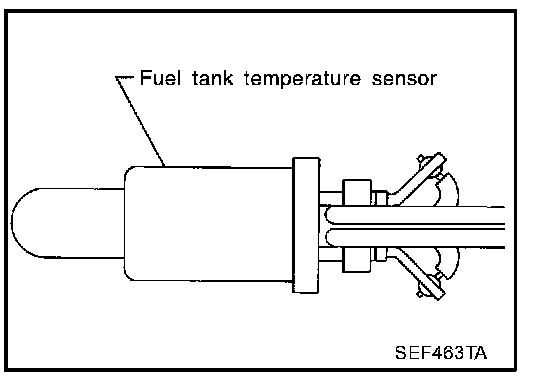

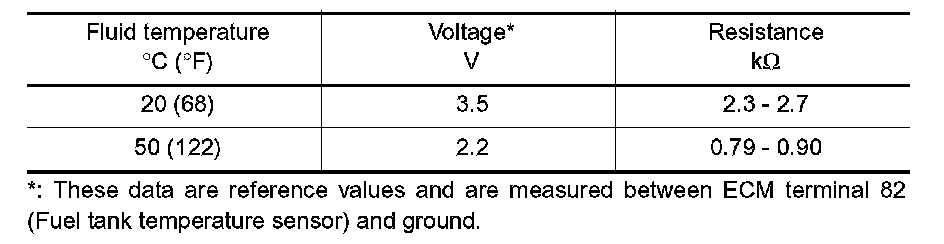

Check resistance by heating with hot water or heat gun as shown in the figure.

If NG, replace fuel tank temperature sensor.
