Diagnostic Procedure 7

Step 1:

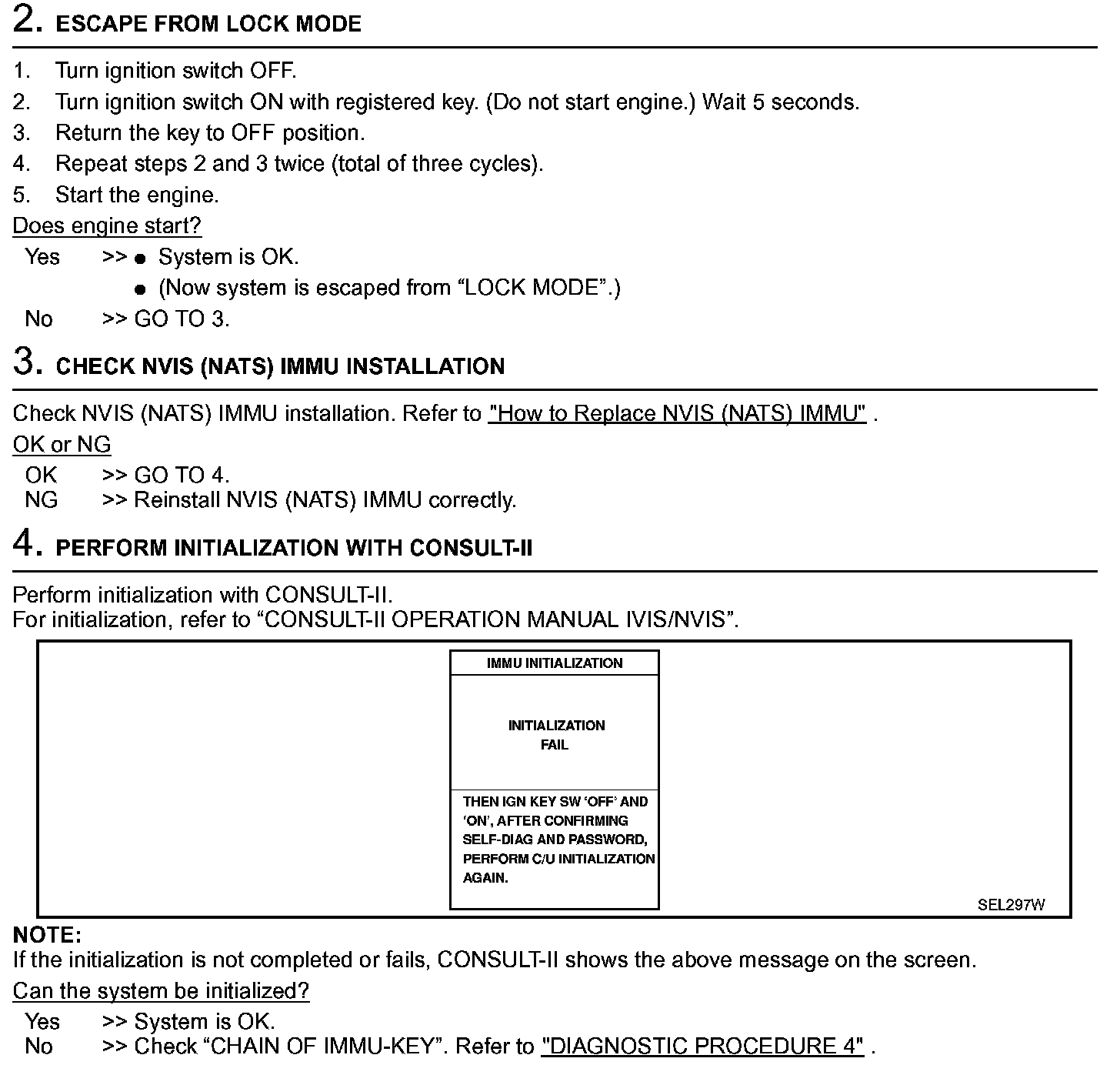

Step 2 - 4:




Self-diagnostic results: "LOCK MODE" displayed on CONSULT-II screen
