Sentra GXE L4-1.8L (QG18DE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Sensors
Sensors

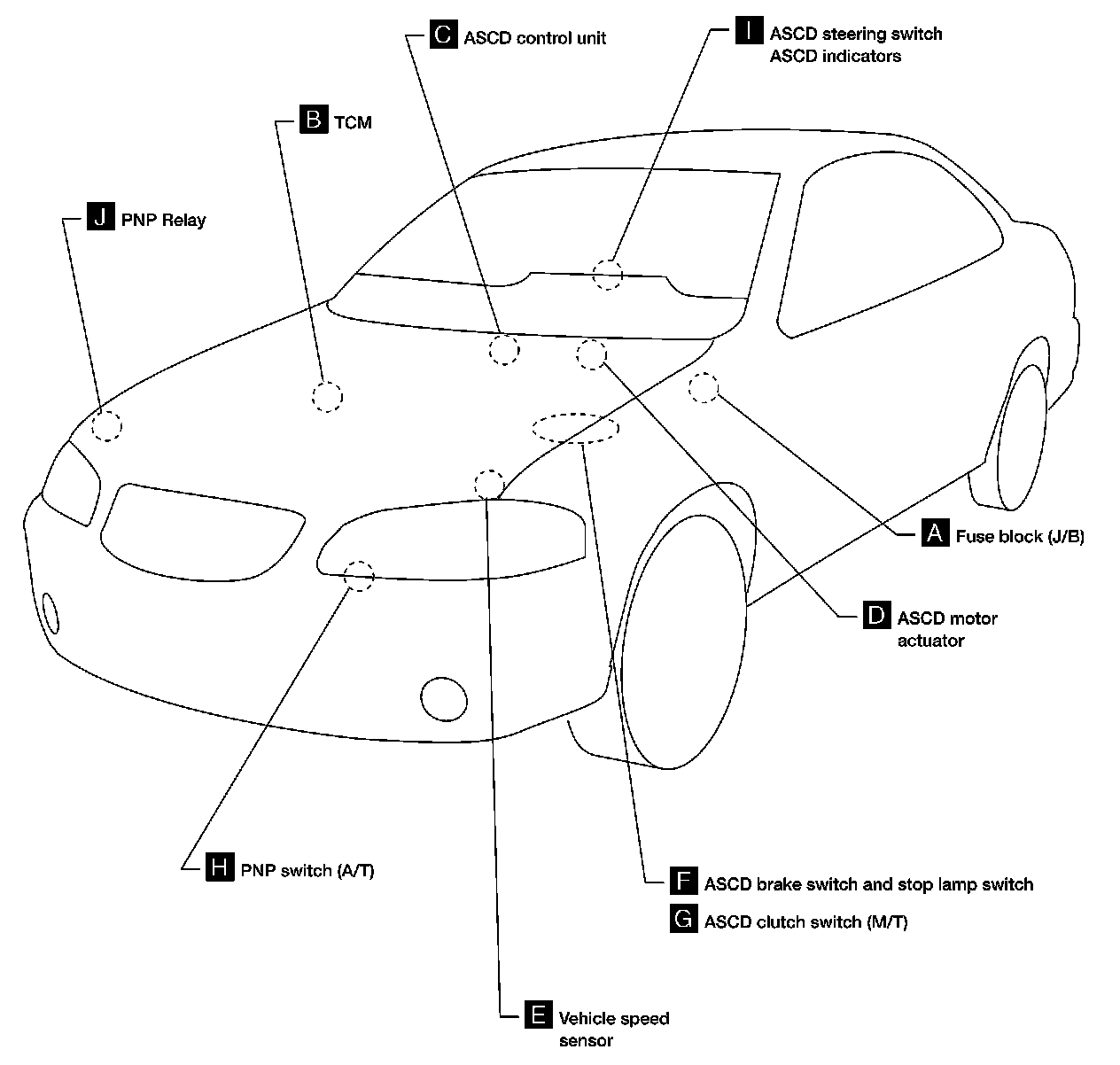

Component Locations Overall View:

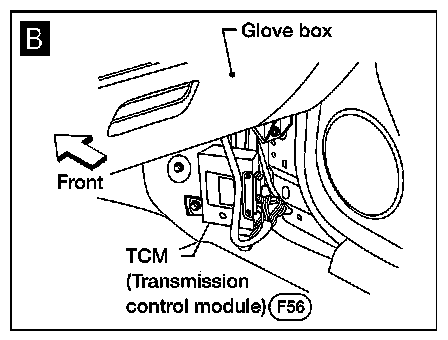

Component View B:

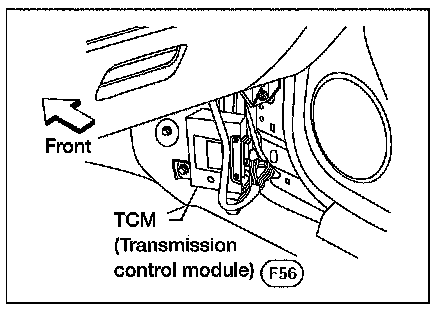

TCM:
